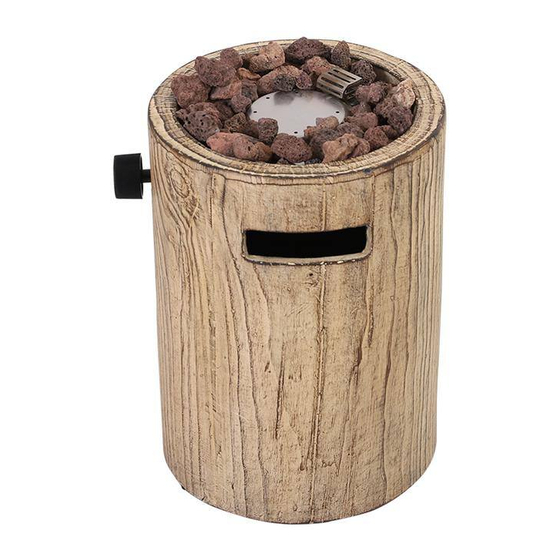

PHI VILLA E02GS036 Use And Care Manual

Hide thumbs

page of 12

/ 12
Bookmarks

Quick Links

Download this manual

Life Gets Better With

USE AND CARE GUIDE

E02GS036

MODEL#: F180040-B3

ANS Z21.97 CSA 2.41-2017

Outdoor Decorative Gas Appliances

Questions, problems, missing parts? Before returning to the store,

please contact our Customer Service

service@alphamarts.com

THANK YOU

We appreciate the trust and conﬁdence you have placed in PHI VILLA through the purchase of our product. We strive to continually create quality

products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

Thank you for choosing PHI VILLA!

Need help?

Do you have a question about the E02GS036 and is the answer not in the manual?

Questions and answers

Summary of Contents for PHI VILLA E02GS036

Page 1 THANK YOU We appreciate the trust and conﬁdence you have placed in PHI VILLA through the purchase of our product. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Page 2 Table of Contents 8-10 Table of Contents Operation Instructions Warnings & Important Safety Information Care and Maintenance Package Contents Warranty Assembly instructions Maximum inlet supply pressure: 13 inch w.c. (3.24 kPa) Minimum inlet supply pressure: 8 inch w.c. (1.99 kPa) WARNING: For Outdoor Use Only.
Page 3 IMPORTANT SAFETY INFORMATION 1. This appliance is for outdoor use only, and should NOT be used in a building, garage or any other enclosed area. 2. DO NOT operate, light or use this appliance within ten feet (3.05 m) of walls, structures or buildings. 3.
Page 4 IMPORTANT SAFETY INFORMATION j. A ﬁre causing serious injury or damage to property may occur if the above is not followed exactly. 16. Your outdoor ﬁrepit has been checked at all factory connections for leaks. Recheck all connections as described in the “Operating Instructions”...
Page 5 47. Use only the regulator assembly provided. Use only the replacement regulator assembly speciﬁed by Use only the burner provided. Use only the replacement burner speciﬁed by PHI VILLA. 48. Use only PHI VILLA factory-authorized parts. The use of any part that is not factory authorized can be dangerous and will void your warranty.
Page 6 PACKAGE CONTENTS PART DESCRIPTION QUANTITY Fire pit body Lava rock (1.1 lbs) 1 bag ASSEMBLY INSTRUCTIONS 1. Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
Page 7 ASSEMBLY INSTRUCTIONS 4. Connecting propane cylinder (See Figure 3) Only cylinders marked “propane” may be used. NOTE: Some 1 lb cylinders may form frost when near empty. ( 1 ). Before connecting, be sure there is no debris caught in the head of the burner or burner or burner ports. ( 2 ).
Page 8 ASSEMBLY INSTRUCTIONS 6. Place the lava rocks (B) into the ﬁre pit body (A). Approx 1.1 lbs of lava rocks are needed (See Figure 5) . NOTE: Leave the pilot box uncovered by lava rocks. CAUTION This ﬁre pit is equipped with natural lava rock that may crackle or pop the ﬁrst time it is used. Lava rock has been pre-heat treated.
Page 9 OPERATION INSTRUCTIONS WARNING Failure to inspect this connection or follow these instructions could cause a ﬁre or an explosion which can cause death, serious bodily injury or damage to property. Cylinder/Gas line connection 1. Make 2-3 oz. of leak detection solution by mixing one part liquid dishwashing soap with three parts water. 2.
Page 10 OPERATION INSTRUCTIONS 6. Push and turn control panel counterclockwise to “High” position (See Figures 8). 7. Use a match or a lighter to light the ﬁre bowl (See Figure 8). Continue to press the control knob for 15 seconds before it is released. 8.
Page 11 CARE AND MAINTENANCE CAUTION 1. All cleaning and maintenance should be done when outdoor ﬁrepit is cool and with the fuel supply disconnected. 2. DO NOT clean any outdoor ﬁrepit part in a self-cleaning oven. The extreme heat will damage the ﬁnish. 3.
Page 12 WARRANTY Firepits Burner, steel ﬁre pit bowl, all mechanical parts and ﬁttings to control panel and burner assembly, and all ﬁre pit tops that are not cast aluminum are warranted for a period of one (1) year from original date of purchase, against defects in material and or workmanship. Rust is not covered.
