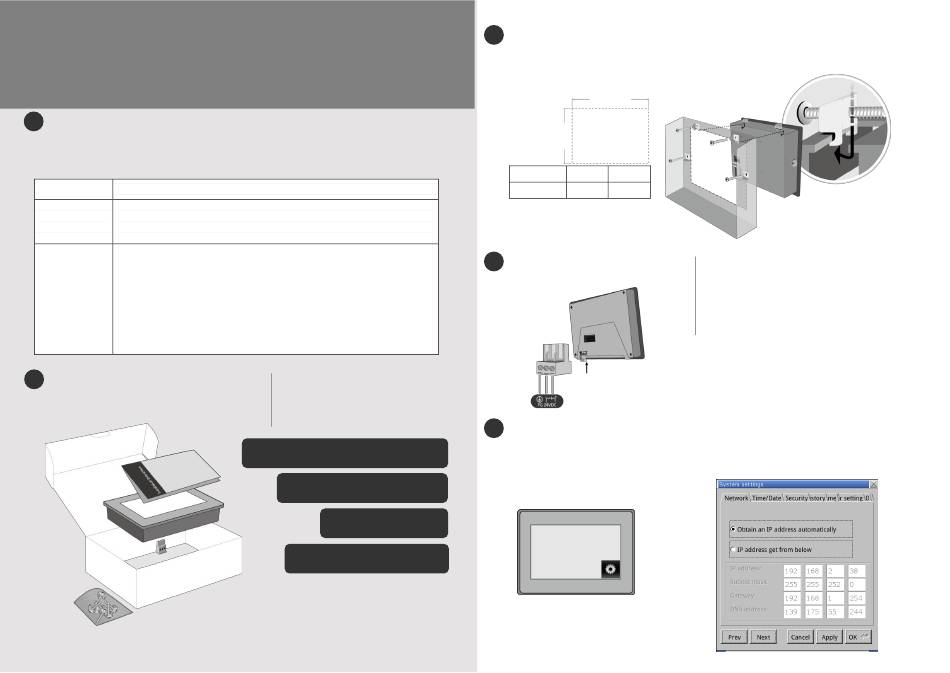

VISUAL 2E
Installation and Startup Guide
1
This document covers the installation of VISUAL 2E HMI, for the detailed specifications and
operation, please refer to Brochure and EasyBuilder Pro User Manual.
Install Environment:
VISUAL 2E HMI is NEMA 4 rated (Indoor Only).
NEMA Rating
VISUAL 2E has been tested to conform to European CE requirements.
Electrical
This means that the circuitry is designed to resist the effects of electrical noise.
Environment
This does not guarantee noise immunity in severe cases. Proper wire routing and
grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2)
Do not operate the unit in areas subject to explosion hazards due to
Environmental
flammable gases, vapors or dusts.
Considerations
(3) Do not install the unit where acid gas, such as SO2 exists.
(4)
This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5)
Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.
2
Unpacking the Unit
Unpack and check the delivery. If damage is found,
notify the supplier.
(1)
(2)
(3)
(4)
MI005020-E
Installation Instruction
NOTE:
Place the operator panel on a stable
surface during installation. Dropping it or
letting it fall may cause damage.
(1) Installation Instruction, 2-sided A4 *1
(2) Human Machine Interface *1
(3) Power Connector *1
(4) Brackets & Screws *1 pack
Installation Instructions
3
Secure the operator panel in position, using all the fastening holes and the provided brackets
and screws. Screw Torque: 2.6 ~ 3.9 lbf.in. (For reaching waterproof effect and preventing the panel from
being deformed.)
(A)
Cutout
(B)
Type
A(mm)
B(mm)
VISUAL 2E
192
138
Power Connections
4
System Settings
5
When HMI is powered up and displays image,
click the system setting button.
(Default System Password: 111111)
It is necessary
to connect the HMI to
your network through a RJ-45 cable.
NOTE:
Connect positive DC line to the '+' terminal
1.
and the DC ground to the '-' terminal.
2. Please do not connect HMI with PLC and PC
simultaneously to prevent potential difference
from destroying USB ports of HMI and PC.
Go to the Network tab, you may choose
to auto get DHCP IP, or designate your
own IP.
