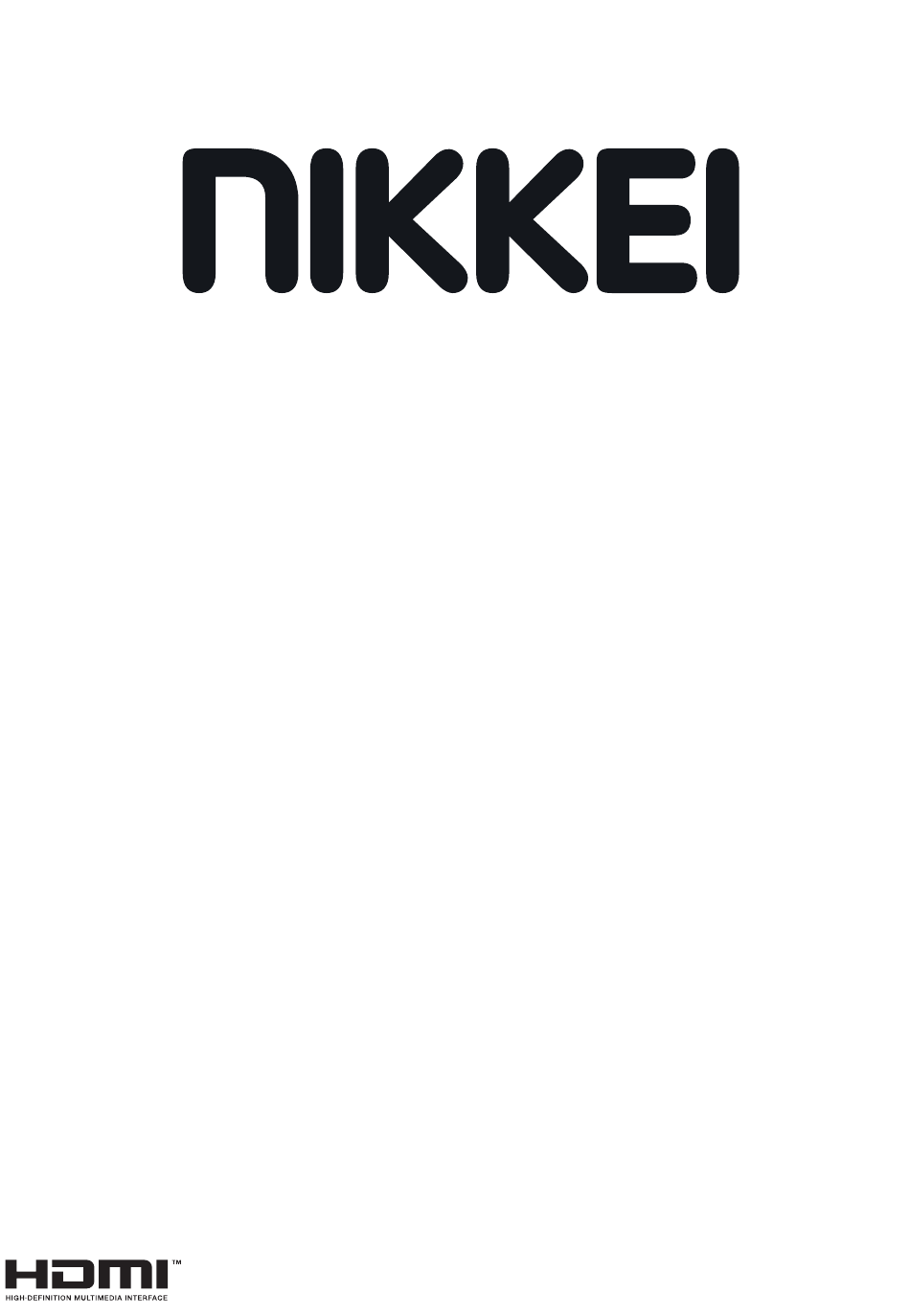

- Page 1 GEBRUIKSAANWIJZING OPERATING INSTRUCTIONS MODE D'EMPLOI NLD24MSMART KLEURENTELEVISIE MET AFSTANDSBEDIENING COLOUR TELEVISION WITH REMOTE CONTROL TELEVISEUR COULEUR A TELECOMMANDE...
-
Page 2: Table Of Contents
Contents Safety Information ..........39 Markings on the Product........39 Environmental Information........40 Features ...............41 Accessories Included..........41 Standby Notifications ..........41 TV Control Switch & Operation......42 Inserting the Batteries into the Remote ....42 Connect Power ............42 Antenna Connection ..........43 License Notification ..........43 Remote Control ............45 Connections............46 Switching On/Off ...........47 First Time Installation..........47... -
Page 3: Safety Information
• Do not place any heat sources such as electric Safety Information heaters, radiators, etc. near the TV set. • Do not place the TV on the floor and inclined CAUTION surfaces. • To avoid danger of suffocation, keep plastic bags RISK OF ELECTRIC SHOCK DO NOT OPEN out of the reach of the babies, children and domestic... -
Page 4: Environmental Information
WARNING WALL MOUNTING WARNINGS Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the • Read the instructions before mounting your TV product may contain a coin/button cell battery. If the on the wall. coin/button cell battery is swallowed, it can cause •... -
Page 5: Features
Note: Screen Off option is not available if the Mode is set Standby Notifications to Game. If the TV does not receive any input signal (e.g. from When the TV is not in use, please switch off or aerial or HDMI source) for 3 minutes, it will go disconnect the TV from the mains plug. -
Page 6: Tv Control Switch & Operation
Changing Channels and Volume TV Control Switch & Operation You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote. Inserting the Batteries into the Remote Lift the cover on the back of the remote gently. Insert two AAA batteries. -
Page 7: Antenna Connection
Equipment bearing these symbols should not be Antenna Connection disposed as general household waste. Connect the aerial or cable TV plug to the AERIAL You should look for appropriate recycling facilities and INPUT (ANT) socket or satellite plug to the SATELLITE systems for the disposal of these products. - Page 8 Specification Country Restriction In-door use only for 5470 MHz to 5725 Greece PAL BG/DK/II’ MHz band TV Broadcasting SECAM BG/DK General authorization required for network Luxembourg and service supply(not for spectrum) VHF (BAND I/III) - UHF Receiving Channels Radio transmission is prohibited for the (BAND U) - HYPERBAND Norway geographical area within a radius of 20 km...
-
Page 9: Remote Control
Remote Control Source: Shows all available broadcast and content sources Netflix: Launches the Netflix application. YouTube: Launches the YouTube application. Play: Starts to play selected media Record: Records programmes Rapid reverse: Moves frames backwards in media such as movies Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language (digital TV, where available) Red button... -
Page 10: Connections
Connections NOTE: When connecting Connector Type Cables Device a device via the YPbPr or Side AV input, you must use the Scart connection cables to enable Connection connection. See the illustrations (back) on the left side. | You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. -
Page 11: Switching On/Off
Direct, Single Satellite Cable or DiSEqC switch by Switching On/Off using “ ” or “ ” buttons. To Switch the TV On • Direct: If you have a single receiver and a direct Connect the power cord to a power source such as a satellite dish, select this antenna type. -
Page 12: Media Playback Via Usb Input
displayed asking whether you want to do the network should then switch on the TV to enable the recording settings. feature. To use recording your USB drive should have 2 GB After the initial settings are completed TV will start free space and be USB 2.0 compatible. -
Page 13: Watching Recorded Programmes
Record button on the remote control again to record Loop/Shuffle Mode Operation the next event after selecting the next programme All files in the list will be from within the EPG. Press Stop button to cancel Start playback with the Play continuously played in original instant recording. -
Page 14: E-Manual
Note: ARC is supported only via the HDMI1 input. System Audio Control Allows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the System>Settings>More menu as Amplifier. - Page 15 TV Menu Contents System - Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen.
- Page 16 System - Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Headphone Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
- Page 17 System - Settings Menu Contents Conditional Access Controls conditional access modules when available. Language You may set a different language depending on the broadcaster and the country. Manage your privacy privileges for smart TV related applications. Press OK to enter Privacy Settings (*) the menu and set according to your preferences.
- Page 18 This setting configures the power up mode preference. Last State and Standby Power Up Mode options are available. Virtual Remote Enable or disable the virtual remote feature. With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
-
Page 19: General Tv Operation
Child Lock: If this option is set to ON, the TV can only General TV Operation be controlled by the remote control. In this case the Using the Channel List control buttons on the TV will not work. The TV sorts all stored stations in the Channel List. Internet Lock: If this option is set to ON, the open You can edit this channel list, set favourites or set browser application in the portal will be disabled. -
Page 20: Teletext Services
Now/Next Schedule Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day. Options (OK button): Displays event options. Event Details (Info button): Displays detailed Event Details (Info button): Displays detailed information about selected events. information about selected events. Filter (Text button): Views filtering options. -
Page 21: Troubleshooting & Tips
Recording unavailable If a new upgrade is found, it starts to download the upgrade. After the download is completed To record a programme, you should first connect a confirm the question asking about rebooting the USB disk to your TV while the TV is switched off. TV by pressing the OK to continue with the reboot You should then switch on the TV to enable recording operation. -
Page 22: Pc Input Typical Display Modes
PC Input Typical Display Modes AV and HDMI Signal Compatibility The following table is an illustration of some of the Source Supported Signals Available typical video display modes. Your TV may not support all resolutions. SECAM Index Resolution Frequency NTSC4.43 640x350 85Hz (SCART) -
Page 23: Supported Video File Formats For Usb Mode
Supported Video File Formats for USB Mode Extension Video Codec SPEC (Resolution) & Bit Rate .dat, vob MPEG1/2 1080P@30fps - 40 Mbps MPEG1/2, .mpg, .mpeg MPEG4 MPEG1/2, H.264, H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps MVC: .ts, .trp, .tp AVS, MVC 1080P@30fps - 62.5 Mbps Other: 1080P@30fps - 40Mbps .mp4, .mov,... -
Page 24: Supported Audio File Formats For Usb Mode
Supported Audio File Formats for USB Mode Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps .mp3, MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3... -
Page 25: Supported Subtitle File Formats For Usb Mode
Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps 16KHz ~ 48KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps .wav LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz IMA-ADPCM, 384Kbps 8KHz ~ 48KHz MS-ADPCM G711 A/mu-law 64Kbps ~ 128Kbps 8KHz MPEG1/2 Layer3... -
Page 26: Supported Dvi Resolutions
Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information. 56Hz 60Hz 66Hz 70Hz 72Hz 75Hz 640x400 þ 640x480 þ þ þ... - Page 27 Configuring Wireless Device Settings Connectivity Open the Network/Internet Settings menu and select Network Type as Wireless Device to start connection To Connect to a Wireless Network process. The TV cannot connect to the networks with a hidden The TV will scan the wireless networks automatically. SSID.
- Page 28 Wireless Display it is possible that your TV might not connect to the internet. In such a case, the MAC address is Wireless Display is a standard for streaming video and authenticated each time when you connect to the sound content by Wi-Fi Alliance. This feature provides internet.
- Page 29 OK. If you want to refresh the device list, press the Internet Portal Green button. You can press Menu to exit. HINT: A broadband internet connection is required If you select the media type as Videos and choose for high quality viewing. You must set the country a device from the selection menu.
- Page 30 All sites on the internet might not be supportted. Internet Browser According to the site; content problems may occur. To use the internet browser, enter the portal first. Then In some circumstances video contents might not be launch the Internet application on the portal. able to be played.
-
Page 31: Dvd Mode
On cleaning DVD Mode • Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out. Safety Information CAUTION DVD Player is a class 1 laser product. However this product uses a visible laser beam which could cause hazardous radiation exposure. - Page 32 General Playback DVD Troubleshooting Poor picture quality (DVD) Basic Play 1. Press on the power button • Make sure the DVD disc surface is not damaged. 2. Please insert a disc into the loader. (Scratch, fingerprint etc.) The disc will be automatically loaded and play will •...
- Page 33 Disc Types Compatible with This Unit Disc Types Recording Disc Max. Playing Characteristics Types Size Time (Logos) • DVD contains excellent sound and video Single- Audio due to Dolby Digital and MPEG-2 System. sided; 240 min. 12 cm • Various screen and audio functions can Double- be easily selected through the on screen Video...
-
Page 34: Overview Of The Remote Control
Overview of the Remote Control 1. Play 2. No function 3. Rapid reverse 4. Language selection 5. Zoom 6. Repeat 7. Numeric buttons 8. TV Menu 9. Back 10. Display / DVD Menu 11. Search mode 12. Info 13. OK / Select 14. -
Page 35: General Dvd Operation (Depending On Model)
General DVD Operation (depending on model) You can operate DVD, movie CD, music or picture CD’s content by using the proper buttons on your remote control. Below are main functions of commonly used remote control buttons. Buttons DVD Playback Movie Playback Picture Playback Music Playback Play... -
Page 36: Mobil Tv Instructions
MOBIL TV INSTRUCTIONS Switching the TV On Using 12 Volt 1. Connect the cigarette lighter plug cable into the cigarette lighter socket of your car. 2. Plug the other side of 12 volt cable into DC 12 socket on the back side of the TV. Then the standby LED will light up.
