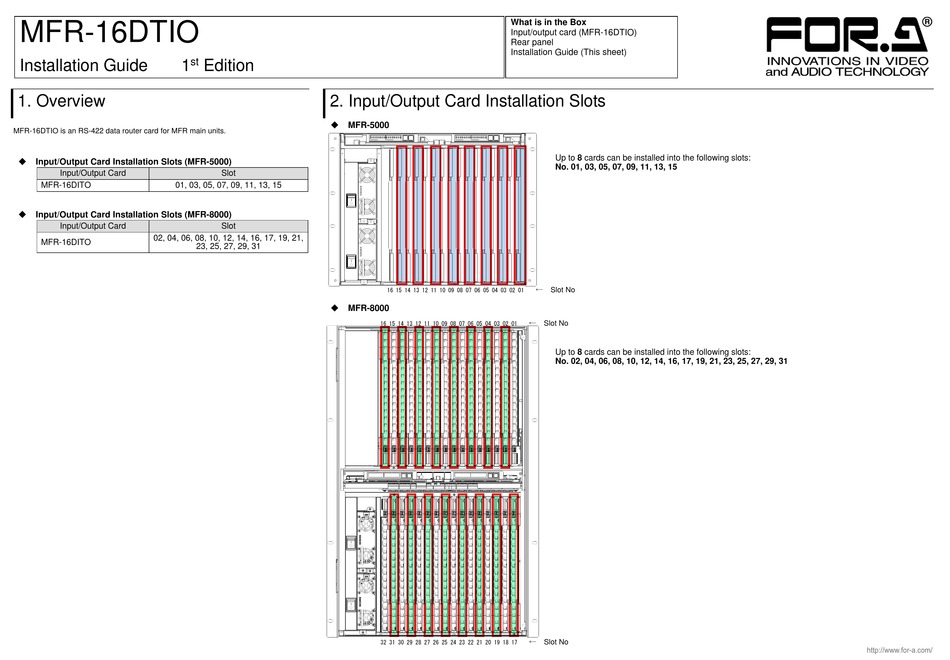

MFR-16DTIO
st
Installation Guide
1
1. Overview
MFR-16DTIO is an RS-422 data router card for MFR main units.
Input/Output Card Installation Slots (MFR-5000)
Input/Output Card
MFR-16DITO
01, 03, 05, 07, 09, 11, 13, 15
Input/Output Card Installation Slots (MFR-8000)
Input/Output Card
02, 04, 06, 08, 10, 12, 14, 16, 17, 19, 21,
MFR-16DITO
Edition
2. Input/Output Card Installation Slots
MFR-5000
Slot
Slot
23, 25, 27, 29, 31
MFR-8000
What is in the Box
Input/output card (MFR-16DTIO)
Rear panel
Installation Guide (This sheet)
Up to 8 cards can be installed into the following slots:
No. 01, 03, 05, 07, 09, 11, 13, 15
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
← Slot No
16 15 14 13 12 11 10 09 08 07 06 05 04 03 02 01
Up to 8 cards can be installed into the following slots:
No. 02, 04, 06, 08, 10, 12, 14, 16, 17, 19, 21, 23, 25, 27, 29, 31
← Slot No
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
