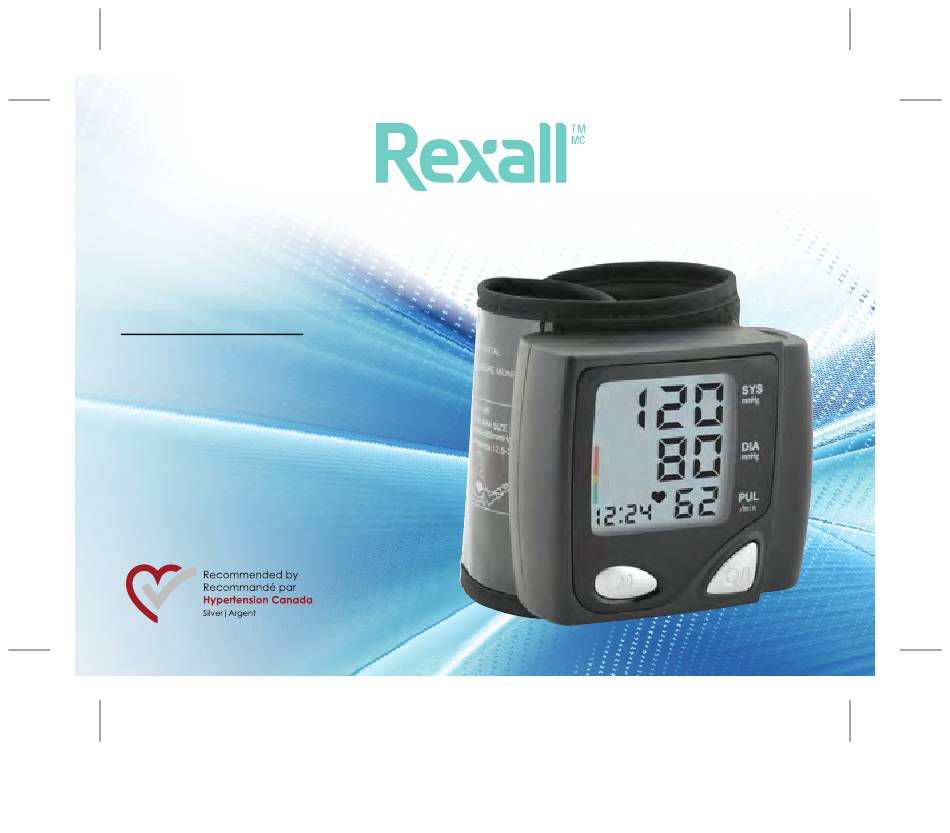

- Page 1 Wrist Automatic Blood Pressure Monitor Tensiomètre automatique de Poignet Model #: RX813 Instruction Manual 0_RX813_RX_IB_ENG_December182018.indd 1 2019-01-02 12...
-
Page 2: Table Of Contents
Automatic Wrist Blood Pressure Monitor RX813 Instruction Manual Table of Contents 1. Introduction 1.1 Features 1.2 Important Information 1.2A Safety Information 1.2B Care of the Device 1.2C Comparing Readings to Other Blood Pressure Devices 1.2D Calibration 2. About Blood Pressure 2.1 Normal Blood Pressure Values... - Page 3 4. Using the Device 4.1 Setting Date and Time 4.2 Obtaining Accurate Measurements 4.2A Before Measuring 4.2B Fitting the Wrist 4.3 Measuring Your Blood Pressure 4.4 Automatic Inflation 4.5 Discontinuing a Measurement 5. Viewing Previously Recorded Measurements 5.1 Clearing All Values 6.
-
Page 4: Introduction
11. Lifetime Guarantee 12. Technical Specifications 1. Introduction Thank you for purchasing the Rexall Automatic Wrist Blood Pressure Monitor. Designed for convenient and easy operation, this device provides a simple, yet accurate method to measure your blood pressure. Your blood pressure is an important parameter that can be used to monitor your health. -
Page 5: Important Information
and pulse rate. The cuff is wrapped around the wrist and is automatically inflated by the air pump. The sensor in the device senses weak fluctuation of the pressure in the cuff produced by extension and contraction of the artery of the wrist in response to each heartbeat. -
Page 6: A Safety Information
Rexall Automatic Wrist Blood Pressure Monitor. 1.2A Safety Information • Self-measurement means control, not diagnosis or treatment. Your values must always be discussed with your doctor or a physician who is familiar with your family history. - Page 7 • Try to record your blood pressure regularly at the same time of the day and under the same conditions. This will help your physician detect any extreme variations in your blood pressure and thus treat you accordingly. • Morning Hypertension (>135/85 mmHg): Recently, several studies have identified elevated cardiovascular risks (heart failure, stroke, angina) associated with “morning hypertension”.
- Page 8 - When it is cold - Within two hours after meals - After drinking tea, coffee, or other caffeinated drinks - After smoking tobacco - When your bladder is full Blood pressure is lower than normal: - After consuming alcohol - After taking a bath •...
-
Page 9: B Care Of The Device
to use the device for an extended period of time. - Do not mix different types, brands, or size of batteries. This may cause damage to the product. - Do not mix old and new batteries. - Remove batteries and dispose of them according to the proper regulations in your area. -
Page 10: C Comparing Readings To Other Blood Pressure Devices
• Do not store the unit in direct sunlight, high humidity, or in places with a lot of dust. • Clean the device with a soft dry cloth. Do not use gasoline, thinner or similar solvents. Carefully remove spots on the cuff with a damp cloth and soap. Do not wash the cuff. - Page 11 reduce naturally occurring blood pressure variability during the test. For proper comparisons, the subject should be seated comfortably with feet flat on the floor, and have rested for 5 minutes before the first reading to allow blood pressure levels to stabilize. The patients back, elbow and forearm should be supported, and the middle of the cuff should be at the level of the right atrium.
- Page 12 with subsequent measurements, following this protocol reduces these natural changes in BP levels. The standard technical error of both consumer and professional devices is normally ±3 mmHg, so a discrepancy of 6 mmHg is acceptable even when the devices are working within their specifications.
-
Page 13: About Blood Pressure
2. About Blood Pressure Your blood pressure level is determined in the circulatory center of your brain. Your nervous system allows your body to adapt or alter blood pressure in response to different situations. Your body alters your pulse or heart rate and the width of blood vessels through changes in muscles in the walls of blood vessels. -
Page 14: Normal Blood Pressure Values
deficient supply of blood to important organs (heart, brain, muscles) can be the result. Furthermore, with long-term increased blood pressure values, the heart will become structurally damaged. There are many different causes of the appearance of high blood pressure. We differentiate between common primary (essential) hypertension, and secondary hypertension. - Page 15 Systolic Diastolic Comment Less than Below 120 This range is considered “Normal” and ideal This range is considered “Pre- hypertension”: Discuss with your health 120 - 139 80 – 89 care professional. Lifestyle modifications maybe required to avoid advancing into Hypertension.
- Page 16 Discuss with your medical professional, 160 and 100 + medication(s) and lifestyle modifications are higher necessary to control your hypertension Adopted From: Understanding and Managing your blood pressure; Hypertension Canada. Note: A diagnosis of high blood pressure must be confirmed with a medical professional.
-
Page 17: Common Blood Pressure Questions And Answers
2.2 Common Blood Pressure Questions and Answers a) Why is my blood pressure reading always different? Your blood pressure changes constantly. It is quite normal for blood pressure to fluctuate significantly (50 mmHg to 60 mmHg) throughout the day. Blood pressure is normally lowest at night, but increases during waking hours when the stress and activities of everyday life are highest. - Page 18 b) Why is the doctor’s reading different from the reading taken at home? Your blood pressure can vary due to the environment (temperature, nervous condition). When measuring blood pressure at the doctor’s office, it is possible for blood pressure to increase due to anxiety and tension, this is known as “White Coat Hypertension”.
-
Page 19: Getting Started
3. Getting Started 3.1 About the Device 1 - LCD 2 - Battery compartment 3 - Wrist cuff 4 - On/Off button 5 - Memory button 6 - Batteries 7 - Case 0_RX813_RX_IB_ENG_December182018.indd 19 2019-01-02 12... -
Page 20: About The Lcd Screen
3.2 About the LCD Screen The LCD screen displays the systolic and diastolic blood pressure measurements along with your heart rate. It also displays previously recorded measurements and the date and time, when the appropriate button is pressed. 1 - Time/Date 2 - Systolic Blood Pressure (mmHg) 3 - Diastolic Blood Pressure (mmHg) 4 - Pulse Rate (beats/min) -
Page 21: Using The Device
NOTE: Replace the batteries whenever the weak battery icon shows “ ”, the display is dim, or the display does not illuminate when the power is on. Replace all the batteries at the same time - it is dangerous to mix old and new batteries. -
Page 22: Obtaining Accurate Measurements
2. Press and hold the M button, then press the O/I button, the year number flashes as Fig.2. 3. Press the M button again to change the number, and press the O/I button to confirm. Fig. 2 4. When the year setup is finished, the month number will flash automatically. - Page 23 4.2A Tips On Taking Accurate Measurements In the morning before breakfast, 2 hours after Empty bladder (if dinner, before taking necessary). medication Rest quietly for 5 Avoid coffee and smoking minutes. Remain calm Within the hour, and no and quiet while the exercise 30 minutes before measurement is in measuring.
-
Page 24: B Fitting The Wrist
4.2B Fitting the Wrist a) Remove all accessories (watch, bracelet, etc.) from your left wrist. If your physician has diagnosed you with poor circulation in your left arm, use your right wrist. b) Roll or push up your sleeve to expose the skin. c) Apply the cuff to your left wrist with your palm facing up and the LCD display facing you. -
Page 25: Measuring Your Blood Pressure
Measurement Correct Reading Measurement becomes lower position Measurement Reading becomes higher Incorrect Correct 4.3 Measuring Your Blood Pressure After following the guidelines described in the previous section and placing the cuff around your wrist, you are now ready to measure your blood pressure. Follow these steps to record your measurement. -
Page 26: Automatic Inflation
3. The pump will stop inflating and the pressure begins to decrease gradually, during which the blood pressure and pulse will be calculated as Fig.6. Fig. 5 4. The air in the wrist cuff will deflate quickly and the blood pressure reading and pulse reading will be displayed on the screen as Fig.7. -
Page 27: Discontinuing A Measurement
4.5 Discontinuing a Measurement If you do not feel well during the measurement or want to stop the measurement for any reason, press the O/I button. The device will quickly release the air in the wrist cuff and the device will return to standby mode. 5. -
Page 28: Clearing All Values
reading taken, then turns to another screen to show readings as Fig.9. Fig. 9 4. Press the M button again, the display will show ‘02’, which means the second to the last reading taken. Continue to press the M button to view all stored measurements. -
Page 29: Hypertension Classification Indicator
6. Hypertension Classification Indicator (severe) Standards for assessment of high or low blood (moderate) (mild) pressure, regardless of age, have been established High Normal by World Health Organization (WHO) as shown in Normal the chart to the right: Optimal 80 85 Diastolic arterial blood pressure (mmHg) The indicator displays a segment, based on the Arterial blood pressure classification by World Health Organization... -
Page 30: Irregular Heartbeat Detector
Note: 1. If the systolic blood pressure and diastolic blood pressure fall into different categories, the higher value should be taken for classification. 2. The WHO blood pressure classification indication in the device is only a reminder, it can not be regarded as the final diagnosis. 7. -
Page 31: Error And Low Battery Information
8. Error and Low Battery Information Indication Possible Reason Correct Method The cuff is put on improperly. Make sure that cuff is put on correctly and repeat measurement. Movement of arm/hand or Repeat the measurement talking during measurement. with no movement and follow recommendations in the manual. -
Page 32: Care, Storing, Repair And Recycling
9. Care, Storing, Repair and Recycling 1. It is necessary to protect this device against high moisture, direct sunlight, shock, solvent, alcohol and gasoline. 2. Remove the batteries if the device is to be stored for a long time, and keep the batteries away from children. - Page 33 10. Troubleshooting Symptom Check Point Remedy No display when the device is The batteries have run down. Replace all batteries with turned on. new ones. The polarity of battery is wrong. Install batteries correctly. Proper battery contact is not Clean the battery terminals being made.
- Page 34 The reading is extremely high Is the cuff at the same level as Make sure that your posture or low. the heart? is correct. Is the cuff wrapped right? Wrap the cuff correctly. Did you strain your arm/hand Relax during measurement. during measurement? Did you talk or move your arm/ Keep quiet and still during...
- Page 35 11. Lifetime Guarantee Rexall wrist blood pressure monitor has a lifetime warranty to be free of TM/MC manufacturing defects for the life of the original owner. This warranty does not include the inflation system including the cuff and inflation bladder. The cuff is warranted for two years.
- Page 36 Please include your name, return address, phone number, and email address. Thermor will repair or replace (at BIOS Medical’s discretion) free of charge any parts necessary to correct the defect in material or workmanship. Please allow 10 days for repair and return shipping. 12.
- Page 37 Accuracy: Pressure: +/- 3 mmHg Pulse: +/- 5% Memory: Maximum 90 Cuff circumference: 12.5 to 20.5 cm (4.9 to 8 inches) Power Source: 2 x AAA, 1.5V batteries Type BF applied part Batteries and electronic devices must be disposed of in accordance with the locally applicable regulations, not with domestic waste.
- Page 38 0_RX813_RX_IB_ENG_December182018.indd 38 2019-01-02 12...
