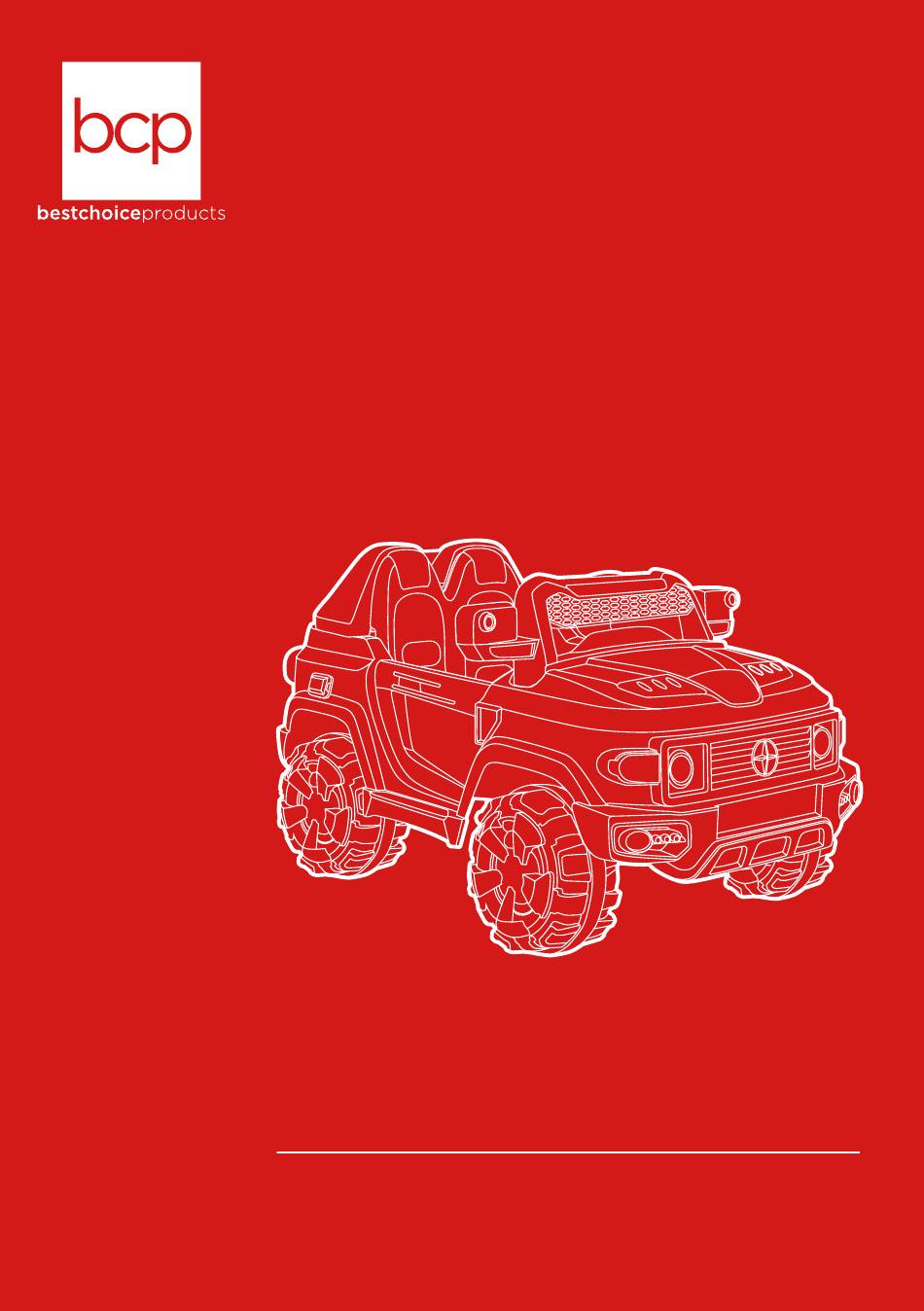

INSTRUCTION
MANUAL
Ride-On Convertible Truck
SKY2069 + SKY2338 + SKY2581
Ver. 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKY2069 and is the answer not in the manual?

Questions and answers

Summary of Contents for BestChoiceProducts SKY2069

  • Page 1 INSTRUCTION MANUAL Ride-On Convertible Truck SKY2069 + SKY2338 + SKY2581 Ver. 2...
  • Page 2: Battery Warnings

    SAFETY Please retain these instructions for future reference. This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaging and bags away from children and dispose of all packaging before use. Always use common sense and safe practices when operating this vehicle.
  • Page 3: User Warnings

    USER WARNINGS The following safety hazards may result in serious injury or death: • Never leave a child unattended. • Always sit in the seat when using this vehicle. • Keep your hands, hair, and clothes away from moving parts. •...
  • Page 4: Tools Required

    TOOLS REQUIRED SMALL PHILLIPS 77 LBS 2 PERSON APPROXIMATELY WRENCH SCREWDRIVER ASSEMBLY 45 MIN. CAPACITY ASSEMBLY HARDWARE SCREW SCREW WASHER COTTER PIN 10 PCS 12 PCS 6 PCS 4 PCS PARTS CENTER FRAME REAR AXLE FRONT WHEEL REAR WHEEL (driving wheel) 2 PCS 1 PC 2 PC...
  • Page 5: Product Assembly

    PRODUCT ASSEMBLY Flip the vehicle over and lay it on a level surface. Attach the two part A center frame pieces with ten part 1 screws, five on each center frame piece. Pg. 5...
  • Page 6 PRODUCT ASSEMBLY Slide on a part 3 washer, part C front wheel, and another part 3 washer onto a front wheel axle and secure it with a part 4 pin. Attach a part E hub cap with three part 2 screws. Repeat on the other side. Slide the part B rear axle through the body of the vehicle.
  • Page 7 PRODUCT ASSEMBLY Join the connector from the part I rear frame to the connector within the rear part of the vehicle, then snap the rear frame into place. Join the connector from the part G steering wheel to the connector from the steering wheel mount. Remove the nut and bolt from the steering wheel, slide on the steering wheel, and then replace the nut and bolt to secure the steering wheel to the mount.
  • Page 8 PRODUCT ASSEMBLY Join the connector from the part J front frame/mirrors to the connector within the front part of the vehicle, then snap the front frame/mirrors into place. Pg. 8...
  • Page 9 PRODUCT ASSEMBLY Within the seat, join the connectors from the gear boxes to the corresponding connectors (enclosed in black wire casing). Insert the connector from the battery into the designated terminal on the circuit board. Install the part H seat and secure the latch to lock it in place. Pg.
  • Page 10 CHARGING INSTRUCTIONS & WARNINGS • Charging socket is located on the rear of the vehicle above the right back wheel. Insert one end of the part K charger into the charging socket and plug the other end into a wall outlet. •...
  • Page 11: Remote Control Diagram

    REMOTE CONTROL DIAGRAM • Insert 2 AAA batteries into the remote control. • On the vehicle dashboard, press the remote/manual control switch to change from manual control to remote control. FORWARD/REVERSE TURN LEFT/TURN RIGHT TROUBLESHOOTING Problem Reason Solution Low battery Fully charge the battery Stop use for several minutes and restart Electrical protection...
  • Page 12: Product Warranty Information

    Best Choice Products and verified as such. All damages to items are the customer’s responsibility until the item has been received by and acknowledge by Best Choice Products as undamaged. CONTACT US; WE’RE HERE 7 DAYS A WEEK TO HELP YOU! bestchoiceproducts.com customerservice@ 844.948.8400 LEARN MORE! bestchoiceproducts.com...
