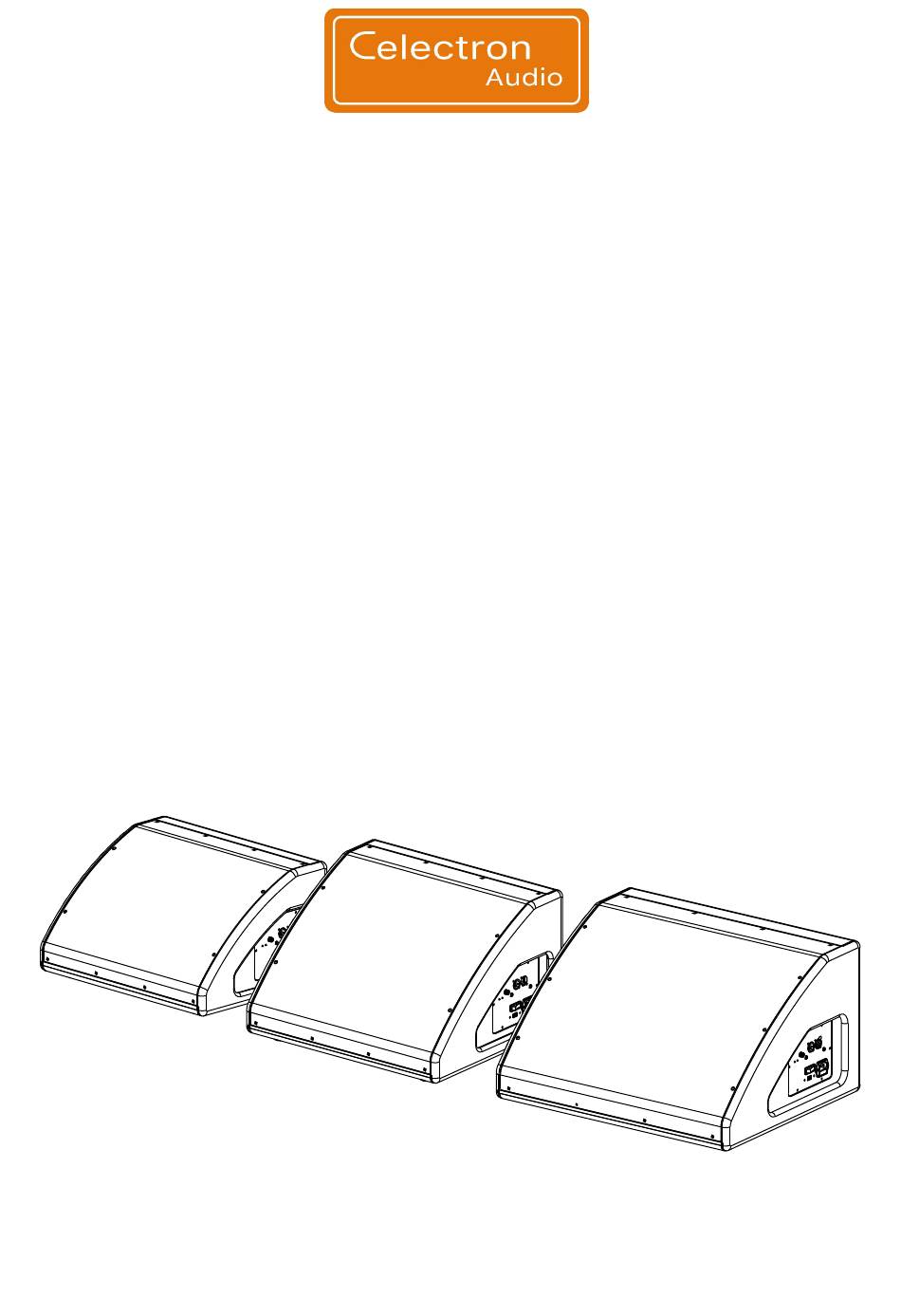

- Page 1 WD10A - WD12A - WD15A Active Floor Monitors USER MANUAL...
-
Page 2: Fcc Compliance Notice
FCC COMPLIANCE NOTICE This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 3: Table Of Contents
..10 INPUT AND CONTROL INSTRUCTIONS (FIG. 1 / 2 / 3) ....10 DIMENSIONS WD10A 49.0 cm 37.5 cm 19.3"... -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL WD10A WD12A WD15A System type 2-way coaxial vented stage monitor 2-way coaxial vented stage monitor 2-way coaxial vented stage monitor 15” woofer with 3"VC Low Frequency Device 10” woofer with 2"VC 12” woofer with 2.5"VC 1” compression driver with 1.35"VC 1”... -
Page 5: Frequency Response
FREQUENCY RESPONSE WD10A - preset MONITOR WD10A - preset FOH WD12A - preset MONITOR WD12A - preset FOH WD15A - preset MONITOR WD15A - preset FOH... -
Page 6: Control Panel (Fig.1)
CONTROL PANEL (FIG.1) CONNECTIONS (FIG.2) tip - hot ring - cold cold sleeve - ground ground INPUT INPUT Jack (balanced) Balanced male XLR ground tip - hot cold cold ground INPUT LINK (output) Jack (unbalanced) Balanced female XLR *note: connect both cold and ground to make cable from balanced to unbalanced negative / black / nero 20mm... -
Page 7: Configuration Examples (Fig.3)
CONFIGURATION EXAMPLES (FIG.3) single monitor doubled monitor WD10-12-15A WD10-12-15A (preferably use the same model) SET THE EQ PRESET ON “MONITOR” stage Floor monitoring From mixer WD15A Drum fill SW115HA monitoring From mixer... -
Page 8: Safety And Precautions
SAFETY AND PRECAUTIONS • CAUTION: before using this product read carefully the following safety instructions. Take a look of this manual entirely and preserve it for future reference. When using any electric product, basic precautions should always be taken, including the following: –... -
Page 9: Ce Conformity
CE CONFORMITY • CELECTRON products comply with directive EMC 2014/30/CE, as stated in EN 55103-1 and EN 55103-2 standards and with directive LVD 2014/35/CE, as stated in EN 60065 standard. • Under the EM disturbance, the ratio of signal-noise will be changed above 10dB. PACKAGING, SHIPPING AND COMPLAINT •... -
Page 10: General Information
The WD monitors are available in three models, offering the perfect solution for any monitoring situations. The ultra- compact WD10A is able to offer a high-performance monitoring also on small stages and it ‘s the ideal solution for speech, vocals and keyboards. WD12A, with its high SPL and its full-range response, is the favorite choice for vocals, guitar, horns and electronic instruments or as a high-power monitor for DJs. - Page 11 RED LED illuminates when the internal amplifier's output is limited. NOTE: When this LED flashes reduce the input signal level. 6. PRESET MONITOR/FOH selector This switch allows the selection between two equalisation settings, suited to two different uses. MONITOR Suited for stage monitoring sound reinforcement for an improved feedback rejection. This preset has been designed for typical sound reinforcement applications with the speaker mounted on floor stand.
