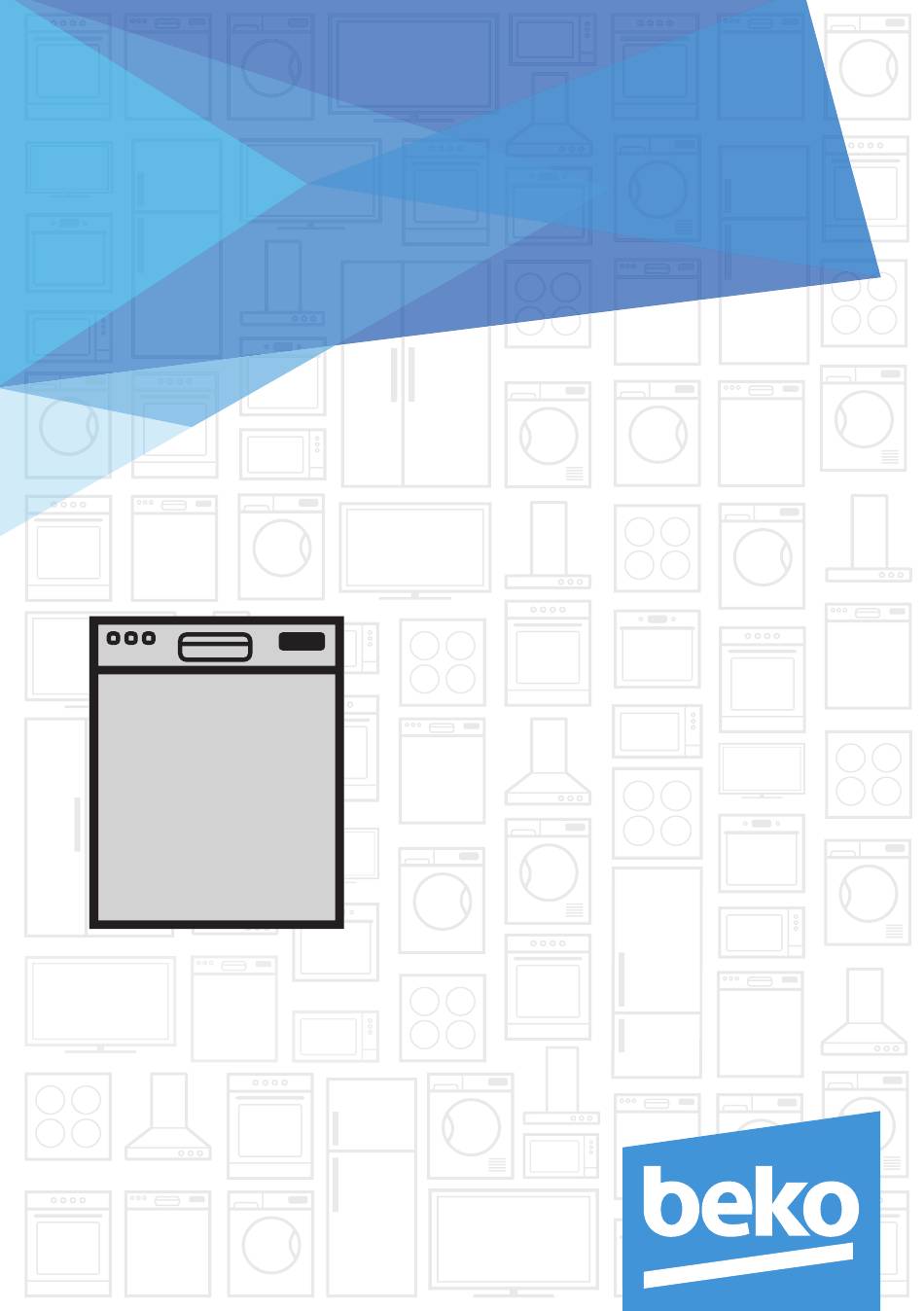

- Page 1 Dishwasher User’s Manual DFN05R11S DFN05X11W DFN05R11W DFN05X11S DFN05R11B DFN05Q10W Document Number : 15 9864 0100_AA_BEKO_A5_EN/ 16-02-18.(14:13)
- Page 2 Dishwasher User’s Manual DFN05R11S DFN05X11W DFN05R11W DFN05X11S DFN05R11B DFN05Q10W Document Number : 15 9864 0100_AA_BEKO_A5_EN/ 16-02-18.(14:13)
- Page 3 Please read this user manual first! Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
- Page 4 Please read this user manual first! Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 5: Table Of Contents
CONTENTS 1 INSTRUCTIONS FOR SAFETY Cutlery basket ........21 AND ENVIRONMENT 5 OPERATING THE PRODUCT 22 General safety ........4 Keys ............22 Intended use ..........4 Preparing the machine...... 22 Children’s safety ........5 Programme selection ......22 Disposing of packaging material ..5 Auxiliary functions ...... -
Page 6: Instructions For Safety And Environment
Instructions for safety and envIronment This section contains safety electric shock! instructions that will help to Never touch the plug with • give protection from risk of wet hands! Never unplug by personal injury or property pulling on the cable, always damage. -
Page 7: Children's Safety
Instructions for safety and envIronment It must be used to do the • Store all detergents and • domestic type dishes only. additives in a safe place This appliance is intended • away from the reach of the to be used in household and children. -
Page 8: Compliance With Weee Directive And Disposing Of The Waste Product
Instructions for safety and envIronment Compliance with WEEE collection points designated by the local authorities. Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). -
Page 9: Dishwasher Overview
Dishwasher Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Silverware basket 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. Upper cutlery basket (depends on model) 14. -
Page 10: Fan Drying System
Dishwasher Technical specifications Compliance to standards and test data / EC declaration of conformity This product complies with the following EU directives; Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242 Power input 220-240 V, 50 Hz (see rating label) -
Page 11: Installation
Installation To make the product ready for use, Do not install the product at places • make sure that the electricity, tap water where temperature may fall below supply and water drainage systems are 0ºC. appropriate before calling the Authorised Place the product on a rigid floor. -
Page 12: Connection To The Drain
Installation Connection to the drain Drainpipe must be connected to the foul water system and it Water discharge hose can directly be should not be connected to any connected to the drain hole or sink’s surface water drain. drainage. The length of this connection must be min. -
Page 13: This Appliance Must Be Earthed
Installation This appliance must Green and yellow be earthed or green If the fitted moulded plug is not suitable for your socket, then the plug should be cut off and an appropriate plug fitted. Destroy the old plug, which is cut off as a plug with a bared cord could cause a shock hazard if inserted into a socket... -
Page 14: Preparation Tips For Energy Saving
Preparation Tips for energy saving Adjusting the water softening system Following information will help you use the product in an ecological and energy- Cleaning, rinsing and drying performance of efficient manner. your dishwasher will increase when water Wipe away any coarse food remnants on softening system is adjusted properly. - Page 15 Preparation Remove the test Turn on the tap and Hold the test strip in Remove the test Wait for 1 minute. The test strip shows strip from the let the water run for the water for about strip from the water you the hardness packet.
-
Page 16: Adding Salt
Preparation 2. Turn the salt reservoir lid counter- If the water hardness level adjustment is set clockwise to open it (A). to level 1, the “No salt warning indicator” will illuminate continuously although it is not necessary to use salt. If you use salt under this condition, salt will not be consumed and the Salt indicator will not illuminate. -
Page 17: Detergent
Preparation Since different salt brands in the market have different particle sizes and since the water hardness may vary, dissolution of the salt in water may take a couple of hours. Therefore, Salt Indicator 2. Put suggested amount of powder, remains on for a while after liquid/gel or tablet detergent in the adding salt into the machine. -
Page 18: Tablet Detergents
Preparation The best washing performance in dishwashers is obtained by using detergent, rinse aid and water softening salt individually. Observe the instructions of the detergent manufacturer on the package when using tablet detergents. Contact the detergent Use powder or liquid/gel manufacturer if your dishes detergent in short programmes are wet and/or if you notice... -
Page 19: Rinse Aid
Preparation Rinse aid 4. If there are stains on tableware items after washing, level must be increased The rinse aid used in and if there is a blue trace after wiping dishwashers is a special them by hand, it must be decreased. combination that aims to This is set to position 3 as factory increase drying efficiency and... -
Page 20: Placing The Dishes Into The Dishwasher
Preparation Placing the dishes into the dishwasher You can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way. Wipe away any coarse food •... - Page 21 Preparation Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware Dishwasher / User’s Manual 19 / 35 EN...
-
Page 22: Upper Basket Height Adjustable Rack
Preparation Upper basket height Upper basket multipurpose adjustable rack service rack Use the lower and upper parts of the height This accessory located at the upper basket adjustable racks in the upper basket of of your machine allows you to easily wash the machine by sliding them down or up pieces such as extra long ladles and bread according to the heights of the glasses,... -
Page 23: Operating The Product
Operating the product 5 5 5 On/Off/Programme Selection key Rinse Aid indicator Salt indicator On/Off Control light Handle Programme Follow-up lights Start/Pause/Cancel key Half Load function Keys 4. Put adequate amount of detergent into the detergent compartment. On/Off/Programme Selection key 5. - Page 24 Operating the product /35 EN Dishwasher / User’s Manual...
-
Page 25: Auxiliary Functions
Operating the product Auxiliary functions Starting the programme Washing programmes of your dishwasher To start your machine after selecting the are designed to obtain the best cleaning programme and auxiliary functions, press effect, considering the type of the soiling, Start/Pause/Cancel key. soiling degree and properties of the dishes Your machine performs water to be washed. -
Page 26: Programme Follow-Up
Operating the product Programme follow-up Salt indicator You can track the current step of the Please check the salt indicator to see selected programme on the programme whether there is adequate amount of step lights located on the control panel. softening salt in the dishwasher or not. -
Page 27: End Of Programme
Operating the product End of programme 5. When you set the Programme Selection Knob to the “Off” position End of Programme indicator will light up again, the machine will enter the once the washing programme is over. normal mode. Press On/Off/Programme Selection key to switch off the product. -
Page 28: Maintenance And Cleaning
Maintenance and cleaning Cleaning the filters Service life of the product extends and frequently faced problems decrease if it is Clean the filters at least once a week in cleaned at regular intervals. order for the machine operates efficiently. Unplug the product and turn off Check if food residues are left on the filters. -
Page 29: Cleaning The Hose Filter
Maintenance and cleaning Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. -
Page 30: Cleaning The Impellers
Maintenance and cleaning Cleaning the impellers Upper impeller Clean the impellers at least once a week in Check if the holes on the upper impeller (1) order for the machine operates efficiently. are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left Lower impeller to remove the upper impeller. -
Page 31: Troubleshooting
Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 32 Troubleshooting • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 33 Troubleshooting machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the programme. There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washes. •...
- Page 34 Troubleshooting Detergent remains in detergent dispenser. • Detergent dispenser was damp when adding detergent. >>> Make sure that the detergent dispenser is dried well prior to filling it with detergent. • Detergent is added long before the washing process. >>> Pay attention to add detergent shortly before start-up of the washing.
- Page 35 Troubleshooting A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light. • Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid when adding rinse aid.
-
Page 36: Guarantee
• parts, but excluding consumable Professional installation by a qualified • items. Electrical Domestic Appliance Installer The labour costs of a Beko approved is recommended for all Washing • repairer to carry out the repair Machines, Dishwashers and Electric Cookers... - Page 37 If you have purchased an extended guarantee please refer to the instructions contained within the extended guarantee agreement document. Otherwise please call the appropriate number above where service can be obtained at a charge. Should you experience any difficulty in obtaining service please contact the Beko Customer Help-Line. Tel: 0845 6004911 e-mail: service@beko.co.uk...
