RTA 460BSDFM-NNA1 Product User Manual

Protocol gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

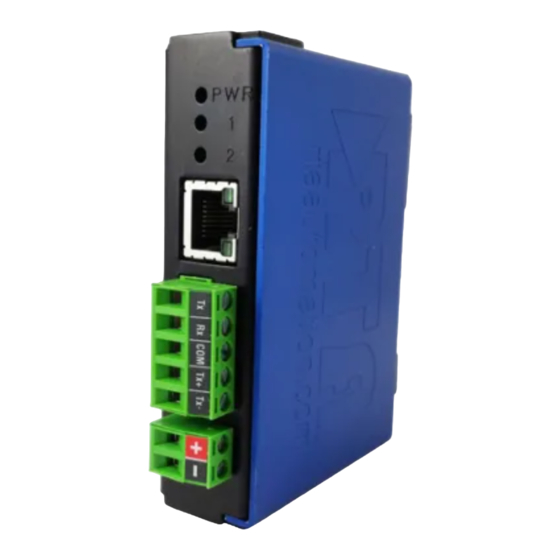

460BSDFM-NNA1
Protocol Gateway
Product User Guide
Firmware Version 8.7.22
Real Time Automation, Inc.
1
1-800-249-1612

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 460BSDFM-NNA1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RTA 460BSDFM-NNA1

Summary of Contents for RTA 460BSDFM-NNA1

  • Page 1 460BSDFM-NNA1 Protocol Gateway Product User Guide Firmware Version 8.7.22 Real Time Automation, Inc. 1-800-249-1612...
  • Page 2 Trademarks CompactLogix, ControlLogix, & PLC-5 are registered trademarks of Rockwell Automation, Inc. EtherNet/IP is a trademark of the ODVA. MicroLogix, RSLogix 500, and SLC are trademarks of Rockwell Automation, Inc. Microsoft, Windows, and Internet Explorer are registered ® trademarks of Microsoft Corporation. BACnet is a registered trademark of American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE).

  • Page 3: Table Of Contents

    Revision History ............................6 Overview ............................... 7 Hardware Platforms ............................8 Hardware – NNA1 ............................. 9 Powering the Gateway ..........................9 Port Configuration ........................... 10 RS232 pinouts: ............................10 RS485 pinouts: ............................10 Mounting with a DIN Rail ..........................11 Installing ..............................
  • Page 4 Display String............................35 Display String use case ..........................37 Data and String Mapping – Auto-Configure....................38 Data Mapping – Explanation ........................39 Data Mapping – Adding Diagnostic Information ..................40 String Mapping – Explanation ........................44 Mapping – Auto-Configure Mode to Manual Configure Mode ..............45 Mapping –...
  • Page 5 Utilities ................................ 72 Real Time Automation, Inc. 1-800-249-1612...

  • Page 6: Revision History

    Revision History Version Date Notes 8.4.5 11/18/2019 Features Added 1. Released OPC UA Server (US) Protocol 2. Ability to now Import/Export Template Files with out an FTP session. Bug Fixes 1. Updated Profinet Server (PS) on N34 hardware Platform 2. Updated Wi-Fi software 2/28/20 8.6.0 Bug Fixes...

  • Page 7: Overview

    Overview The 460BSDFM-NNA1 gateway connects a BACnet/IP Client with as many as 32 DF1 Slaves. By following this guide, you will be able to configure the 460BSDFM-NNA1 gateway. For further customization and advanced use, please reference the appendices located on the CD or online at: http://www.rtautomation.com/product/460-gateway-support/.

  • Page 8: Hardware Platforms

    Hardware Platforms The 460 Product Line supports a number of different hardware platforms. There are differences in how they are powered, what serial settings are supported, and some diagnostic features supported (such as LEDs). For these sections, be sure to identify the hardware platform you are using. To find which hardware platform you are using: 1) Look on the front or back label of the unit for the part number.

  • Page 9: Hardware - Nna1

    Hardware – NNA1 Powering the Gateway 1) Connect a 12-24 VDC power source to the gateway, Red Wire = (+) Black Wire = (-). a) The unit draws 175mA @ 12 V. Real Time Automation, Inc. 1-800-249-1612...

  • Page 10: Port Configuration

    Port Configuration The Port Configuration page is where you set port specific parameters. These settings must match the settings of the device(s) that you are connecting to. Only 1 mode can be configured for this hardware. Below are the wiring pinouts for each mode. When you have completed your port configuration, click the Save Parameters button.

  • Page 11: Mounting With A Din Rail

    1) Mount your DIN Rail. 2) Hook the bottom mounting flange under the DIN Rail. 3) While pressing the 460BSDFM-NNA1 against the rail, press up to engage the spring loaded lower clip and rotate the unit parallel to the DIN Rail.

  • Page 12: Accessing The Main Page

    Accessing the Main Page The following steps will help you access the browser based configuration of the gateway. By default, DHCP is enabled. If the gateway fails to obtain an IP address over DHCP it will Auto IP with 169.254.X.Y. For more information on your Operating system network setting refer to the Access Browser Configuration Doc on the CD or download from our support web site.

  • Page 13: Error: Main Page Does Not Launch

    Error: Main Page Does Not Launch If the Main Page does not launch, please verify the following: 1) Check that the PC is set for a valid IP Address a. Open a MS-DOS Command Prompt b. Type “ipconfig” and press enter c.

  • Page 14: Committing Changes To The Settings

    Committing Changes to the Settings • All changes made to the settings of the gateway in Configuration Mode will not take effect until the gateway is restarted via the webpage. Changes will not be stored if the gateway’s power is removed prior to a reboot.

  • Page 15: Main Page

    Main Page The main page is where important information about your gateway and its connections are displayed. Mode (orange box below): Running Mode: Protocol communications are enabled Configuration cannot be changed during Running Mode. If changes are needed, click the Configuration Mode button shown in the green box below...

  • Page 16: Device Configuration

    Device Configuration The device configuration area is where you assign the device description parameter. Changes can only be made when the gateway is in Configuration Mode. Once you are done configuring the Description, click the Save Parameters button. Real Time Automation, Inc. 1-800-249-1612...

  • Page 17: Network Configuration

    Network Configuration The network configuration area is where you assign the IP address and other network parameters. Changes can only be made when the gateway is in Configuration Mode. Once you are done configuring the Network Settings, click the Save Parameters button. If you are changing the IP Address of the gateway, the change will not take effect until the unit has been rebooted.

  • Page 18: Bacnet/Ip Server Configuration

    BACnet/IP Server Configuration Click the BACnet/IP Server button to access the primary configuration page for this device. 1) Select which Network Interface to use for this BACnet/IP connection. If using single port hardware, the Network Interface will default to Ethernet Port only. 2) Enter a Device Label.

  • Page 19: Bacnet/Ip Server Configuration-Data Groups

    BACnet/IP Server Configuration-Data Groups The bottom area of the BACnet/IP Server Configuration page lets you configure multiple objects for read and write groups. There are two ways to configure this protocol: 1) Auto-Configure Group by Data Type (Default) 2) Manual Configure Mode NOTE: You may go back and forth between modes, but when reverting from Manual Configure Mode to Auto-Configure Mode, all changes made in Manual Mode will be discarded.
  • Page 20 Real Time Automation, Inc. 1-800-249-1612...

  • Page 21: Bacnet/Ip Server Configuration: Auto-Configure Mode (Default)

    BACnet/IP Server Configuration: Auto-Configure Mode (Default) While in Auto-Configure Mode, no fields under the data groups can be edited. Auto-Configure Mode looks at the other protocol and then configures the data groups below to match. BACnet/IP points will be defined after the other protocol is configured. Within the BACnet/IP server, the data will automatically be configured according to the following rules: 3) Any 8 Bit Signed/Unsigned, 16 Bit Signed/Unsigned, 32 Bit Signed/Unsigned, 64 Bit Signed/Unsigned, 32 Bit Float, and 64 Bit Float data will be mapped as Analog Objects.

  • Page 22: Bacnet/Ip Server Configuration: Manual Configure Mode

    BACnet/IP Server Configuration: Manual Configure Mode 1) To transition from Auto-Configure Mode to Manual Configure Mode, click the dropdown in the middle of the BACnet/IP Server Configuration page and select Manual Configure. a. When prompted, click OK to confirm mode change or Cancel to remain in Auto- Configure Mode.

  • Page 23: Bacnet/Ip Server Object Configuration - Analog Objects

    These group names are defined on this page under the “Group Name” dropdown menu. b) Use case example: If there are multiple server/slave devices the RTA gateway is monitoring and sending over to the Build Automation System (BAS) to monitor, you can configure the group to represent each device.

  • Page 24: Bacnet/Ip Server Object Configuration - Binary Objects

    BACnet/IP Server Object Configuration – Binary Objects Click the Set Up BACnet Names, Units, and COV button at the bottom of the BACnet/IP Server Configuration page to access the Object Configuration page for this device. When in Auto-Configure Mode, these fields are not configurable. Follow these steps to configure binary inputs or outputs in Manual Configure Mode: 1) Select Binary Input or Binary Output from the upper left dropdown menu.

  • Page 25: Bacnet/Ip Server Object Configuration - Characterstring Value Objects

    BACnet/IP Server Object Configuration – CharacterString Value Objects Click the Set Up BACnet Names, Units, and COV button at the bottom of the BACnet/IP Server Configuration page to access the Object Configuration page for this device. When in Auto-Configure Mode, these fields are not configurable. Follow these steps to configure CharacterString value reads and writes in Manual Configure Mode: 1) Select CharacterString Value Read or CharacterString Value Write from the upper left dropdown menu.

  • Page 26: Bacnet/Ip Server Object Configuration - Group Names

    BACnet/IP Server Object Configuration – Group Names Click the Set Up BACnet Names, Units, and COV button at the bottom of the BACnet/IP Server Configuration page. When in Auto-Configure Mode, these fields are not configurable. The Group Name is designed to be used when there are multiple BACnet/IP objects that have the same name.

  • Page 27: Bacnet/Ip Server Routing Configuration

    BACnet/IP Server Routing Configuration Click the Foreign Device Registration button at the bottom of the BACnet/IP Server Configuration page to access the BACnet Routing Configuration page for this device. These settings are used when connecting to a BACnet/IP client on a different subnet. 1) Foreign Device Registration (recommended): This option can be used ONLY when the BACnet/IP Broadcast Management Device (BBMD) device on the other subnet (often integrated into client devices) supports Foreign Device Registration.

  • Page 28: Df1 Master Configuration

    DF1 Master Configuration Click the DF1 Master button to access the configuration page. 1) Serial Port: Select which serial port is being used for communication. This port must be configured on the Port Configuration page. If it has not yet been configured, it will display Disabled after the port descriptions in this dropdown.

  • Page 29: Df1 Master Device Configuration

    DF1 Master Device Configuration The bottom area of the DF1 Master Configuration page lets you configure up to 32 external DF1 slave devices. 1) To add additional slave connections, click the -Select- dropdown under DF1 Master Device List and select Add Generic Slave option. a) If you are configuring multiple devices click <<...

  • Page 30: Configuring Read Scan Lines

    Configuring Read Scan Lines Follow these steps to manually configure read scan lines. 1) Select View Read Scan Lines if not already selected. 2) Select a File Type for each scan line. Options include: B (Binary), N (Int), F (Real), and ST (String). 3) Enter the File Number for the File Type selected.

  • Page 31: Mapping - Transferring Data Between Devices

    Mapping - Transferring Data Between Devices There are 5 ways to move data from one protocol to the other. You can combine any of the following options to customize your gateway as needed. Option 1 – Data Auto-Configure Mappings: The gateway will automatically take the data type (excluding strings) from one protocol and look for the same data type defined in the other protocol.

  • Page 32: Display Mapping And Values

    Display Mapping and Values The Display Data and Display String pages are where you can view the actual data for each mapping that is set up. Display Data Click the Display Data button to view how the data is mapped and what the values of each mapping are. Here you will see how each data point (excluding strings) is mapped.
  • Page 33 This page is very useful when verifying that all data is mapped somehow from one protocol to another. If a data point is not mapped, it will display on this page in a yellow highlighted box. The Display Data page will display up to 200 mappings per page, simply navigate to the next page for the additional mapping to display.
  • Page 34 To view the actual data mappings, click the Edit Mapping button. For more details, see the Data Mapping-Explanation section. To view the data mappings purely as text, click the View as Text button. For more details, see the View Data Mapping as Text section. Real Time Automation, Inc.

  • Page 35: Display String

    Display String Click the Display String button to view what the values of each Parsing and/or Concatenating strings are, you can also click on the Edit Mapping to view the mapping of each string. To view the source or destination groups from a string, click the dropdown menu to generate the information regarding that device.
  • Page 36 If there are values of “Data Not Valid “on this page, it indicates that the source has not been validated yet and no data is being sent to the destination. NOTE: You can view the whole string data by clicking on Diagnostics Info drop down and navigating to ASCII Diagnostics page.

  • Page 37: Display String Use Case

    Display String use case Sending a message of “RTA,Support,Rocks” from an ASCII device to the RTA unit. The ASCII Parsing Configuration would look like my example below. There are more detailed examples of what all the fields represent in the ASCII Parsing section.

  • Page 38: Data And String Mapping - Auto-Configure

    Data and String Mapping – Auto-Configure The Auto-Configure function looks at both protocols and will map the data between the two protocols as best as it can so that all data is mapped. Inputs of like data types will map to outputs of the other protocols like data types first.

  • Page 39: Data Mapping - Explanation

    Data Mapping – Explanation Below are the different parts that can be modified to make up a data mapping. 1) Enable (red box above): Check to enable mapping. If not checked, this mapping is skipped. 2) Source Field (yellow box above): a) Group - Select the data group you set up in the protocol config to use for this mapping.

  • Page 40: Data Mapping - Adding Diagnostic Information

    The gateway operates at 200 ticks per second. This equates to one tick every 5ms. Thus, mapping this to a destination will give easy confirmation of data flow without involving one of the two protocols. If data stops on the destination end, then the RTA is offline. Real Time Automation, Inc.
  • Page 41 4) XY_NetBmpStat a) If a protocol is a Client/Master, there is a Network Bitmap Status that is provided on the Diagnostics Info page under the Variables section. b) Since a Client/Master may be trying to communicate with multiple devices on the network, it may be beneficial to know if a Server/Slave device is down.
  • Page 42 5) Status_XY a) There are two Statuses provided, one for each protocol. This gives access to the overall status of that Protocol. Each Bit has its own meaning as follows: Common Status: 0x000000FF (bit 0-7)1 byte Hex: Bit Position: Decimal: Explanation: 0x00 if we are a Slave/Server...
  • Page 43 Non-Recoverable Faults 0xFF000000 (bit 24-31)4 byte Hex: Bit Position: Decimal: Explanation: 0x01 16,777,216 nonrecoverable fault – task fatal err 0x02 33,554,432 nonrecoverable fault – config missing 0x04 67,108,864 nonrecoverable fault – bad hardware port 0x08 134,217,728 nonrecoverable fault – config err 0x10 268,435,456 Configuration Mode...

  • Page 44: String Mapping - Explanation

    String Mapping – Explanation Below are the different parts that can be modified to make up a string mapping. String data types can only be mapped to other string data types. There is no manipulation that can be done on the string. 1) Enable (red box above): Check to enable mapping.

  • Page 45: Mapping - Auto-Configure Mode To Manual Configure Mode

    Mapping – Auto-Configure Mode to Manual Configure Mode To transition from Auto-Configure Mapping Mode to Manual Configure Mode, click the dropdown at the top of the Mapping Configuration page and select Manual Configure. After you click this button, you will be prompted to confirm if this is really what you want to do. Click OK to proceed to Manual Configure Mode or click Cancel to remain in Auto-Configure Mappings Mode.

  • Page 46: Mapping - Manual Configure Mode To Auto-Configure Mode

    Mapping – Manual Configure Mode to Auto-Configure Mode To transition from Manual Configure Mode to Auto-Configure Mapping Mode, click the dropdown menu at the top of the Mapping Configuration page and select Auto-Configure Mappings. Click OK to proceed to delete all current mappings and go back to Auto-Configure Mappings Mode. Click Cancel to keep all mappings and remain in Manual Configure Mode.

  • Page 47: View As Text

    View as Text Data Mapping The View as Text page displays the point to point mapping(s) you set up in the Data Mapping section. This will also display any manipulation(s) that are configured. Each line on this page will read as follows: ->...

  • Page 48: Base Triggering - Data Validiation Triggering

    Note: # is an internal reference to the Server/Slave number you are settings up. ex. RTA Server/Slave products can only be Trigger 1 and Handshake 1 since we are only 1 device. If RTA is a Master/Client, then you can have a Trigger# for each server/slave connected too.
  • Page 49 3) Within the Data Mapping page manually add 2 additional mappings. 4) The first mapping is going to be the Data Validation Triggering. AO21 will write to the RTA, MC Trigger 1 will mark data invalid. 5) The second mapping, the MC Handshake will increment that all data is validated and write to AI21 “all data is validated”.

  • Page 50: Security Configuration

    Security Configuration To setup security on the 460 gateway, navigate to Other->Security Configuration. You can configure Security for 3 administrators, 5 users, and 1 guest. THIS IS A TOTAL SECURITY FEATURE The security feature offers a way to password protect access to diagnostics and configuration on the network.

  • Page 51: Security Configuration-Security Levels

    Security Configuration-Security Levels Each webpage in the gateway can have a separate security level associated with it for each user. Security Levels: 1) Full Access: Capability to view and configure a web page. 2) View Access: Capability to view a web page, but cannot configure parameters. 3) No Access: No capability of viewing the web page and page will be removed from Navigation.

  • Page 52: Security - Log In

    Security - Log In Username: Name of the user to login. Password: Password of the user to login. Log In: If login is successful, the user will be redirected to the Main Page. Send Password to Email: Sends the specified User’s Password to the email configured for that user. Display Hint: Displays the hint specified for the User if one was set up.

  • Page 53: Email Configuration

    Email Configuration To setup e-mails on the 460 gateway, navigate to Other->Email Configuration. You can configure up to 10 email addresses. 1) SMTP Mail Username: The email address that the SMTP server has set up to use. 2) SMTP Mail Password: If authentication is required, enter the SMTP Server’s password (Optional). 3) SMTP Server: Enter the Name of the SMTP Server or the IP Address of the Server.

  • Page 54: Alarm Configuration

    Alarm Configuration To setup alarms on the 460 gateway, navigate to Other->Alarm Configuration. 1) Alarm Delay upon Powerup: At Powerup, the gateway will have values of ‘0’ stored for all data. This may cause alarms to trigger before these values are updated by the mating protocols. Set this field to provide needed time to update fields before considering values for alarms.
  • Page 55 5) In the Clear Error Section: a. Select the Clear Error Operation. Available options are <, >, <=, >=, !=, ==, and Change of State (COS). This is the operation that will be used to compare the Data Point value against the Error Value to determine if the alarm needs to be cleared.

  • Page 56: Diagnostics - Alarm Status

    Diagnostics – Alarm Status Alarm Status will only display under the Diagnostic menu tab if at least 1 Alarm is enabled. 1) # Alarms Enabled: This is a count of enabled alarms. 2) # Alarms Active: This is how many alarms are presently active (set). 3) Last Active Alarm: This is the last alarm that the gateway detected.

  • Page 57: Alarms - Clear

    5) Last Active Alarm field will be populated with details on what triggered the alarm. Alarms – Clear When an alarm is cleared, the following will occur: 1) A one-time notification will be sent to the email associated with the alarm. a.

  • Page 58: Change Of State (Cos) Configuration

    Change of State (COS) Configuration To access the configuration files in the 460 gateway, navigate to dropdown Other->COS Configuration. The gateway, by default only writes when data has changed. The gateway also waits to write any data to the destination until the source protocol is successfully connected. Default values should fit most applications.

  • Page 59: Diagnostics Info

    Diagnostics Info The Diagnostics page is where you can view both protocols’ diagnostics information, # of Data Mappings, # of String Mapping and # Alarm Mappings. For protocol specific diagnostic information, refer to the next few pages. Diagnostics Mapping This section displays the number of mappings that are enabled, Data Mapping and String Mapping will show the # of Errors and First Errors.

  • Page 60: Diagnostics - Bacnet/Ip Server

    Diagnostics – BACnet/IP Server Select the BACnet/IP Server in the drop-down menu on the Diagnostics Page. Additional diagnostic information can be found by clicking the Help button. NOTE: This page will auto-refresh every five seconds with the latest data. Clear All Values - This will only affect displayed values. 1) This will reset all displayed values back to zero and clear the Status Strings.
  • Page 61 Variables: 1) Total Msg Request Count – Total number of messages received from the BACnet/IP client. 2) Read Property Request Received – Number of Read Property requests received from the BACnet/IP client. 3) Read Multiple Property Request Received – Number of Read Property Multiple requests received from the BACnet/IP client.
  • Page 62 a) “Buffer Overflow” – The BACnet/IP client is asking for too much information in a single message. b) “Invalid ADPU” – The gateway is not able to process the message, try again later. c) “Preempted by Higher Priority” – The BACnet/IP client message has aborted due to a higher priority task, try again later.

  • Page 63: Diagnostics - Df1 Master

    Diagnostics – DF1 Master Select the DF1 Master in the top dropdown menu on the Diagnostics Page to view a breakdown of the diagnostics and common strings that are displayed on the page. You may also view individual slave counters by selecting the device in the All Slaves dropdown and clicking View. Additional diagnostic information can be found by clicking the Help button.
  • Page 64 1) Connected and Running– The gateway is connected to all the DF1 slaves. 2) Error: Timeout – No DF1 scan lines are configured under an enabled slave. a) Or, one or more enabled DF1 slaves are missing. b) Verify DF1 device for correct Destination ID. c) Verify that Port Settings used match the DF1 slave(s) that the gateway is communicating with.
  • Page 65 7) Solid Red (Fatal Error) – The serial port selected on the DF1 Master Configuration page is not configured. a) Verify that DF1 has an enabled port selected. If needed, configure port settings. Variables - These are the values for All Slaves, or the specific slave selected. 1) Network Bitmap Status (Displayed in Hex): a) Each bit corresponds to a slave.
  • Page 66 Error Code Breakdown: Format of Error: STS='Err Code', EXT_STS='Err Code' (N:'Slave Destination ID' A:'DF1 Request Address in Offset Notation' L:'Number of points to Read') 1) STS='Err Code', EXT_STS='Err Code' (N:'Slave Destination ID' A:'DF1 Request Address in Offset Notation' L:'Number of points to Read/Write') a) Note: The Slave Destination ID will inform you of the device that had the error.

  • Page 67: Led Configuration

    LED Configuration To modify the behavior of the LEDs on the 460 gateway, navigate to Other->Setup LEDs. Each LED may be set to Disabled, Protocol 1, or Protocol 2. If either protocol is a master/client, you may set the LED to represent either all slaves/servers configured in the gateway or a slave/server device. To select a slave/server device: 1) Select the protocol in the left dropdown menu.

  • Page 68: Configuration Files

    Configuration Files To access the configuration file in the 460 gateway, select the dropdown Other->Export/Import Config. Export Configuration The Export Configuration allows you to save your configuration file for backup or to be imported into another gateway. This file is named rta_cfg.rtax by default. Upon clicking the Save Configuration to File button, you will be prompted to select a location to save the file.
  • Page 69 If it encountered an error while trying to load the saved configuration, the gateway will indicate the first error it found and a brief description about it under the Load Configuration button. Contact RTA Support with a screenshot of this error to further troubleshoot.

  • Page 70: Save And Replace Configuration Using Sd Card

    Save and Replace Configuration Using SD Card Saving Configuration Using SD Card This function saves the gateway’s configuration automatically to an SD Card each time the gateway is rebooted via the Restart Now button on the web page. If this unit should fail in the future, the last configuration stored on the SD card and can be used for a new gateway to get the application back up and running quickly.

  • Page 71: Intelligent Reset Button

    Intelligent Reset Button If the IP Address of the gateway is forgotten or is unknown, there is an easy way to recover the IP Address using a reset button on the hardware. 1) On the side of the gateway with the SD card slot, there is a small pinhole. Using a paperclip, press the button through this pinhole and hold the button for at least 5 seconds.
  • Page 72 Utilities To access the Utilities page in the 460 gateway, navigate to Other->Utilities. The Utilities screen displays information about the gateway including Operation Time, File System Usage, Memory Usage, and Memory Block Usage. Here you can also: • View the full revision of the software. •...
