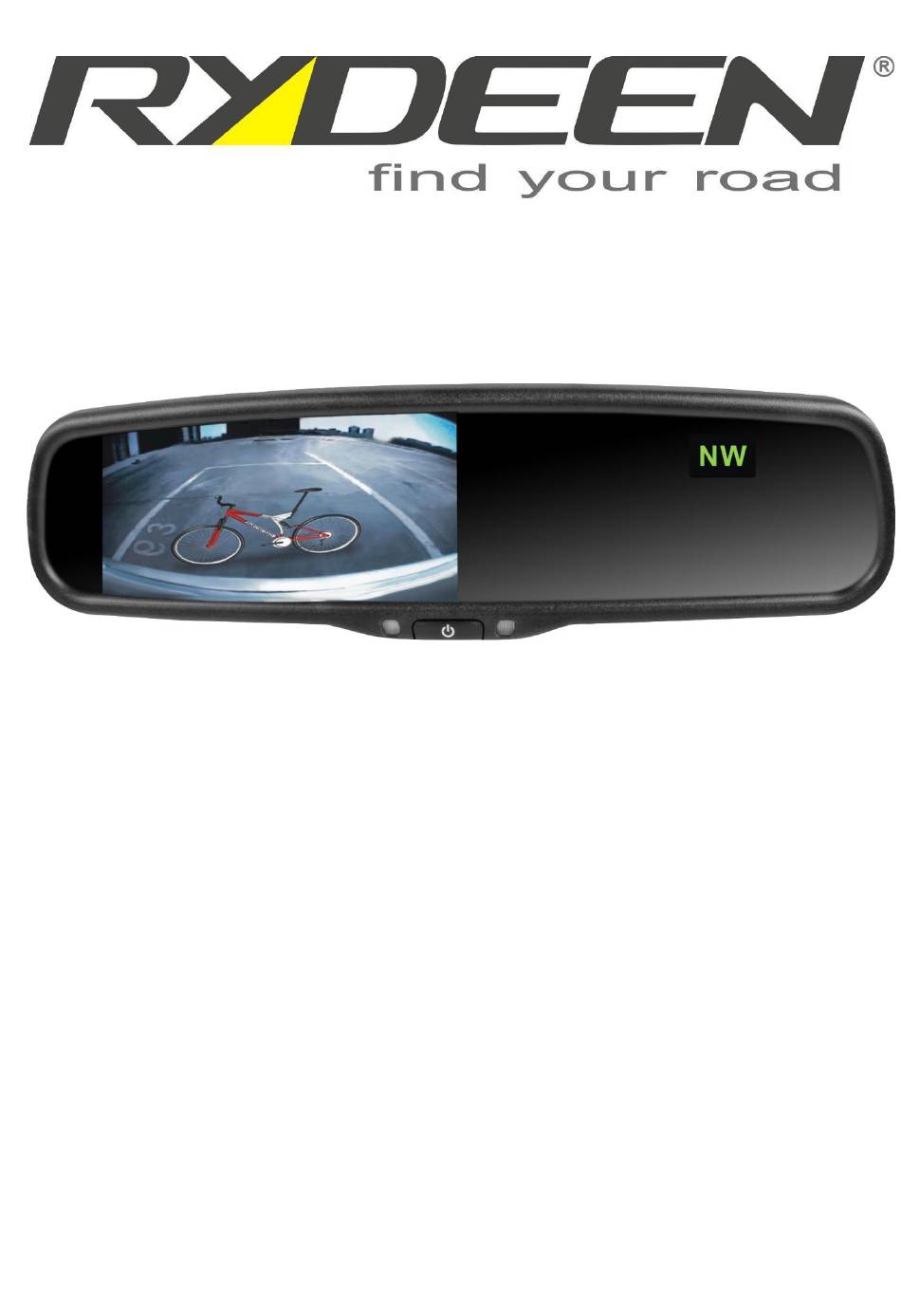

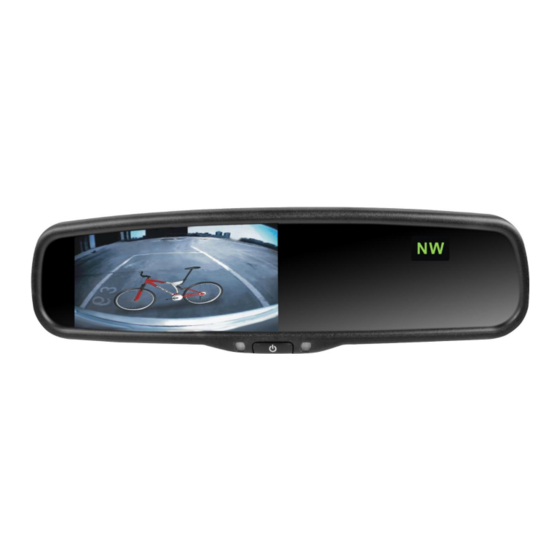

- Page 1 Owner’s Manual MV433T Replacement Mirror Monitor System with Temperature & Compass Display V1.0...
- Page 2 PROFESSIONAL INSTALLATION BY AUTHORIZED RYDEEN RETAILER REQUIRED TO BE COVERED UNDER WARRANTY. Dropping your MV433T unit or subjecting it to excessive shock and vibrations as this may cause it to malfunction and is not covered by warranty. MV433T unit IS NOT WATERPROOF.
- Page 3 3) Remove the knee bolster on the driver side as well as the A-pillar cover (it may also be necessary to remove the sun visor and maybe even the overhead console in order to freely route the power harness from the knee bolster to the mirror connector).
- Page 4 3. Setup 1) Turn Ignition ON 2) If AUX video 1 source is connected (turn video source ON then press PWR button on mirror and the image should appear on screen) 3) Shift vehicle into reverse, the camera image will appear on the screen 4) Shift vehicle out of reverse and the camera image will disappear and go back to its previous stage 5) Press the key...
- Page 5 Press once to adjust Compass(﹣25° ～﹢25° ) Find out the magnetic declination of the certain area. Automatic Compass Calibration “A-“ for 3 seconds to save the previous setting then enters the Automatic Compass Hold Calibration “A-“. The mirror will start counting from 0-200 Starting from 20 seconds, put the vehicle in drive and drive the vehicle less than 5MPH going counter clockwise.
- Page 6 ON/OFF temperature/compass display Press and Hold key for 6 seconds to enter settings 5. Removable Mount Structure MV433T is equipped with the removable mounting stem structure, which allows to exchange with the following available ball joint mounting stems.
- Page 7 A: Connect the Green jumper at the camera harness to turn the parking line feature OFF. 7. Technical Support Contact Info If you have other questions about the RYDEEN MV433T, please contact your retailer or Technical Support: Telephone: 1-877-777-8811 (within USA only) ...
- Page 8 (MV433T) only to the original purchaser as described by the following: Warranty Period Rydeen warrants this product for a period of one (1) year from the original purchase date. Warranty Coverage This warranty covers all defects in material and workmanship except as specified below.
