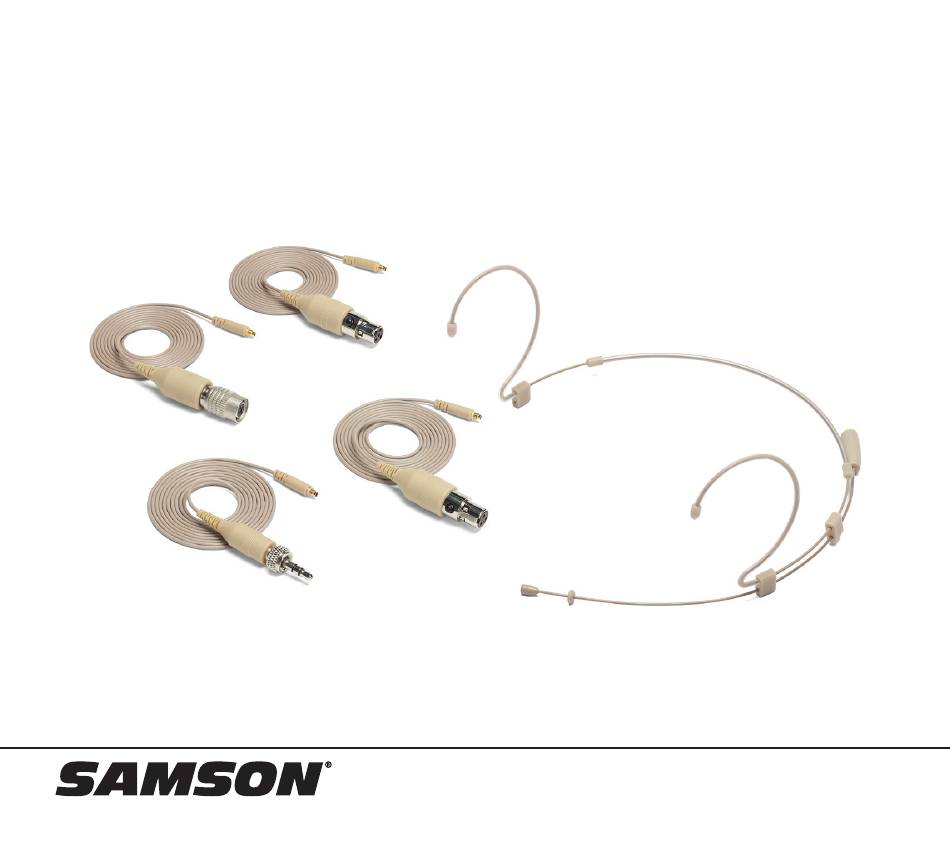

- Page 1 DE10x Headset Microphone Owner’s Manual...
- Page 2 By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. Copyright 2019, Samson Technologies Corp. v1.2 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com...
- Page 3 Should your DE10x Headset Microphone ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton.
- Page 4 Features • Headset microphone with 3mm miniature condenser mic capsule • Low-profile, double ear design with adjustable frame and mic boom • Ideal for live and broadcast vocal applications • Omnidirectional pickup pattern • 20Hz–20kHz frequency response • Gold-plated connector, moisture-resistant coating and stainless steel mesh grille •...
- Page 5 Fitting the DE10x Microphone The headset can be re-sized by sliding the Adjust the microphone position by holding the ear hooks to fit snug around your head. If the left ear hook wire and slide the boom forward or DE10x is loose and will not stay in place, slide back.
-
Page 6: Connector Cables
Hirose 4-Pin Connector ® Works with most Audio-Technica wireless systems ® Switchcraft TA3F Connector ® Works with Samson AirLine ATX Series, Concert Series and most AKG wireless systems ® Switchcraft TA4F Connector ® Works with most Shure wireless systems ®... - Page 7 Connector Cables The DE10x includes four cables with connectors to use with the most popular wireless body pack systems. To connect the cable to the headset: Choose the right cable and connector that works with your wireless system. Line the cable up to the threaded terminal on the back of the DE10x and screw the cable into the headset.
- Page 8 Mic Positioning Position the DE10x microphone element about If the microphone is too far away from your 0.25” – 1” behind the corner of your mouth. mouth you will need to increase the gain and Since the DE10x is an omnidirectional capsule, reduce isolation.
-
Page 9: Specifications
1/8” (3.5mm), Hirose 4-Pin, Switchcraft TA3F, ® ® Switchcraft TA4F ® Accessories: (4) Windscreens, Clothing Collar Clip, Carry Case At Samson, we are continually improving our products, therefore specifications and images are subject to change without notice. DE10x Headset Microphone... - Page 10 Specifications 0° 45° 45° 90° 90° 135° 135° 180° Polar Pattern 1000 2000 5000 10000 20000 Hz Frequency in Hz Frequency Response...
- Page 12 Samson Technologies Corp. 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com...
