EMG DG-20 Installation Information

INSTALLATION INFORMATION
EMG MODEL: DG-20
(PRO-SERIES ASSEMBLY)
General INFORMATION:

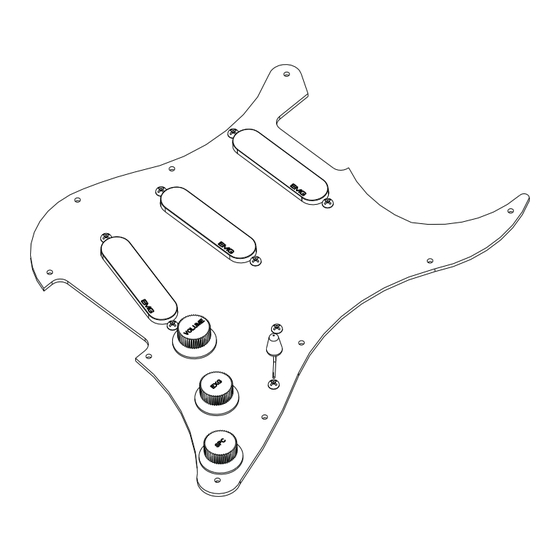

The DG-20 is a pre-wired pickguard assembly that has been used by David Gilmour (Pink Floyd) since 1985. It has 3 of our EMG-SA Pickups
installed, 5 position selection switch and also includes our EXG and SPC Accessory circuits. The SA Pickups feature an Alnico Bar magnet for
smooth string bending and amazing sustain. The EXG control adds the feature of boosting both low and high frequencies while the SPC is a
mid-boost designed to enhance the mid-range response of the instrument. The EXG and SPC controls are effective when turned clockwise, and
fully bypassed when they are turned counter-clockwise.
0.025 LOG FREQ (kHz)
0.025 LOG FREQ (kHz)
SPECIFICATIONS:
Logo Color
Magnet Type
Resonant Frequency (KHz)
Output Voltage (String)
Output Voltage (Strum)
Output Noise (60 Hz)
Output Impedance (Ohm/System)
Current @9V (Milliamps/Complete System)
Battery Life (Hours)
Supply (Volts DC)
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2009 Copyright EMG INC. All Rights Reserved.
DG20 Page 1
10
EXG
SPC
10
MODEL:
SA Pickup
Gold
Alnico
4.45
1.00
1.50
-91
2000
1.20
200
9
VOLUME
EXG
Filter Frequency Low / High
45hz / 4.5Khz
SPC
Mid
600Hz
