Airlogic ABM-400 Series Application Note

Class2 bluetooth module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1. Module Features
-Bluetooth™ V1.2 Compliant
-Transmit Power +4dBm(Class2)
-2.8V to 3.8V Operation
-Dual UART Port
-16-bit Stereo Audio CODEC

2. General Description

ABM-400-Mxxx is a Class2 surface mountable
Bluetooth™ Module for AV systems .
It provides fully compliant Bluetooth system
for data and voice communications. Physical
interface to host (UART, USB) can support
full Bluetooth data rate 723.2k/57.6kbps.
A-Law, µ-Law,13bit or 16bit linear PCM,
8k sample/sec synchronous bidirectional
audio interface is also available.
3. Applications
-Stereo Headphones
-Echo cancellation
-Automotive hands free kits
-High Performance Telephony Personal
-Enhanced Audio Applications

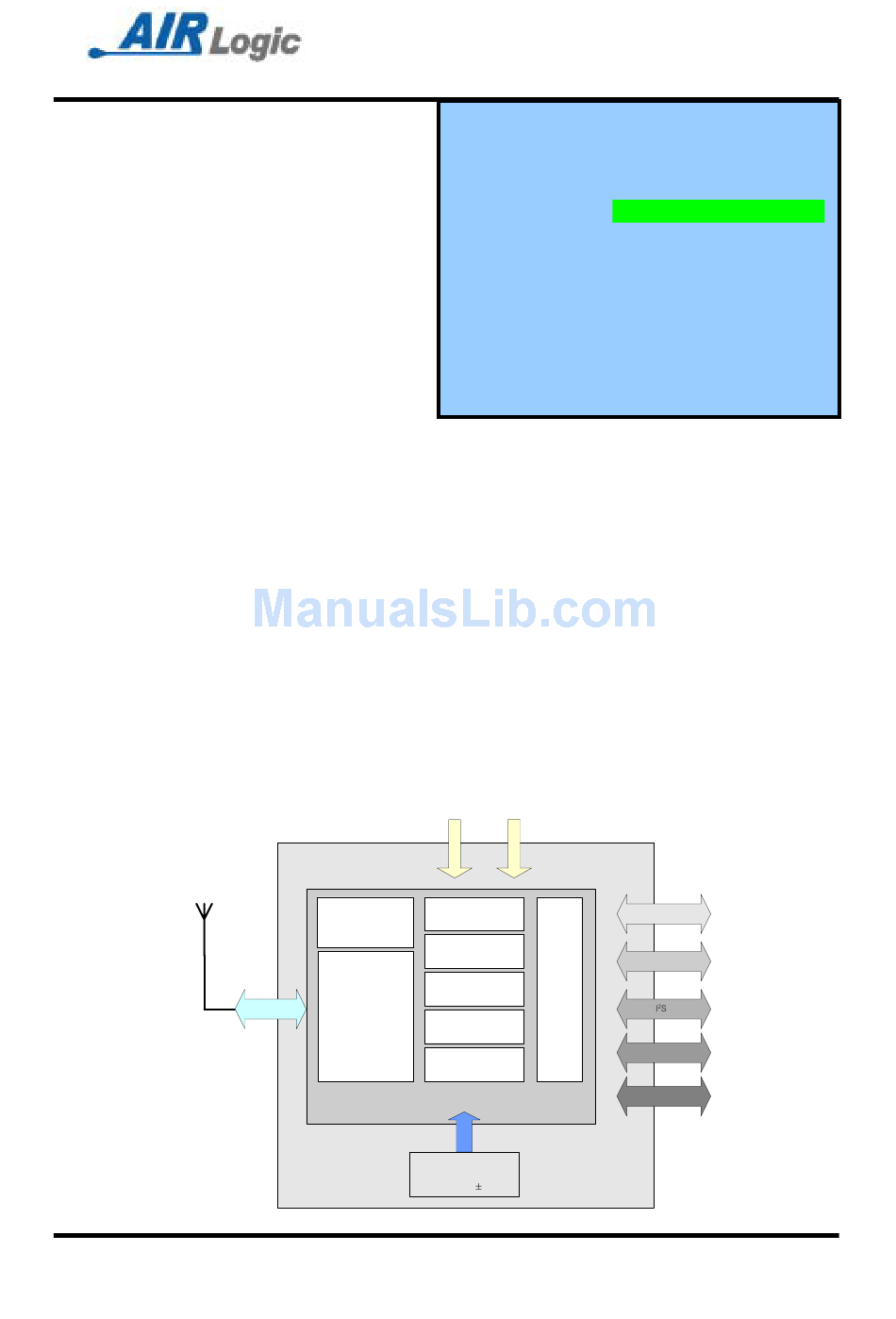

ANT
All specification are preliminary and AirLogic reserves the right to change these without notice.
Bluetooth™ Module Application Note
ABM-400-Mxxx
Voltage
Regulator
1.8V core
2.4GHz
TX / RX
2.4GHz
Radio
BlueCore3 - Multimedia
Copyright © 2005 AirLogic Co., Ltd.
http://www.airlogic.co.kr
ABM-400-Mxxx
Class2 Bluetooth Module
Production Information Data Sheet
4. Features
-Size(12.5 x 15 x 2.5 mm)
-Class2 Support(+4dBm)
-Surface Mountable
-Support PCM interface for SCO
-16bit stereo Audio Codec
5. Specification
-Operating Conditions
Supply Voltage.............VDD: 2.8V ~3.8V
Temperature Range........ -10~+55°C
-Radio Characteristics
Receiver Sensitivity ........-80dBm
Transmitter Power...........+2.0dBm(Typical)
VDD_IO
VDD _CORE
1.8~3.6V
1.8V
8M bit
FLASH
32K byte
RAM
Baseband
IO
DSP
MCU
Kalimba
DSP
16MHz X-Tal
CL : 10pF
Tolerence :
10ppm
ID : ABM-400-Mxxx
NOV.2005
Ver. 1.3
SPI
UART/USB
PCM/
/SPDIF
PIO
Audio IN/OUT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABM-400 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Airlogic ABM-400 Series

  • Page 1: General Description

    -Automotive hands free kits -High Performance Telephony Personal -Enhanced Audio Applications 2.4GHz TX / RX All specification are preliminary and AirLogic reserves the right to change these without notice. Bluetooth™ Module Application Note Class2 Bluetooth Module Production Information Data Sheet 4. Features -Size(12.5 x 15 x 2.5 mm)

  • Page 2: Electrical Characteristics

    30MHz-2000MHz 2000MHz-2400MHz Blocking performance 2500MHz-3000MHz 3000MHz-12.75MHz Intermodulation Performance Maximun Input Level All specification are preliminary and AirLogic reserves the right to change these without notice. Bluetooth™ Module Application Note -0.4 +0.4 Condition Normal/extreme test Normal/extreme test Normal/extreme test Normal/extreme test...

  • Page 3: Pin Description

    PIO(10) Programmable I/O Terminal PIO(8) Programmable I/O Terminal PIO(3) Programmable I/O Terminal Common ground Copyright © 2005 AirLogic Co., Ltd. All specification are preliminary and AirLogic reserves the right to change these without notice. Bluetooth™ Module Application Note Description http://www.airlogic.co.kr...

  • Page 4: Power Supply

    VDD_CORE connected 1.8V. 10. RESET ABM-400-Mxxx may be reset from several source : RESET_IN pin, power on reset, a UART break character or via a software configured watchdog timer. The RESET_IN pin is an active high reset and is internally filtered using the internal low frequency clock oscillator.

  • Page 5: Uart Interface

    * Supply VDD IO input voltage : 1.8 V * Supply VDD IO input voltage : 3.0 ~ 3.6 V <UART connected to Host PC > Copyright © 2005 AirLogic Co., Ltd. All specification are preliminary and AirLogic reserves the right to change these without notice. http://www.airlogic.co.kr...

  • Page 6: Usb Interface

    Mxxx only supports USB slave operation. ABM-400-Mxxx features an internal USB pull-up resistor. This pulls the USB+ pin weakly high when ABM-400-Mxxx is ready to enumerate. It signal to the PC that it is a full speed(12Mbit/s) USB device. <USB Connections for BUS Power Mode>...

  • Page 7: Audio Interface

    The digital audio bus supports various digital audio bus standard, which include I2S, and the interfaces contained within the IEC 60958 specification such as SPDIF and AES3. Copyright © 2005 AirLogic Co., Ltd. All specification are preliminary and AirLogic reserves the right to change these without notice. Bluetooth™ Module Application Note SPDIF Interface...
  • Page 8 It operates from a single power-supply of 1.8V and uses a minimum of external components. Copyright © 2005 AirLogic Co., Ltd. All specification are preliminary and AirLogic reserves the right to change these without notice. Bluetooth™ Module Application Note http://www.airlogic.co.kr...

  • Page 9: Pcm Interface

    Module firmware. It does not pass through the HCI protocol layer. Hardware on ABM-400-Mxxx allows the data to be sent to the received from a SCO connection.

  • Page 10: Microphone Input

    Bluetooth™ Module Application Note 13.3 Audio Input Stage The input stage of ABM-400-Mxxx consists of a low noise input amplifier, which receives its analogue input signal from pins AUDIO_IN_P_LEFT and AUDIO_IN_N_LEFT to a second- order ADC that outputs a 4MBit/sec single-bit stream into the digital circuitry. The input can be configured to be either single ended or fully differential.

  • Page 11: Line Input

    Bluetooth™ Module Application Note 13.3.2 Line Input If the input gain is set to less than 21dB ABM-400-Mxxx automatically selects line input mode. In this mode the input impedance at AUDIO_IN_N_LEFT, AUDIO_IN_P_LEFT, UDIO_IN_N_RIGHT and AUDIO_IN_P_RIGHT are increased to 130kΩ typically. In line- input mode, the full-scale input signal is about 400mV rms.

  • Page 12: Output Stage

    1MHz. It uses its high open loop gain in the closed loop application circuit to achieve low distortion while operating with low standing current. Copyright © 2005 AirLogic Co., Ltd. All specification are preliminary and AirLogic reserves the right to change these without notice. http://www.airlogic.co.kr...

  • Page 13: Top View

    Unit : mm ABM-400-Mxxx TOP View 12.5 ABM-400-Mxxx PCB Layout (Top view) Copyright © 2005 AirLogic Co., Ltd. All specification are preliminary and AirLogic reserves the right to change these without notice. Bluetooth™ Module Application Note ABM-400-Mxxx Bottom View 1.78 http://www.airlogic.co.kr 1.78...

  • Page 14: Ordering Information

    15. Ordering information A B M 4 0 0 Multimedia All specification are preliminary and AirLogic reserves the right to change these without notice. Bluetooth™ Module Application Note M X X X Interface UA UART BC BCSP Copyright © 2005 , AirLogic Co., Ltd.

  • Page 15: Record Of Changes

    MAY. 2005 NOV. 2005 AirLogic Bluetooth Module Product Data Book Copyright © 2005 AirLogic Co., Ltd. All specification are preliminary and AirLogic reserves the right to change these without notice. Bluetooth Module Application Note Reason of Change -First Issue -Pin assign change...
