LG 32LJ600B Owner's Manual

Hide thumbs Also See for 32LJ600B:
Table of Contents

Advertisement

Quick Links

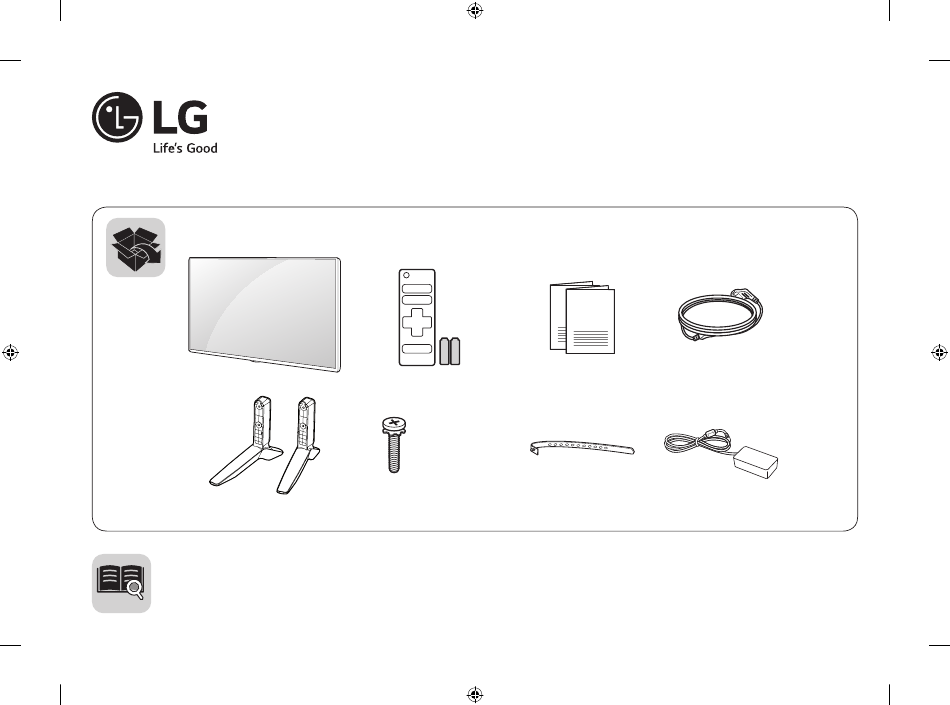

ENGLISH
Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
www.lg.com
AAA
X 4
(M4 x L14)
LED TV
32LJ600B
32LJ600D
P/No: MFL69670626 (1703-REV00)

Advertisement

Table of Contents
loading

Related Manuals for LG 32LJ600B

Summary of Contents for LG 32LJ600B

  • Page 1 LED TV ENGLISH Easy Setup Guide 32LJ600B Please read this manual carefully before operating your set and retain it for future reference. 32LJ600D ESPAÑOL Guía Rápida de Configuración Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
  • Page 2 ENGLISH Read Safety & Reference. ESPAÑOL Leer Seguridad y Consultas.
  • Page 5 DC-IN (19 V...
  • Page 7 : mm : kg 32LJ600B-SA 32LJ600D-DA 32LJ600B-SA 19 V 2.0 A 19 V 2,0 A 42 W 32LJ600D-DA...
  • Page 8 Manufacturer / Fabricante : APD Manufacturer / Fabricante : LG Innotek Model / Modelo : DA-48G19 Model / Modelo : PSAC-L655 32LJ600B-SA Manufacturer / Fabricante : Chicony Manufacturer / Fabricante : Lien Chang 32LJ600D-DA Model / Modelo : A16-048N2A Model / Modelo : LCAP45...

  • Page 9: Safety And Reference

    OWNER’S MANUAL Safety and Reference LED TV* * LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your TV and retain it for future reference. 32LJ600B 43LJ550T 49LJ550T 55LJ550T 32LJ600D 43LJ5500 49LJ5500 55LJ5500...
  • Page 10 Warning! Important Safety • Only use attachments/accessories specified by the manufacturer. instructions • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution Read these instructions. Keep these instructions. when moving the cart/apparatus combination to Heed all warnings.
  • Page 11 • Use only an authorized AC adapter and power lightning rods, or gas pipes. cord approved by LG Electronics. Otherwise, this • As long as this unit is connected to the AC wall may result in fire, electric shock, malfunction, or outlet, it is not disconnected from the AC power product deformation.
  • Page 12 Preparing • DISCONNECTING THE DEVICE FROM THE MAIN POWER The power plug is the disconnecting device. In case of an emergency, the power plug • When the TV is turned on for the first time after must remain readily accessible. being shipped from the factory, initialization of •...
  • Page 13 Lifting and Moving the TV Using the Button When moving or lifting the TV, read the following You can operate the TV by pressing the button. to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

  • Page 14: Mounting On A Table

    We recommend • Do not apply foreign substances (oils, that you use an LG brand wall mount. The LG wall lubricants, etc.) to the screw parts when mount is easy to adjust or to connect the cables.

  • Page 15: Connections (Notifications)

    Connections (Notifications) 49LJ550T 32LJ600B 49LJ5500 32LJ600D 49LJ5550 Model 43LJ550T You can connect various external devices to the TV. 55LJ550T 43LJ5500 Supported external devices are: HD receivers, DVD 55LJ5500 43LJ5550 players, VCRs, audio systems, USB storage devices, 55LJ5550 PC, gaming devices, and other external devices. For...

  • Page 16: Other Connections

    Other Connections (Power) Turns the TV on or off. Connect your TV to external devices. For the best picture and audio quality, connect the external Returns to the last TV channel. device and the TV with the HDMI cable. Toggles between Radio, TV, CATV, •...

  • Page 17: Open Source Software Notice Information

    Displays the program event according to are available for download. time scheduler. LG Electronics will also provide open source code By zooming in on the selected area, you can to you on CD-ROM for a charge covering the cost view it in full screen.

  • Page 18: Specifications

    Specifications • Abnormal Display - If the TV feels cold to the touch, there may be a small flicker when it is turned on. This is normal; there is nothing wrong with TV. Some Product specifications may be changed without minute dot defects may be visible on the prior notice due to upgrade of product functions.
  • Page 19 Wireless Module (LGSWFAC71) Regulatory Specifications WARNING! Wireless LAN (IEEE 802.11a/b/g/n/ac) Never place a television set in an unstable Frequency Range Output Power (Max.) location. A television set may fall, causing serious 2400 to 2483.5 MHz 15 dBm personal injury or death. Many injuries, particularly 5150 to 5725 MHz 14.5 dBm to children, can be avoided by taking simple...
  • Page 20 The model and serial numbers of the TV are located on the back and on one side of the TV. Record them below should you ever need service. MODEL SERIAL...

  • Page 21: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...

  • Page 22: Key Codes

    KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...

  • Page 23: Usb To Serial Converter With Usb Cable

    (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.

  • Page 24: Customer Computer

    EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...

  • Page 25: Communication Parameters

    EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...

  • Page 26: Transmission / Receiving Protocol

    EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 27 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 28 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
  • Page 29 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
  • Page 30 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
  • Page 31 11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
  • Page 32 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.

  • Page 34: Network Settings

    Wheel (OK). Accessibility 5 If the connection is completed, Connected to Internet is displayed. NETWORK Picture TV Name Sound [LG] webOS TV WEBOS3.5 Wired Connection (Ethernet) Channels 3 Select the Network Wired Connection Not Connected (Ethernet) or Wi-Fi Connection. Wi-Fi Connection...

  • Page 35: Troubleshooting Network Problems

    Fi Settings. NETWORK Picture TV Name When X appears next to Gateway: Sound [LG] webOS TV WEBOS3.5 1 Unplug the power cord of the AP (Router) or cable Wired Connection (Ethernet) Channels modem, wait 5 seconds. Reapply power. Not Connected 2 Initialize (Reset) the AP (Router) or cable modem.

  • Page 36: Updating The Tv Firmware

    SmartShare PC SW Installation & Setting Install the SmartShare PC SW program on your PC. 1 Go to www.lg.com . Then, select your region. 2 Select Support. 3 Select Software & Drivers. Then, select SmartShare. 4 Download the SmartShare PC SW and install it on your PC. You can run the program when installation is complete.
  • Page 37 (Screen Share) 1 On the TV Intel® WiDi is set to On. Your laptop runs the Intel® WiDi program. * LG TVs do not need to register. * For more information on Intel® WiDi, visit http://intel.com/go/widi . 2 It detects LG Smart TVs available, which supports WiDi.
  • Page 38 Troubleshooting Wi-Fi Network Problems Checkpoints • Make sure that you have the latest version of the software. - If you are using a Wi-Fi router, check whether you have the latest firmware installed. - If there are any available updates, update the firmware according to the manufacturer's instructions. - Check the current software version and if there is an available update, install it.
  • Page 39 • Interference Factors If there is any interference from surrounding equipment, the network connection may be weak or unstable. - Wireless telephones that operate in the 2.4 GHz or 5 GHz bandwidth - Wireless speakers that operate in the 2.4 GHz or 5 GHz bandwidth - Video transmitters that operate in the 2.4 GHz or 5 GHz bandwidth - Other wireless devices (Microwaves, cameras, baby monitors, neighboring wireless devices, etc.) that operate in the 2.4 GHz or 5 GHz bandwidth.
