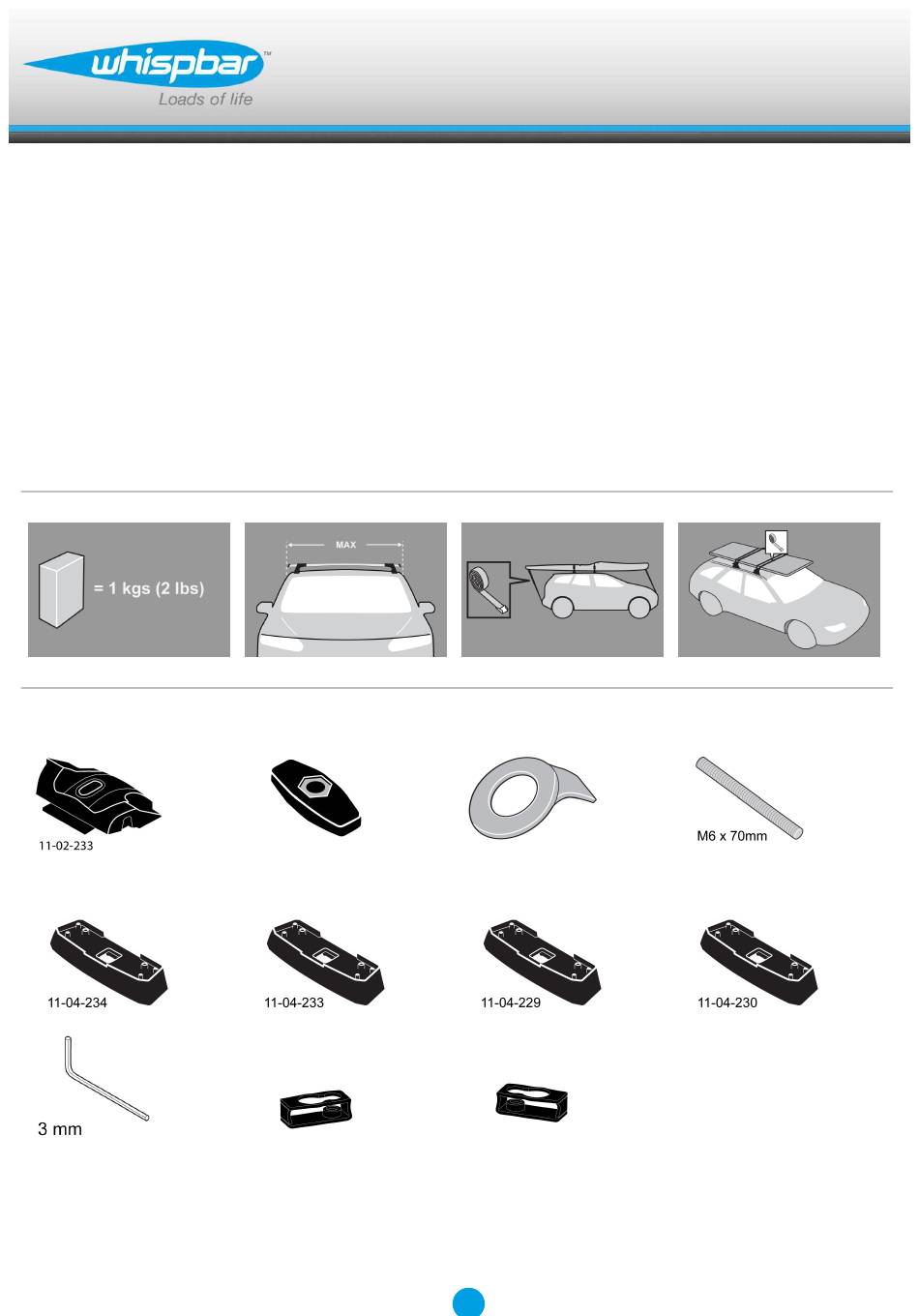

- Page 1 K807W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...
- Page 2 Fitting Kit K807W MAX kgs (lbs) Citroen C3, 5dr Hatch 09-16 70 kgs (154 lbs) 70 kgs (154 lbs) C3, 5dr Hatch 10-+ 70 kgs (154 lbs) 70 kgs (154 lbs) C3, 5dr Hatch 10-+ 70 kgs (154 lbs) 70 kgs (154 lbs) C3, 5dr Hatch 10-+ 70 kgs (154 lbs) 70 kgs (154 lbs)
- Page 3 Fitting Kit K807W C3, 5dr Hatch 09-16 (EU) -305mm 370mm 790mm 705mm -12" 14 9/16ths" 31 1/8ths" 27 3/4ths" C3, 5dr Hatch 10-+ (NZ) -305mm 370mm 790mm 705mm -12" 14 9/16ths" 31 1/8ths" 27 3/4ths" C3, 5dr Hatch 10-+ (AU) -305mm 370mm 790mm...
-
Page 4: First Time Installation
Fitting Kit K807W Important Only suitable for models with Trap Door option on roof strip First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. - Page 5 Fitting Kit K807W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally.
- Page 6 Fitting Kit K807W Adjust crossbar in or out to suit vehicle. Refer to the crossbar instructions for crossbar adjustment. Attaches to factory-fitted mounting points Please check the front of this manual for information relating specifically to your vehicle. Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight.

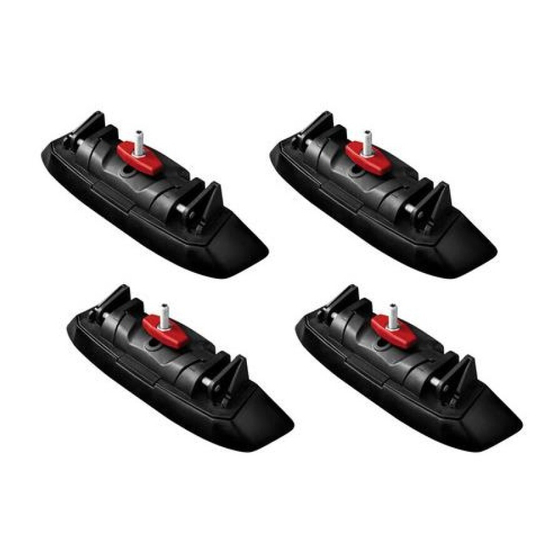

- Page 7 Fitting Kit K807W Select plastic internal block (from fitting kit) and insert into foot. Repeat for all legs. Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position.
- Page 8 Fitting Kit K807W Fit rubber pads (supplied with fitting kit) to foot. Pad may vary in shape to that shown. Make sure the pad fits into the holes underneath the foot. Fitment Open or remove fixed-point covers. Place mounting block into position as shown.
- Page 9 Fitting Kit K807W Slide mounting block to front, so the thread is above mounting point. Insert grubscrew and tighten (make sure that the grubscrew is above the mounting point) . Place pad over grubscrew.
- Page 10 Fitting Kit K807W Mount crossbars over clamps. Ensure the pads are in the correct position and the clamp threads pass through the crossbar feet. Place washer over clamp thread as shown. Ensure that tab is inserted into clamp block. Ensure the plastic knob is in the position shown when fully tightened.
- Page 11 Fitting Kit K807W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 12: Maintenance
Fitting Kit K807W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting... - Page 13 Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com.au www.whispbar.co.nz...
-
Page 14: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 15 Fitting Kit K807W Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
