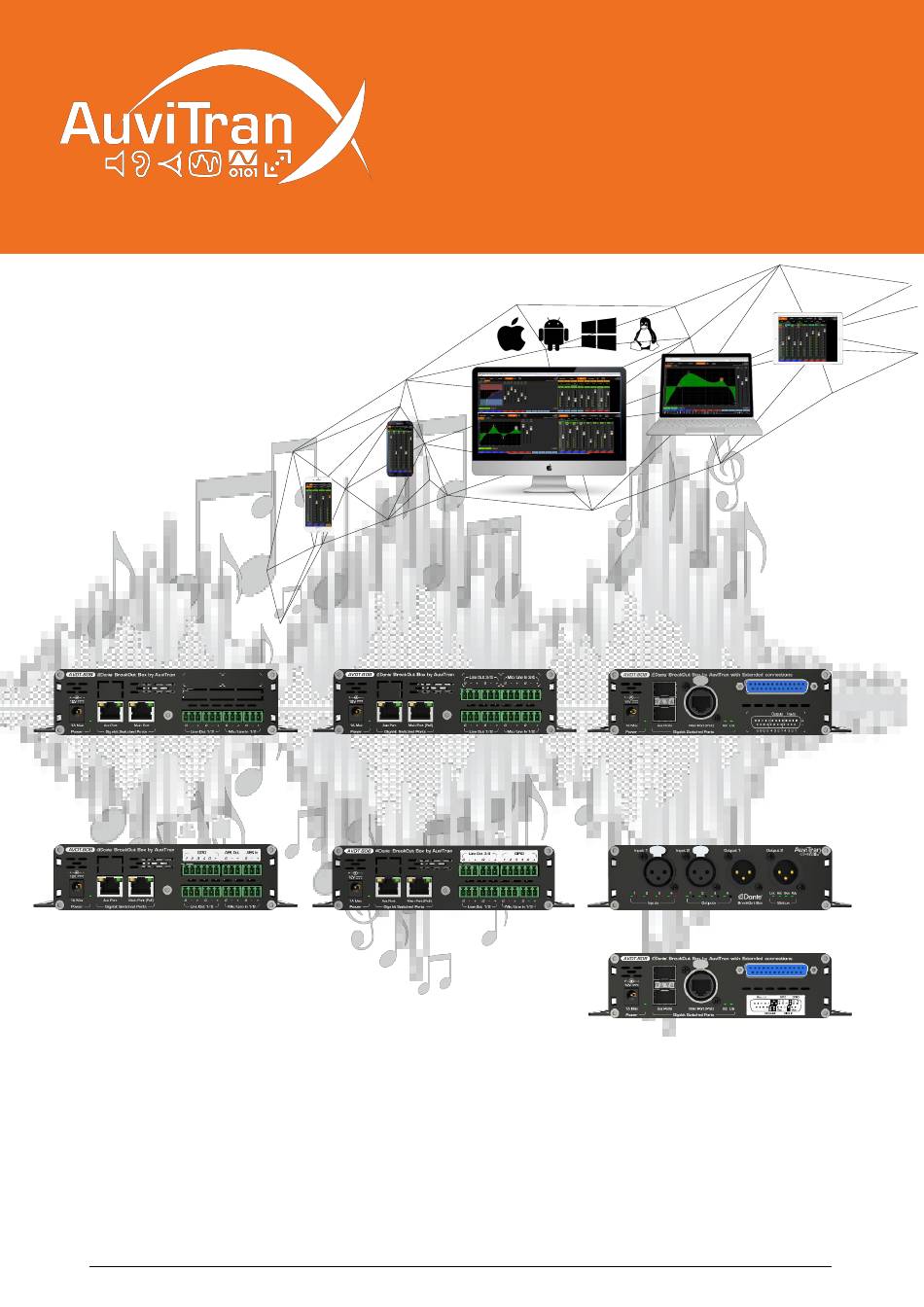

- Page 1 AVDT-BOB User’s manual AVDT-BOB-AE4io AVDT-BOB-AE8io AVDT-BOB-AS8io AVDT-BOB-ADE8io AVDT-BOB-AEG6io AVDT-BOB-ADX8io (Front) AVDT-BOB-ADX8io (Rear) www.auvitran.com AVDT-BOB User’s manual v1.6 Page 1 / 25...
-
Page 2: Table Of Contents
Power to Start-up ..................4 Connect the AVDT-BOB to an IP/Dante network ..........4 AVDT-BOB’s Dante settings ................5 Access to AVDT-BOB’s User Interface via AVSMonitor on Windows OS ....6 Access to AVDT-BOB’s User Interface via a Browser ........7 AVDT-BOB architecture ..................8 AVDT-BOB inputs and outputs ................8... -
Page 3: Legacy
1. Legacy 1.1 LIMITATION OF LIABILITY In no case and in no way, the provider of this software (AuviTran, the distributor or reseller, or any other party acting as provider) shall be liable and sued to court for damage, either direct or indirect, caused to the user of the software and which would result from an improper installation or misuse of the software. -
Page 4: Avdt-Bob Quick Start
2 AVDT-BOB Quick Start 2.1 Power to Start-up To start your AVDT-BOB, connect the Main port of your AVDT-BOB, to an active POE switch port using a CAT5E/6 cable (Gigabit connection) or alternatively connect an optional 12V DC power to the DC Power connector of your AVDT-BOB. -
Page 5: Avdt-Bob's Dante Settings
Consult the Audinate Dante Controller User’s manual for any other information Notices: Using the Dante controller, it is possible to run commands by setting specific Dante names in an AVDT-BOB (all command name must be filled with the maximum of ‘x’ at end): Setting AVTxCMD-GIPxxxxxxxxxxxxxxxxxxxx as Dante Name in an AVDT-BOB will request to get back the IP address of the AVDT user Interface. -
Page 6: Access To Avdt-Bob's User Interface Via Avsmonitor On Windows Os
Download AuviTran AVS-Monitor free software for windows 7/8/10 available at the following web address http://www.auvitran.com/w4/?page_id=86 Install AVS-Monitor by double clicking on the download file. Start AVS-Monitor. The AVDT-BOB connected to the network will automatically appears in 2 lists on left: ▪ “Network controller” provides access to the AVDT-BOB control ▪... -
Page 7: Access To Avdt-Bob's User Interface Via A Browser
2.5 Access to AVDT-BOB’s User Interface via a Browser The user interface of an AVDT-BOB can be launched without installation by any standard Web browser compatible with HTML5 and JavaScript standards. The device hosting the web browser must comply with the following: May be any platform PC, Laptop, Tablet, Smartphone working whatever OS (MacOS, iOS, Android, Windows, Linux …) with a minimum resolution of 800x600... -
Page 8: Avdt-Bob Architecture
3 AVDT-BOB architecture 3.1 AVDT-BOB inputs and outputs The AVDT-BOB-AE8io and AVDT-BOB-AS8io have 4 analog balanced Mic/Line inputs and 4 balanced analog outputs on Euroblock/SUBD connectors. They can receive and send 4 digital signals from/to Dante from their Main or Aux gigabits Ethernet ports. -
Page 9: Avdt-Bob's Schematic
Mixing Direct Out Processed Mixing Mic/Line1-2 Mic/Line1-2 Master1-4 Input 1-8 Master1-4 Output Processing Output Processing Analog Outputs Dante Outputs Analog + Digital Dante Outputs Line_Out1-4 Dante_Out1-4 Output1-4 Dante_Out1-4 AVDT-BOB-AEG6io’s schematic AVDT-BOB-ADE8io/ADX8io’s schematic AVDT-BOB User’s manual v1.6 Page 9 / 25... -
Page 10: Input Processing Block
Processing* fader (EQ + Dyn) Dante fader On / Off Processed φ Dante In1-4 Meter Dante1-4 Diagram of the AVDT-BOB's Input Processing block for AE4io/AE8io/AEG6io/AS8io versions DirectOut +48V +48V Processing on Dante 1-2 On / Off Processed φ Meter input1-2... -
Page 11: Mixing Processing Block
Processing* Meter Processed 4 {2} 4 {2} Select (EQ + Dyn) Dante1-4 Mixing Master-4 Diagram of the AVDT-BOB's Output Processing block for AE4io/AE8io/AS8io versions DirectOut1-4{2} Dante Out 4 {2} 4 {2} Processed fader On/Off On/Off Input1-4{2} 4 {2} 4 {2}... -
Page 12: Avdt-Bob User's Interface
4 AVDT-BOB User’s Interface 4.1 Bar menu for interface selection The GUI of the AVDT-BOB is divided in 6 interfaces. A generic bar menu displayed on the top of screen enables the selection of one of these interfaces by clicking/pressing the interface name. -
Page 13: Mixers' Interface
Digital fader manages gain in the range -Inf then -80dB to +12dB per step of 0.1dB A double click or a long press on a Gain in the top of the slice enables to set it directly using a keyboard AVDT-BOB User’s manual v1.6 Page 13 / 25... -
Page 14: Outputs' Interface
On bottom, a reminder of the physical types and names of each slice are displayed On last line, colored label buttons display user’s name/color of the slices. They can be individually customized by a long click or a double click on a button AVDT-BOB User’s manual v1.6 Page 14 / 25... -
Page 15: Processing Interface
On the bottom, 12{10} colored user’s names buttons enable to select the slice on which the EQ/DYN processing will be modified. This button line can be dragged left/right to access shadowed button left/right when the screen is not large enough. AVDT-BOB User’s manual v1.6 Page 15 / 25... -
Page 16: Eq Processing View
[On/Off] button activates/bypass the EQ processing without modifying the parameters [HPF On/Off] button activate/disable the high pass filter [Reset] button reset all EQ processing parameters [Cancel] button cancel all modifications and return to previous parameters AVDT-BOB User’s manual v1.6 Page 16 / 25... -
Page 17: Limiter/Compressor View
[Cancel] button cancel all modifications and return to previous parameters 4.6 Parameter interface The parameter icon give access to software settings, information and Load/Save sub menus via 4 parameters tabs [General], [Network], [Save/Load], [GPIO] AVDT-BOB User’s manual v1.6 Page 17 / 25... -
Page 18: General Software Setting Menu
Switch processing 4 defines the link of processing 4 to Mic/Line4 or to Dante in 4 Specified the slice link button mode: “Gain only” or “All components” (Gain + buttons) Deactivates or defines the GPIO refresh rate for AVDT-BOB-ADE8io/ADX8io only 4.6.2 Network parameters menu This tab displays information on your AVDT-BOB. - Page 19 The [Save] button enables to set a name and to save the current settings for the selected highlight [Scene slot] The [Load] button enables to load in the AVDT-BOB the saved settings for the selected highlight [Scene slot] On the top left just after the parameter icon, a reminder of the last saved/load scene is displayed AVDT-BOB User’s manual v1.6...
-
Page 20: Gpio Menu
4.6.4 GPIO menu (available for AVDT-BOB-ADE8io/ADX8io The GPIO interface allows to specify the mode and actions associated to the 4x GPIO. [GPIO tabs] allow to select the GPIO. The selection is done just by clicking on it. [Setting fields] enable for the selected GPIO: 1. -
Page 21: Gpio In Gpi Mode
The use of the Scene must be done with care and should be the last task “On” for the GPI The GPIO settings are saved with each scene and it is possible to cascade the automation using multi scenes AVDT-BOB User’s manual v1.6 Page 21 / 25... -
Page 22: Gpio In Gpo Mode
The automation is evaluated from GPIO1 to GPIO4 In GPO mode, the Trigger function on a component determines the internal button in an AVDT-BOB that will set/reset the external GPIO. For instance, in the previous screen shot: 1. GPIO2 will act as a GPO 2. -
Page 23: Gpio In Fader Mode
“Gain” function enables to set a Gain on the component proportionally to the voltage apply on the GPIO “Reverse gain” function enables to set a Gain on the component inversely proportional to the voltage apply on the GPIO AVDT-BOB User’s manual v1.6 Page 23 / 25... -
Page 24: Gpio Wiring For Avdt-Bob-Ade8Io Or Avdt-Bob-Adx8Io
GPI, GPO or as Fader. The setting of these GPIO mode is presented in chapter 4.6.4 of this manual. 4 GPIO Pins plus Ground and Vcc are available in the rear of the AVDT-BOB. These pins are located:... -
Page 25: Gpio Connection For "Gpo" Mode
✓ It is possible to connect GPIO in fader mode using . . . for instance a linear potentiometer of 5KΩ Linear plugged after a resistance of ~ 750Ω between Vcc and Gnd as shown on left diagram. ADC #1 AVDT-BOB User’s manual v1.6 Page 25 / 25...
