BrickElectric BEM105 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

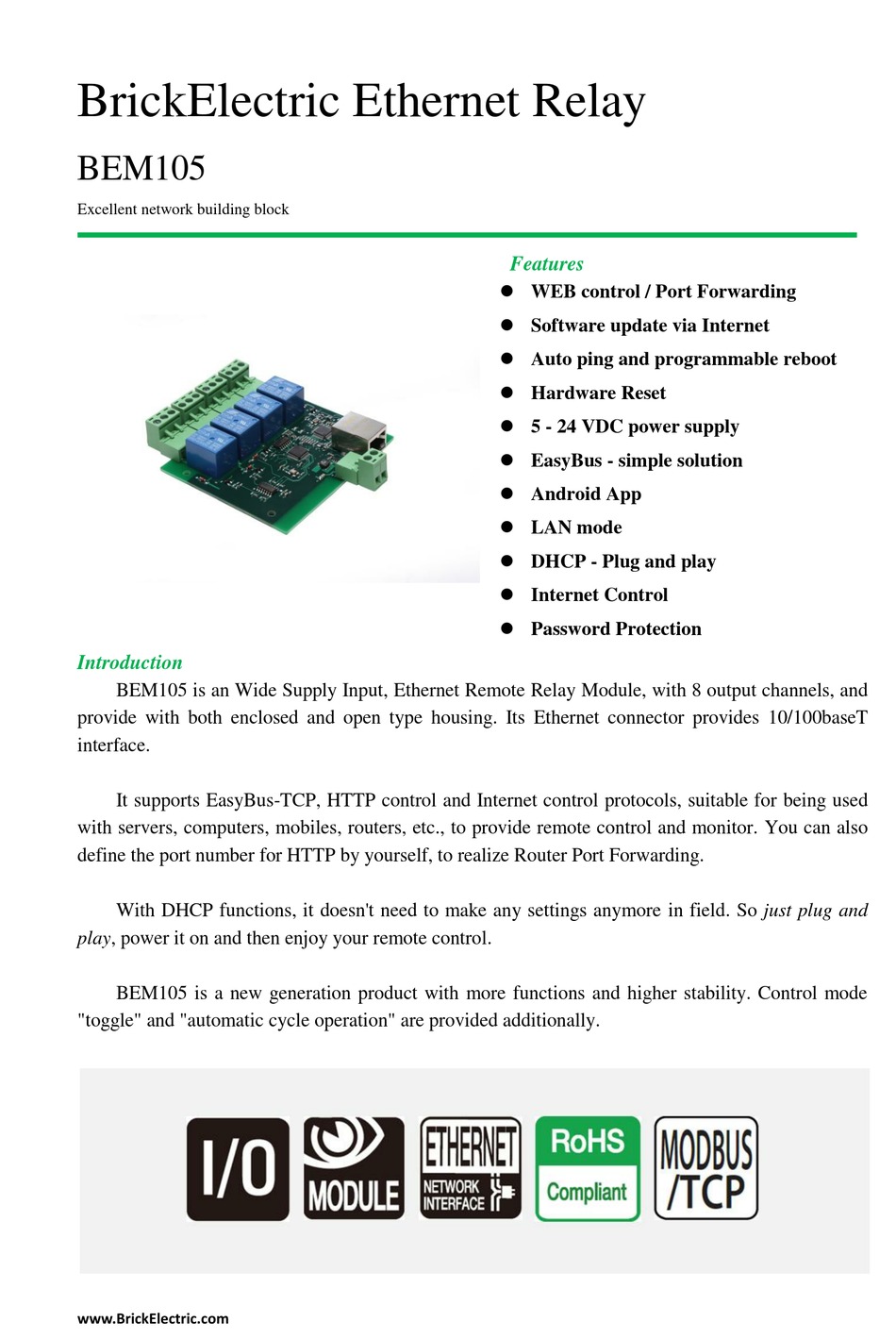

BrickElectric Ethernet Relay
BEM105
Excellent network building block
Introduction
BEM105 is an Wide Supply Input, Ethernet Remote Relay Module, with 8 output channels, and
provide with both enclosed and open type housing. Its Ethernet connector provides 10/100baseT
interface.
It supports EasyBus-TCP, HTTP control and Internet control protocols, suitable for being used
with servers, computers, mobiles, routers, etc., to provide remote control and monitor. You can also
define the port number for HTTP by yourself, to realize Router Port Forwarding.
With DHCP functions, it doesn't need to make any settings anymore in field. So just plug and
play, power it on and then enjoy your remote control.
BEM105 is a new generation product with more functions and higher stability. Control mode
"toggle" and "automatic cycle operation" are provided additionally.
www.BrickElectric.com
Features
 WEB control / Port Forwarding
 Software update via Internet
 Auto ping and programmable reboot
 Hardware Reset
 5 - 24 VDC power supply
 EasyBus - simple solution
 Android App
 LAN mode
 DHCP - Plug and play
 Internet Control
 Password Protection

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEM105 and is the answer not in the manual?

Questions and answers

Related Manuals for BrickElectric BEM105

Summary of Contents for BrickElectric BEM105

  • Page 1  Internet Control  Password Protection Introduction BEM105 is an Wide Supply Input, Ethernet Remote Relay Module, with 8 output channels, and provide with both enclosed and open type housing. Its Ethernet connector provides 10/100baseT interface. It supports EasyBus-TCP, HTTP control and Internet control protocols, suitable for being used with servers, computers, mobiles, routers, etc., to provide remote control and monitor.

  • Page 2: Table Of Contents

    4.8 Hardware reset button ...................... 17 4.9 Identification & customized information ................18 5. Auto ping and reboot mode ......................20 6. Fast Program Reference ......................26 6.1 Easybus Specifications ....................... 26 7. Support & Contact us ........................40 www.BrickElectric.com...

  • Page 3: Device Overview

    1. Device Overview 1.1 General Ratings Power Consumption 5W max. Operation Temperature -30℃ to +85℃ Module Size 150mmx80mmx20mm Weight 1.2 Connection Diagram Fig. 1.1 www.BrickElectric.com...

  • Page 4: Specifications

    Subnet Mask: 255.255.255.0 You can download latest firmware for Gateway: 192.168.1.1 free. DHCP: disable   HTTP function Internet Control State: Enable State: Enable Port: 80 Platform with App: Android iOS (in prepare) Windows (in prepare) Cross-Platform (Web Browser) in prepare www.BrickElectric.com...

  • Page 5: Easy Start

    A Practical step-by-step operation guide for starters This part is a step-by-step tutorial explaining how to start with BEM105. We'll not discuss too much details here. The only idea here is to make it work by minimum steps. For more information, please refer to later chapters.

  • Page 6: Lan Mode

    3.2 LAN Mode 1. Connect BEM105 with your routers or computer by Ethernet cable, and then power it on with 5 - 24VDC power supply. (see fig.1.1 at page 2) 2. Open any TCP test tool (if you don't have any, or you don't know what a TCP test tool is, you can use BE-Manager, it is within our software package).
  • Page 7 Fig.1.3 www.BrickElectric.com...

  • Page 8: Internet Mode

    3.3 Internet Mode: 1. Connect BEM105 with your routers or computer by Ethernet cable. And then power it on with 5-24VDC power supply. (see fig.1.1 at page 2) 2. Open "Hello Brick" app for android at any android phone, register a user and then have fun with Internet control.

  • Page 9: Functionality

    You can find the MAC Address of the module at the simple starter manual delivered together with module package. 4.2 Save Parameters After power cycle, BEM105 will lose its parameter modifications if you don't actively require it to save modified parameters into internal nonvolatile memory. For examples, IP Address, Gateway address and Net mask.

  • Page 10: Dhcp Function

    4.3 DHCP Function BEM105 supports both DHCP and static IP Addressing. For communication reliability, we recommend using a Static IP Address when you feel comfortable doing so. This will ensure that the device will always be where you expect it to be, when you try to connect to...

  • Page 11: Relay Outputs Control

    In the following contents, assuming current IP Address is 192.168.1.105. If you need to switch different channels please replace "k0x" to the value you need. For example, if you want control ch2, you may replace "k01" with "k02". www.BrickElectric.com...
  • Page 12 To switch off ch1 output: Web access URL: http://192.168.1.105/k01=0 Socket command text: k01=0; To switch on ch1 output: Web access URL: http://192.168.1.105/k01=1 Socket command text: k01=1; To toggle (opposite to previous status) ch1 output: Web access URL: http://192.168.1.105/k01=2 Socket command text: k01=2; www.BrickElectric.com...
  • Page 13 To pulse off ch1 output, you can input by require web access: Web access URL: http://192.168.1.105/k01=3 Socket command text: k01=3; To pulse on ch1 output, you can input by require web access: Web access URL: http://192.168.1.105/k01=4 Socket command text: k01=4; www.BrickElectric.com...
  • Page 14 To set timer T1 value to 5000: Web access URL: http://192.168.1.105/setpara[65]=5000 Socket command text: setpara[65]=5000; To set timer T1 value unit to ms: Web access URL: http://192.168.1.105/ setpara[29]=0 Socket command text: setpara[29]=0; To set timer T1 value unit to second: Web access URL: http://192.168.1.105/ setpara[29]=1 www.BrickElectric.com...
  • Page 15 To set timer T1 value to 5000: Web access URL: http://192.168.1.105/ setpara[65]=5000 Socket command text: setpara[65]=5000; To set timer T1 value unit to ms: Web access URL: http://192.168.1.105/ setpara[29]=0 Socket command text: setpara[29]=0; To set timer T1 value unit to second: www.BrickElectric.com...

  • Page 16: Password Protection

    Once enabled, user can only send effective command when they're able to provide correct 6-bit length access password. In the following contents, assuming current IP Address is 192.168.1.105. And device password is "123456", which is also the default password. Enable/Disable Password Protection To Enable password protection: Web access URL: www.BrickElectric.com...

  • Page 17: Http Port Setting

    For example, if you set incorrect IP Address and the device is no longer detectable in your network. Two different level of reset are provided in this module. Level-1 only reset parameters, i.e. network settings, time settings and so on, while Level-2 will reset on-chip app, i.e. for firmware updating/reload. www.BrickElectric.com...

  • Page 18: Identification & Customized Information

    Read serial number You can read serial number by reading the sticker on the device, but you can also read device serial number by communication. To read device serial number: Web access URL: http://192.168.1.105/ getpara[100]=1; Socket command text: getpara[100]=1; www.BrickElectric.com...
  • Page 19 Socket command text: getpara[99]=1; Read device firmware version you can read device firmware version by communication, for the purpose of better identification the device, or diagnosis. To read device firmware version: Web access URL: http://192.168.1.105/ getpara[98]=1; Socket command text: getpara[98]=1; www.BrickElectric.com...

  • Page 20: Auto Ping And Reboot Mode

    BEM105 has a 2 independent auto ping channels watchdog which can monitor 2 external servers/controllers on network at the same time. Auto ping monitor channels are completely independent from relay channels, you can map either one or both relay channel to each auto ping channel freely.
  • Page 21 Auto Ping Channel 1: Web access URL: Write: http://192.168.1.105/setpara[101]=192&setpara[102]=168&setpara[103]=1&setpara[104] =100 Read: http://192.168.1.105/getpara[101]=192&getpara[102]=168&getpara[103]=1&getpara[104] =100 Socket command text: Write: setpara[101]=192;setpara[102]=168;setpara[103]=1;setpara[104]=100; Read: getpara[101]=192;getpara[102]=168;getpara[103]=1;getpara[104]=100; Auto Ping Channel 2: Web access URL: Write: http://192.168.1.105/setpara[105]=192&setpara[106]=168&setpara[107]=1&setpara[108] =100 Read: http://192.168.1.105/getpara[105]=192&getpara[106]=168&getpara[107]=1&getpara[108] =100 Socket command text: Write: setpara[105]=192;setpara[106]=168;setpara[107]=1;setpara[108]=100; Read: getpara[105]=192;getpara[106]=168;getpara[107]=1;getpara[108]=100; www.BrickElectric.com...
  • Page 22 5 seconds, and then power it on again. I'm using k01 to supply power to my device, so my reboot sequence is: k01=0;wait=5;k01=1; and plus the programmable mark(if you don't insert programmable mark, your sequence will be running immediately rather than saving into preset program and wait to be triggered) www.BrickElectric.com...
  • Page 23 1. To set time unit to millisecond: setpara[46]=0; 2. To set time unit to second: setpara[46]=1; 3. To set time value to 60: setpara[82]=60; I want to setup time between pings to 60 seconds, for example: Web access URL: Write: http://192.168.1.105/setpara[46]=1&setpara[82]=60 Read: http://192.168.1.105/getpara[46]=1&getpara[82]=1 Socket command text: www.BrickElectric.com...
  • Page 24 2. To set time unit to second: setpara[173]=1; 3. To set time value to 60: setpara[165]=60; I want to setup after reboot delay time to 300 seconds, for example: Web access URL: Write: http://192.168.1.105/setpara[173]=1&setpara[165]=300 Read: http://192.168.1.105/getpara[173]=1&getpara[165]=1 Socket command text: Write: setpara[173]=1;setpara[165]=60; www.BrickElectric.com...
  • Page 25 Write: http://192.168.1.105/setpara[181]=0 Socket command text: Write: setpara[181]=0; Auto Ping Channel 2: To start auto ping: Web access URL: Write: http://192.168.1.105/setpara[182]=1 Socket command text: Write: setpara[182]=1; To stop auto ping: Web access URL: Write: http://192.168.1.105/setpara[182]=0 Socket command text: Write: setpara[182]=0; www.BrickElectric.com...

  • Page 26: Fast Program Reference

    This saves time for many people who wants to focus on more creative works, and they can start to create application with BEM105 immediately, rather than spend lots of time on learning the old-fashioned and very detailed industry automation communication protocol before they can really start to do anything.
  • Page 27 0 – 1 018 DHCP DHCP functionality, 0 = static IP mode, 1 = DHCP mode default value: 0 range: 0 – 1 019 PWEN Password enable, 0 = password disable, 1 = password disable default value: 0 www.BrickElectric.com...
  • Page 28 0 – 1 033 K3U1 Relay K3 timer T1 unit selector, 0 = ms, 1 = second default value: 0 range: 0 – 1 034 K3U2 Relay K3 timer T2 unit selector, 0 = ms, 1 = second www.BrickElectric.com...
  • Page 29 - range: - 045 - Reserved parameter default value: - range: - 046 - Reserved parameter default value: - range: - 047 - Reserved parameter default value: - range: - 048 - Reserved parameter default value: - range: - www.BrickElectric.com...
  • Page 30 - range: - 060 - Reserved parameter default value: - range: - 061 - Reserved parameter default value: - range: - 062 - Reserved parameter default value: - range: - 063 - Reserved parameter default value: - www.BrickElectric.com...
  • Page 31 074 - Reserved parameter default value: - range: - 075 - Reserved parameter default value: - range: - 076 - Reserved parameter default value: - range: - 077 - Reserved parameter default value: - range: - 078 - Reserved parameter www.BrickElectric.com...
  • Page 32 - range: - 089 - Reserved parameter default value: - range: - 090 - Reserved parameter default value: - range: - 091 - Reserved parameter default value: - range: - 092 - Reserved parameter default value: - range: - www.BrickElectric.com...
  • Page 33 1 range:0 – 1 096 - Reserved parameter default value: - range: - 097 NAME Device name, max 18 characters default value: BEM105 range: - 098 FMVER Device firmware version default value: - range: - 099 DEVTYP Device model type...
  • Page 34 119 - Reserved parameter default value: - range: - 120 - Reserved parameter default value: - range: - 121 - Reserved parameter default value: - range: - 122 - Reserved parameter default value: - range: - 123 - Reserved parameter www.BrickElectric.com...
  • Page 35 Ping monitor 2 domain name, max 55 characters default value: www.example2.com range: - 135 - Reserved parameter default value: - range: - 136 - Reserved parameter default value: - range: - 137 - Reserved parameter default value: - range: - www.BrickElectric.com...
  • Page 36 150 PSEL2 Ping monitor 2 mode selector, 0 = fixed IP mode, 1 = DNS mode default value: 0 range: 0 – 1 151 - Reserved parameter default value: - range: - 152 - Reserved parameter default value: - www.BrickElectric.com...
  • Page 37 - range: - 165 PDT1 Ping monitor 1 delay timer after reboot default value: 1000 range: 0 – 65536 166 PDT2 Ping monitor 2 delay timer after reboot default value: 1000 range: 0 – 65536 167 - Reserved parameter www.BrickElectric.com...
  • Page 38 - 179 - Reserved parameter default value: - range: - 180 - Reserved parameter default value: - range: - 181 PCTRL1 Ping monitor 1 control word, 0 = stop, 1 = start default value: 0 range: 0 – 1 www.BrickElectric.com...
  • Page 39 - range: - 185 - Reserved parameter default value: - range: - 186 - Reserved parameter default value: - range: - 187 - Reserved parameter default value: - range: - 188 - Reserved parameter default value: - range: - www.BrickElectric.com...

  • Page 40: Support & Contact Us

    7. Support & Contact us Email: brickelectric@hotmail.com WhatsApp Online Support: +86 182 1730 3961 Call Us: +86 182 1730 3961 If you have any questions or any customized software/hardware requirement, please send an email to our mailbox: brickelectric@hotmail.com www.BrickElectric.com...
