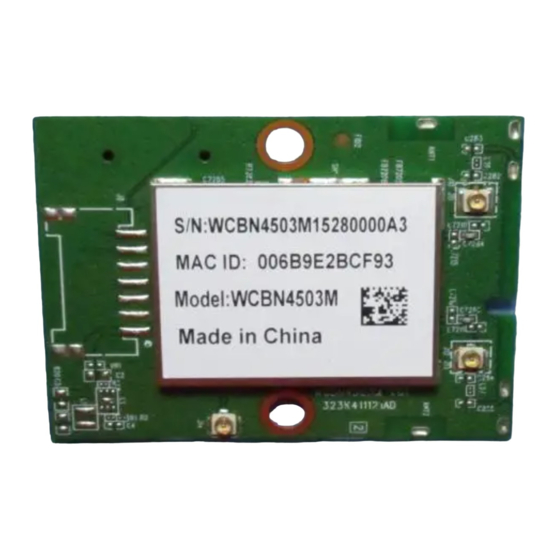

Wi-Fi (11a/b/g/n/ac 2Tx2R) + BT (V4.1 LE) SDIO Combo Module

Change History

Revision

Date

Version 1.0

2015/05/17

Version 1.1

2015/07/01

Version 1.2

2015/07/09

Version 1.3

2015/07/22

* This document contains confidential proprietary information and is property of LTC. The contents of

this document should not be disclosed to unauthorized persons without the written consent of LTC.

USER MANUAL

WCBN4503M

Marvell 88w8897

Version 1.3

Author

Ben J. Chen

Page 1/14

Change List

Preliminary

Update Transmit Output Power

Update Pin Assignment

- Change Pin13 to NC, using internal 1.8V

Update Connector SPEC

Update Power Consumption

Update Antenna SPEC

- Remove Sponge and Heat Shrink tubing

Table of Contents

Need help?

Do you have a question about the WCBN4503M and is the answer not in the manual?

Questions and answers

Summary of Contents for LiteOn WCBN4503M

Page 1 USER MANUAL Wi-Fi (11a/b/g/n/ac 2Tx2R) + BT (V4.1 LE) SDIO Combo Module WCBN4503M Marvell 88w8897 Version 1.3 Change History Revision Date Author Change List Version 1.0 2015/05/17 Ben J. Chen Preliminary Update Transmit Output Power Update Pin Assignment Version 1.1 2015/07/01 Ben J.
Page 2 USER MANUAL Wi-Fi (11a/b/g/n/ac 2Tx2R) + BT (V4.1 LE) SDIO Combo Module WCBN4503M Marvell 88w8897 Version 1.3 Networking B.U. Lite-on Technology Corporation 4F, No. 90, Chien I Rd., Chung Ho, New Taipei City 235, Taiwan, R.O.C. Customer Approval: (Signature) (Title)
Page 3: Table Of Contents
ONTENT PRODUCT FEATURES ........................4 BT F : ............................4 EATURE :.............................4 EATURE ..........................4 OMMON EATURE PRODUCT SPECIFICATIONS......................5 ............................5 HIPSET .......................5 UNCTIONAL PECIFICATIONS RECOMMENDED OPERATION CONDITIONS................7 PIN ASSIGNMENT..........................8 CONNECTOR SPEC .........................8 POWER-UP SEQUENCE TIMING ....................9 MECHANICAL ..........................9 ANTENNA SPEC ..........................10 (Q’...
Page 4: Product Features
RODUCT EATURES BT F EATURE Bluetooth V4.1 LE system Backwards compatible with BT version of 1.1, 1.2, 2.0, 2.1and 3.0+HS Support Dual-mode Bluetooth BT using SDIO interface BT transmission speed including 1M (GFSK), 2M (π/4-DQPSK) and 3Mbps (8DPSK) EDR and up to 54Mbps (Physical Rate) High Speed operations Support for Simple Pairing (SP) and Enhanced Inquiry Response (EIR) function Support master and slave piconet and scatternet Adaptive Frequency Hopping (AFH) using Packet Loss Rate (PLR)
Page 5: Product Specifications
RODUCT PECIFICATIONS HIPSET Marvell 88w8897 UNCTIONAL PECIFICATIONS BT Function Bluetooth V4.1 LE Standard SDIO Bus Interface 1 Mbps, 2Mbps and Up to 3Mbps Data Rate GFSK, π/4-DQPSK and 8-DPSK Modulation Scheme 2.402~2.480 GHz Frequency Range Transmit Output Power +4 Output Power 10 ;...
Page 6 Ad-hoc mode (Peer-to-Peer) Network Architecture Infrastructure mode 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan Operation Channel 5GHz 12: United States 19: Europe 8: Japan 802.11bg 2.412 ~ 2.462 GHz Frequency Range 802.11a 5.15 ~ 5.825 GHz 802.11a:...
Page 7: Recommended Operation Conditions
-86 dBm@6Mbps -70 dBm@54Mbps 802.11n(2.4GHz): 20MHz -86 dBm@MCS0 -69 dBm@MCS7 40MHz -83 dBm@MCS0 -66 dBm@MCS7 802.11n(5GHz): 20MHz -84 dBm@MCS0 -67 dBm@MCS7 40MHz -81 dBm@MCS0 -64 dBm@MCS7 802.11ac: 20MHz -64 dBm@MCS8 40MHz -62 dBm@MCS8 -59 dBm@MCS9 80MHz -59 dBm@MCS8 -54 dBm@MCS9 WPA, WPA2, WEP 64bit &...
Page 8: Pin Assignment
SSIGNMENT Pin. Pin Define Description Status Ground Ground SDIO_Data1 SDIO Data Line1 SDIO_Data2 SDIO Data Line2 SDIO_Data0 SDIO Data Line0 SDIO_Data3 SDIO Data Line3 SDIO_CMD SDIO Command Input WL/BT_HOST_ Device wake up Host, Low Active WAKE# SDIO_CLK SDIO Clock Input Ground PDn# Active Low to Power-Down WLAN...
Page 9: Power-Up Sequence Timing
OWER EQUENCE IMING ECHANICAL Page 9/14...
Page 10: Antenna Spec
SPEC NTENNA Wi-Fi Antenna (Q’ty: 2pcs) Page 10/14...
Page 11: W I -F I Antenna Photo
NTENNA HOTO Page 11/14...
Page 12: Bt Antenna(Q'ty: 1Pcs)
BT Antenna(Q’ty: 1pcs) Page 12/14...
Page 13: Bt Antenna Photo
BT A NTENNA HOTO Page 13/14...
Page 14: Eeprom Information
LOCK IAGRAM EEPROM I NFORMATION 0xTBD Vendor ID Product ID 0xTBD FCC SKU 2.4G: CH1-11 Region Code 5G: U-NII-1, U-NII-3 CC=0x10 0xTBD Vendor ID 0xTBD Device ID NVIRONMENTAL PERATING Operating Temperature: 0 to 70 qC (32 to 158qF) Relative Humidity: 5-90% (non-condensing) TORAGE Temperature: -40 to 80 qC (-40 to 176 qF) Relative Humidity: 5-95% (non-condensing)
Page 15 FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 16 The final end product must be labeled in a visible area with the following " Contains TX FCC ID: PPQ- WCBN4503M ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 17 OEM Integrator Checklist The party below will implement the LITE-ON Module in host systems in accordance with the instructions specified in this document and the documents referenced herein. 1. The OEM integrator will ensure the Module is integrated in a host systems using only the approved antenna model(s) described in this document.
Page 18 IC Statement: This device complies with Industry Canada license•exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
Page 19 Le présent émetteur radio (IC: 4491A-WCBN4503M) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci•dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne.
Page 20 (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX IC: 4491A- WCBN4503M ".
