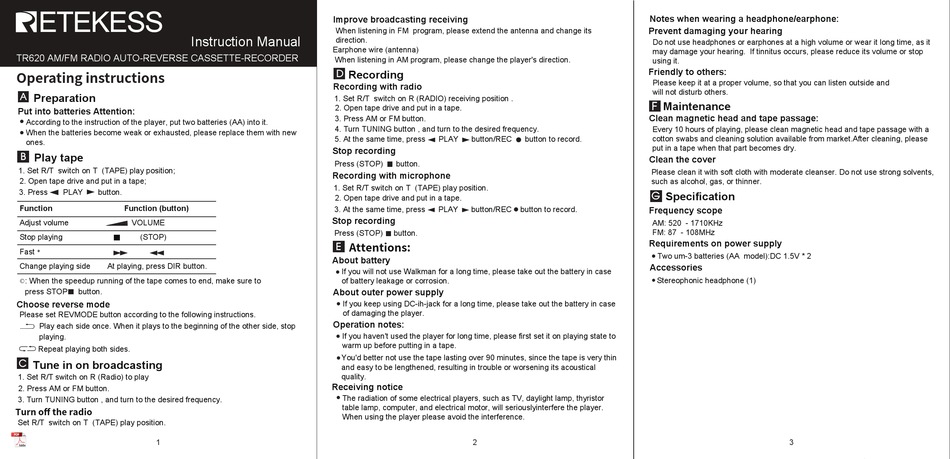

Retekess TR620 Instruction Manual

Instruction Manual

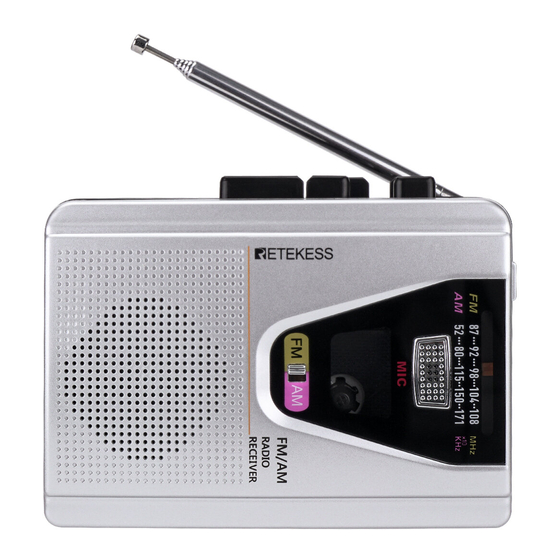

TR620 AM/FM RADIO AUTO-REVERSE CASSETTE-RECORDER

Operating instructions

Preparation

Put into batteries Attention:
According to the instruction of the player, put two batteries (AA) into it.
When the batteries become weak or exhausted, please replace them with new
ones.

Play tape

1. Set R/T switch on T (TAPE) play position;
2. Open tape drive and put in a tape;
3. Press PLAY button.
Function Function (button)
Adjust volume VOLUME
Stop playing (STOP)
Fast﹡
Change playing side At playing, press DIR button.
: When the speedup running of the tape comes to end, make sure to
©
.
press STOP button
Choose reverse mode
Please set REVMODE button according to the following instructions.
Play each side once. When it plays to the beginning of the other side, stop
playing.
Repeat playing both sides.

Tune in on broadcasting

1. Set R/T switch on R (Radio) to play
2. Press AM or FM button.
3. Turn TUNING button , and turn to the desired frequency.
Turn off the radio
Set R/T switch on T (TAPE) play position.
1

Improve broadcasting receiving

When listening in FM program, please extend the antenna and change its
direction.
Earphone wire (antenna)
When listening in AM program, please change the player's direction.

Recording

Recording with radio

1. Set R/T switch on R (RADIO) receiving position .
2. Open tape drive and put in a tape.
3. Press AM or FM button.
4. Turn TUNING button , and turn to the desired frequency.
5. At the same time, press PLAY button/REC

Stop recording

Press (STOP) button.

Recording with microphone

1. Set R/T switch on T (TAPE) play position.
2. Open tape drive and put in a tape.
3. At the same time, press PLAY button/REC
Stop recording
Press (STOP) button.
Attentions:

About battery

If you will not use Walkman for a long time, please take out the battery in case
of battery leakage or corrosion.

About outer power supply

If you keep using DC-ih-jack for a long time, please take out the battery in case
of damaging the player.
Operation notes:
If you haven't used the player for long time, please first set it on playing state to
warm up before putting in a tape.
You'd better not use the tape lasting over 90 minutes, since the tape is very thin
and easy to be lengthened, resulting in trouble or worsening its acoustical
quality.
Receiving notice
The radiation of some electrical players, such as TV, daylight lamp, thyristor
table lamp, computer, and electrical motor, will seriouslyinterfere the player.
When using the player please avoid the interference.
2
Notes when wearing a headphone/earphone:
Prevent damaging your hearing
Do not use headphones or earphones at a high volume or wear it long time, as it
may damage your hearing. If tinnitus occurs, please reduce its volume or stop
using it.
Friendly to others:
Please keep it at a proper volume, so that you can listen outside and
will not disturb others.
Maintenance
Clean magnetic head and tape passage:
Every 10 hours of playing, please clean magnetic head and tape passage with a
cotton swabs and cleaning solution available from market.After cleaning, please
button to record.
put in a tape when that part becomes dry.
Clean the cover
Please clean it with soft cloth with moderate cleanser. Do not use strong solvents,
such as alcohol, gas, or thinner.
Specification
button to record.
Frequency scope
AM: 520 - 1710KHz
FM: 87 - 108MHz
Requirements on power supply
Two um-3 batteries (AA model):DC 1.5V * 2
Accessories
Stereophonic headphone (1)
3
