Summary of Contents for CORBERO CSCEV8007

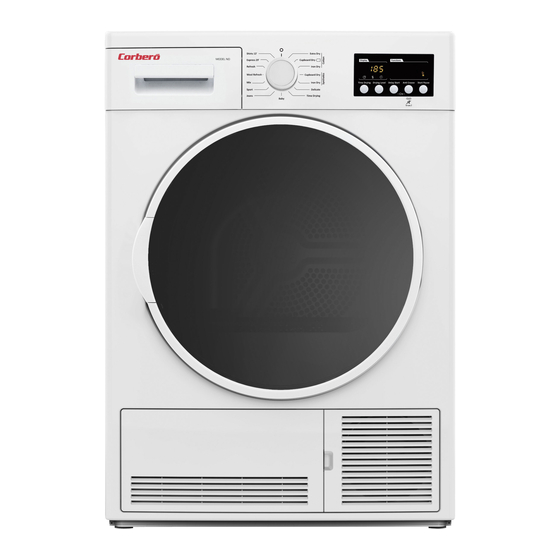

- Page 1 Tumble Dryer / User Manual CSCEV8007...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Description Read the instructions.
-
Page 3: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS ................. 3 1.1. Electrical Safety ....................3 1.2. Children's Safety ..................... 4 1.3. Product Safety ....................5 1.4. Correct Use ..................... 6 1.5. Installing On Top Of a Washing Machine............7 2. INSTALLATION ....................9 2.1. Removing the Safety Assembly ............... 9 2.2. - Page 4 9. ENVIRONMENTAL PROTECTION AND PACKAGING INFORMATION ..25 9.1. Packaging Information ................... 25 10. DESCRIBING THE ENERGY LABEL AND SAVING ENERGY ....25 10.1. Energy Labelling ..................25 10.2. Energy Efficiency ..................26 EN - IV...
- Page 5 PRIMARY CONSIDERATIONS • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 6 • Before installation, check the product for visible damage. Never install or operate a damaged product. • Keep pets away from the dryer. • Fabric softeners, or similar products, should be used in accordance with the manufacturers instructions. • Remove all objects from pockets such as lighters and matches.
-
Page 7: Safety Instructions
1. SAFETY INSTRUCTIONS This section contains safety instructions that will help protect you from risk of personal injury or property damage. Failure to follow these instructions will void any warranty. 1.1. Electrical Safety • The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility. -
Page 8: Children's Safety
A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel. To avoid the risk or fire or electric shock, do not use extension cords, multi sockets or adapters to connect the dryer to mains power. -
Page 9: Product Safety
• Keep cleaning materials out of the reach of children Electrical products are dangerous for children. • Keep children away from the product while it is running. • To prevent children from interrupting the dryer cycle, you can use the child lock to avoid any changes in the running programme. -
Page 10: Correct Use
• Operating the dryer in environments that contain flour or coal dust may cause explosion. ATTENTION: Underwear that contains metal reinforcements should not be put in the dryer. The dryer may be damaged if metal reinforcements come loose and break off during drying. 1.4. -
Page 11: Installing On Top Of A Washing Machine
• Do not lean against or sit on the door of the dryer. The dryer may tip over. • To maintain a temperature that will not harm the laundry (e.g. to prevent the laundry from catching fire), a cooling process starts after the heating process. - Page 12 ATTENTION: The dryer can only be placed on washing machines that have a same capacity and above. • To use the dryer on the washing machine, a fixing part must be used between the two products. The fixing part must be attached by an Authorised Service Provider.
-
Page 13: Installation
2. INSTALLATION • Do not place the dryer onto the power cable. • Before contacting the local Authorised 2.1. Removing the Safety Assembly Service Provider for the installation of the dryer, check the information in • Open the loading door. the user manual to make sure that the •... -
Page 14: Adjusting The Feet
3. OVERVIEW IMPORTANT: The water discharge house must be installed at a height of 80 cm maximum. IMPORTANT: The water discharge hose must not be bent between the outlet and the product, folded or stepped over. 2.3. Adjusting the Feet •... -
Page 15: Preparing The Laundry
4. PREPARING THE LAUNDRY 4.1. Sorting the Laundry to be Dried Follow the instructions on the labels of the laundry to be dried. Only dry items that have a statement/symbol that indicates "they can be dried in a dryer". • Do not operate the product with load amounts and laundry types other than those given in 4.3. -
Page 16: Preparing The Laundry To Be Dried
4.3. Load Capacity IMPORTANT: Delicate fabrics, Follow the instructions in the "Programme embroided fabrics, woolen/silk fabrics, selection and consumption table". (See: 5.2 clothes made of delicate and expensive Programme selection and consumption fabrics, airtight clothes and tulle curtains table). Do not load the product with more are not suitable for drying in the dryer. -
Page 17: Using The Tumble Dryer
5. USING THE TUMBLE DRYER 5.1.2. Electronic Indicator and Additional Functions 5.1. Control Panel 1. Programme Selection Knob Display symbols: 2. Electronic indicator and additional functions Water tank warning indicator 5.1.1. Programme Selection Knob Use the programme selection knob to select the desired drying programme Lint filter cleaning warning indicator Condenser cleaning warning indicator... -
Page 18: Programme Selection And Consumption Table
5.2. Programme Selection and Consumption Table Press the Start/Pause button to start the programme. The Start/Pause LED that indicates that the programme has started and the Drying LED will come on. Approximate Washing amount of Duration Programme Load (kg) machine remaining (minutes) spin speed... -
Page 19: Auxiliary Functions
5.2.1. Auxiliary Functions The table that summarises the options that can be selected in programmes is given below. Option Description The humidity level obtained after drying can be increased by 3 levels. This way, level of required dryness can be selected. The levels that can be selected other Drying Level than the standard setting: 1, 2, 3. -
Page 20: Starting The Programme
5.2.2. Starting the Programme The Start/Pause LED will flash during programme selection.Press the Start/Pause button to start the programme. The Start/Pause LED that indicates that the programme has started and the drying LED will come on. Programme Description This programme dries thick and multi-layer fabrics, such as cotton towels, Cotton Extra Dry bedsheets, pillowcases, bathrobes, at a high temperature to allow you to place them in a closet. -
Page 21: Programme Progress
5.2.3. Programme Progress During the Programme If you open the door when the programme is running, the product will switch to standby mode. Once the door has been closed, press the Start/Pause key to resume the programme. Do not open the loading door when the programme is running. - Page 22 OPTIONS PROGRAMMES Anti- Delayed End of Cycle Child Drying Time Drying Crease Start Buzzer Cancel Lock Level Cotton Extra Dry Cotton Cupboard Dry Cotton Iron Dry Synthetics Cupboard Synthetics Iron Dry Delicate Time Drying Baby Care Jeans Sport Wool Refresh Refresh Express 29' Shirts 12'...
-
Page 23: Cleaning And Care
6. CLEANING AND CARE After the dryer has been used for a certain period of time, if you encounter a layer that will cause obstruction on the filter surface, IMPORTANT: Do not use industrial wash the filter with warm water to clean the chemicals to clean your dryer. -
Page 24: Cleaning The Condenser
6.4. Cleaning the Humidity Sensor IMPORTANT: Never remove the water tank when the programme is running. The water condensed in the water tank is not suitable for human consumption. IMPORTANT: DO NOT FORGET TO EMPTY THE WATER TANK AFTER EACH USE. -
Page 25: Cleaning The Inner Surface Of The Loading Door
6.5. Cleaning the Inner Surface of the Loading Door IMPORTANT: DO NOT FORGET TO CLEAN THE INNER SURFACE OF THE LOADING DOOR AFTER EACH DRYING PROCESS. Open the loading door of the dryer and clean all of the inner surfaces and the gasket with a soft, damp cloth. -
Page 26: Technical Specifications
7. TECHNICAL SPECIFICATIONS Brand CORBERÓ Model name CSCEV8007 Height Min: 845 mm / Máx.: 855 mm* Width 596 mm Depth 563 mm Capacity (max.) 7 kg** Net weight (with plastic door) 33,5 kg Net weight (with glass door) 35,8 kg... -
Page 27: Troubleshooting
8. TROUBLESHOOTING Your dryer is fitted with systems that continuously perform checks during the drying process to take the necessary measures and warn you in case of any malfunction. WARNING: If the problem persists even if you have applied the steps in this section, please contact the your dealer or an Authorised Service Provider. - Page 28 PROBLEM REASON SOLUTION Clothes have shrunk, felted or The programme used might not be Check the care labels on the deteriorated. suitable for the type of laundry. laundry items, select a suitable programme for the type of laundry. Water leaking from the loading door. There might be lint accumulated on Clean the inner surfaces of the the inner surfaces of the loading...
- Page 29 9. ENVIRONMENTAL 10. DESCRIBING THE ENERGY PROTECTION AND PACKAGING LABEL AND SAVING ENERGY INFORMATION 10.1. Energy Labelling 9.1. Packaging Information The packaging of this product is made of recyclable materials. Do not dispose of the packaging, waste together with household or other waste. Instead, take it to a packaging collection point defined by your local authority.
- Page 30 10.2. Energy Efficiency • You should operate the dryer to full capacity, but make sure that it is not overloaded. • When the laundry is being washed, the spin speed should be at the highest level possible. This will shorten the drying time and reduce energy consumption.
- Page 31 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2013 Supplier name or trademark CORBERÓ Model name CSCEV8007 Rated capacity (kg) Type of Tumble Dryer Condenser Energy efficiency class Annual Energy Consumption (kWh) Automatic of Non-automatic Automatic Energy Consumption of the standard cotton programme at full load (kWh)
- Page 32 52251532...
