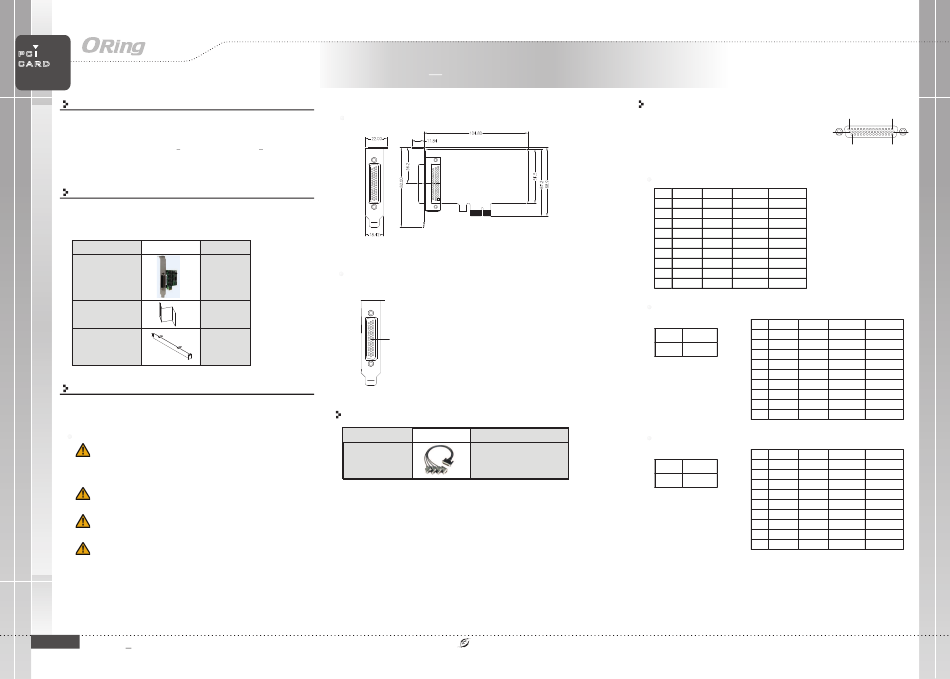

ORiNG PCard-E 041L-D4 Series Quick Installation Manual

PCI
CARD
Q I
uick nstallation
I N D U S T R I A L

Introduction

The 4 Ports PCI Express Cards are designed for POS, ATM and KIOSK
applications. Each card supports 50~921600 baudrate. The PCard-E1041L-
S-D4, PCard-E2041L-S-D4, PCard-E3041L-S-D4 are for 6KV surge protect
models. In addition, the PCard-E 041L-S-D4 x
provide full modem control signals to ensure compatibility with a wide range
of serial peripherals.

Package Contents

The shipped with the following items. If any of these items is
device is
missing or damaged, please contact your customer service representative
for assistance.
Contents Pictures
PCard-E1041L-D4 or
PCard-E2041L-D4 or
PCard-E3041L-D4 or
PCard-E1041L-S-D4 or
PCard-E2041L-S-D4 or
PCard-E3041L-S-D4
QIG
Standard profile bracket

Preparation

Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be
such that a hazardous condition is not achieved due to uneven mechanical
loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing
this concern.
Q I G
PCard-E 041L-D4 Series x
PCard-E 041L-D4 Series
G
uide
Dimension
and PCard-E 041L-D4 series x
Number

Panel Layouts

X 1
Front View
X 1
X 1

Cable Order Information (Optional)

Model Name
9_CYASWL0012_XXB0
1907-2-29-PCAREX041LD4-1.0
x

DB44 Serial Port

Pictures Description
DB44 Male to DB9 MaleX4, 50cm
PRINTED ON RECYCLED PAPER
Industrial 4-Ports PCI Express Card
DB44 Serial Port
The DB44 connector supports RS232 / RS422 / RS485
operation modes. Please refer to the following table for
the pin assignments of the DB44 connector.
For PCard-E1041L-S-D4 / PCard-E1041L-D4
PIN RS232 RS422 4W-RS485 2W-RS485
1 DCD -- -- --
2 RXD -- -- --
3 TXD -- -- --
4 DTR -- -- --
5 GND -- -- --
6 DSR -- -- --
7 RTS -- -- --
8 CTS -- -- --
-- -- -- -- --
For PCard-E2041L-S-D4 / PCard-E2041L-D4

DIP Switch Definition for RS485

PIN RS232 RS422
1 -- TX-
PIN1/PIN2 Pull Hi/Lo
2 -- TX+
PIN3 Terminator
3 -- RX+
4 -- RX-
5 -- GND
6 -- --
7 -- --
8 -- --
-- -- --
For PCard-E3041L-S-D4 / PCard-E3041L-D4
DIP Switch Definition for RS485
PIN RS232 RS422
1 DCD TX-
PIN1/PIN2 Pull Hi/Lo
2 RXD TX+
PIN3 Terminator
3 TXD RX+
4 DTR RX-
5 GND GND
6 DSR --
7 RTS --
8 CTS --
-- -- --
Quick Installation Guide
Version 1.0
15 1
30 16
44 31
DB44 Female connector
4W-RS485 2W-RS485
TX- --
TX+ --
RX+ D+
RX- D-
GND GND
-- --
-- --
-- --
-- --
