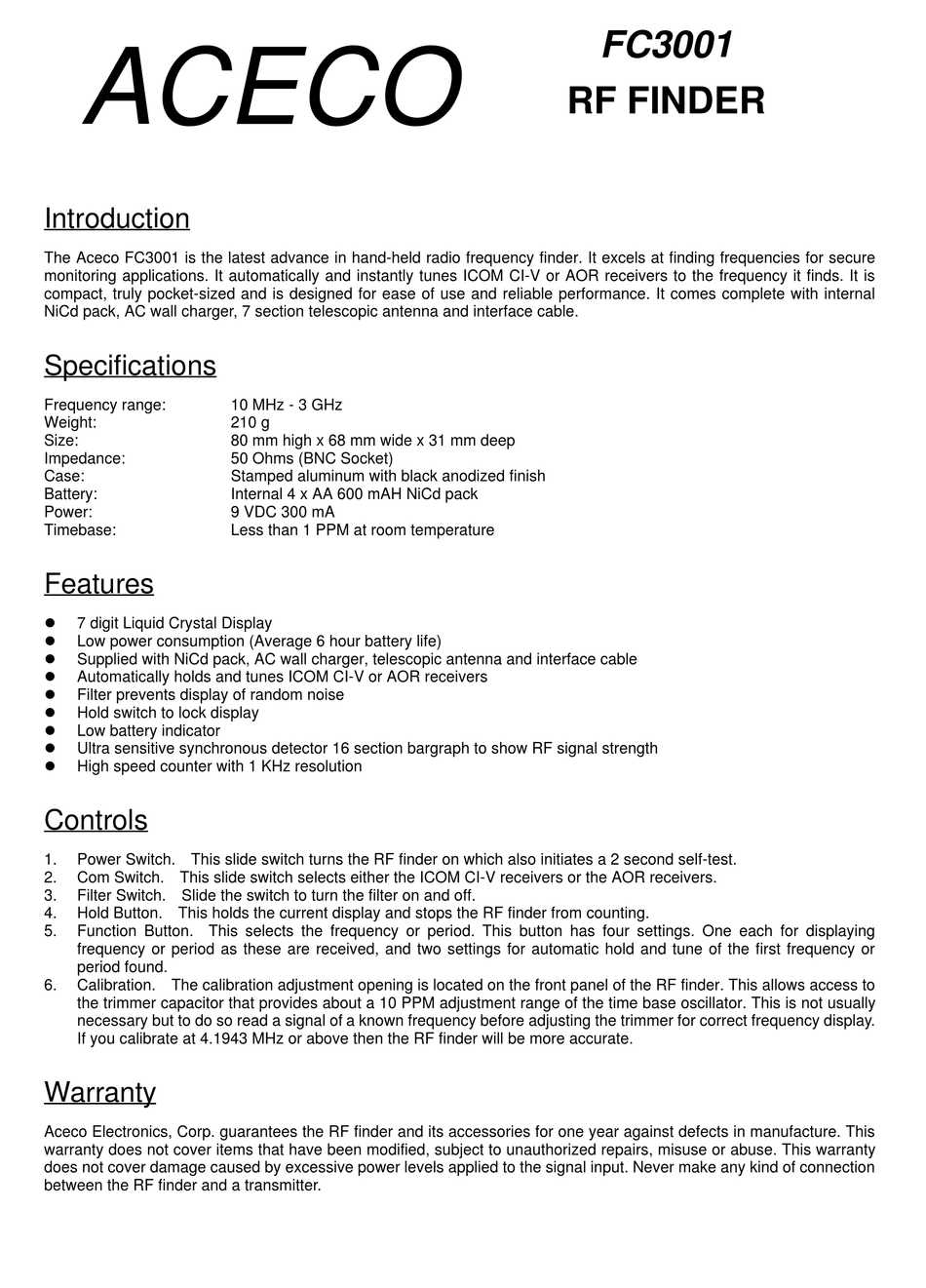

ACECO FC3001 Quick Start Manual

ACECO
Introduction
The Aceco FC3001 is the latest advance in hand-held radio frequency finder. It excels at finding frequencies for secure
monitoring applications. It automatically and instantly tunes ICOM CI-V or AOR receivers to the frequency it finds. It is
compact, truly pocket-sized and is designed for ease of use and reliable performance. It comes complete with internal
NiCd pack, AC wall charger, 7 section telescopic antenna and interface cable.
Specifications
Frequency range:
Weight:
Size:
Impedance:
Case:
Battery:
Power:
Timebase:
Features
l
7 digit Liquid Crystal Display
l
Low power consumption (Average 6 hour battery life)
l
Supplied with NiCd pack, AC wall charger, telescopic antenna and interface cable
l
Automatically holds and tunes ICOM CI-V or AOR receivers
l
Filter prevents display of random noise
l
Hold switch to lock display
l
Low battery indicator
l
Ultra sensitive synchronous detector 16 section bargraph to show RF signal strength
l
High speed counter with 1 KHz resolution
Controls
1. Power Switch. This slide switch turns the RF finder on which also initiates a 2 second self-test.
2. Com Switch. This slide switch selects either the ICOM CI-V receivers or the AOR receivers.
3. Filter Switch. Slide the switch to turn the filter on and off.
4. Hold Button. This holds the current display and stops the RF finder from counting.
5. Function Button. This selects the frequency or period. This button has four settings. One each for displaying
frequency or period as these are received, and two settings for automatic hold and tune of the first frequency or
period found.
6. Calibration. The calibration adjustment opening is located on the front panel of the RF finder. This allows access to
the trimmer capacitor that provides about a 10 PPM adjustment range of the time base oscillator. This is not usually
necessary but to do so read a signal of a known frequency before adjusting the trimmer for correct frequency display.
If you calibrate at 4.1943 MHz or above then the RF finder will be more accurate.
Warranty
Aceco Electronics, Corp. guarantees the RF finder and its accessories for one year against defects in manufacture. This
warranty does not cover items that have been modified, subject to unauthorized repairs, misuse or abuse. This warranty
does not cover damage caused by excessive power levels applied to the signal input. Never make any kind of connection
between the RF finder and a transmitter.
10 MHz - 3 GHz
210 g
80 mm high x 68 mm wide x 31 mm deep
50 Ohms (BNC Socket)
Stamped aluminum with black anodized finish
Internal 4 x AA 600 mAH NiCd pack
9 VDC 300 mA
Less than 1 PPM at room temperature
FC3001
RF FINDER
