Summary of Contents for DMT VT301-R

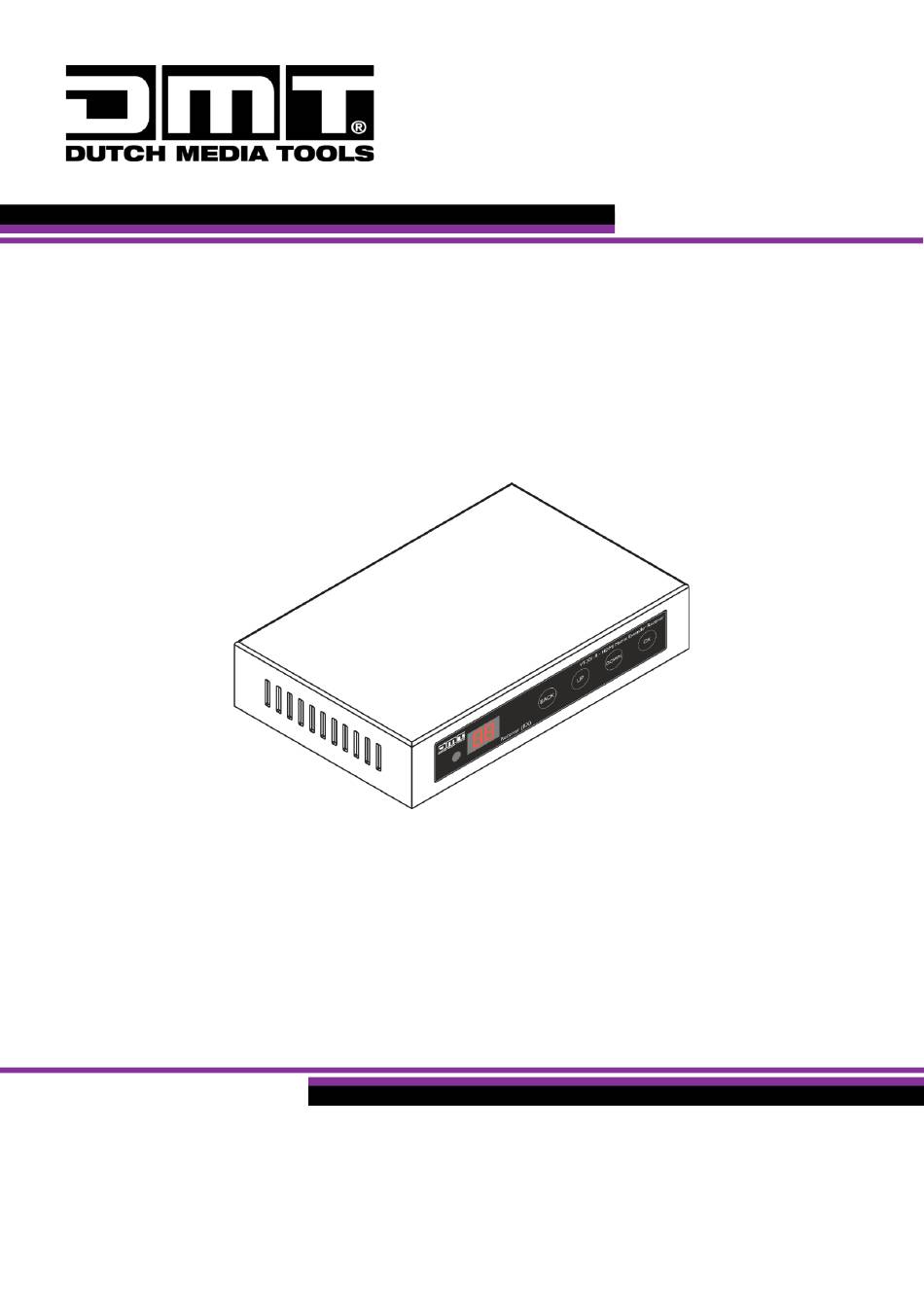

- Page 1 USER MANUAL ENGLISH VT301-R - HDMI Matrix Extender Receiver (RX) Product code: 101262 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 VT301-R - HDMI Matrix Extender Receiver (RX) Preface Thank you for purchasing this DMT product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
VT301-R - HDMI Matrix Extender Receiver (RX) Table of contents Introduction ................................3 Before Using the Product ..........................3 Intended Use ............................... 3 Product Lifespan ..............................4 Text Conventions ..............................4 Symbols and Signal Words ..........................4 Symbols on the Information Label ........................4 Safety .................................. -
Page 4: Introduction
VT301-R - HDMI Matrix Extender Receiver (RX) Introduction Before Using the Product Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. -
Page 5: Product Lifespan
VT301-R - HDMI Matrix Extender Receiver (RX) Product Lifespan This device is not designed for permanent operation. Disconnect the device from the electrical power supply when the device is not in operation. This will reduce the wear and will improve the device’s lifespan. -
Page 6: Safety
VT301-R - HDMI Matrix Extender Receiver (RX) Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. -
Page 7: Requirements For The User
VT301-R - HDMI Matrix Extender Receiver (RX) Attention General safety ● Do not insert objects into the air vents. ● Do not switch the device on and off in short intervals. This decreases the device’s life. ● Do not shake the device. Avoid brute force when installing or operating the device. -
Page 8: Description Of The Device
VT301-R - HDMI Matrix Extender Receiver (RX) Description of the Device The DMT VT301-R - HDMI Matrix Extender Receiver enables you to extend the video signal network of your VT301 HDMI Matrix Extender Set with one additional output channel. You can add this receiver to the setup by attaching the data cable to another sender / receiver or network switch. -
Page 9: Product Specifications
VT301-R - HDMI Matrix Extender Receiver (RX) Product Specifications Model: VT301 - HDMI Matrix Extender Set (TX/RX) Electrical Receiver: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 2,7 W Power supply 5V DC / 2A Physical Receiver: Dimensions: 125 x 80 x 25 mm (LxWxH) -
Page 10: Dimensions
VT301-R - HDMI Matrix Extender Receiver (RX) Dimensions Fig. 04 Fig. 05 Product code: 101262... -
Page 11: Installation
VT301-R - HDMI Matrix Extender Receiver (RX) Installation Installation Site Requirements The device must be installed only indoors. The device can be positioned on a flat surface. The maximum ambient temperature t = 40 °C must never be exceeded. The relative humidity must not exceed 50 % with an ambient temperature of 40 °C. -
Page 12: Setup
VT301-R - HDMI Matrix Extender Receiver (RX) Setup Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Setup Examples One to One Fig. 06 One to Many Fig. 07... -
Page 13: Many To Many
VT301-R - HDMI Matrix Extender Receiver (RX) Many to Many Fig. 08 Product code: 101262... -
Page 14: Operation
VT301-R - HDMI Matrix Extender Receiver (RX) Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for professional use as an HDMI matrix switch. It is suitable only for indoor installation. -
Page 15: Troubleshooting
VT301-R - HDMI Matrix Extender Receiver (RX) Troubleshooting This troubleshooting guide contains actions which can be carried out by the user. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 16: Maintenance
VT301-R - HDMI Matrix Extender Receiver (RX) Maintenance Safety Instructions for Maintenance Maintenance and cleaning shall be carried out only by instructed persons. Follow the maintenance schedule established for the site where the electrical enclosure is installed. Disconnect power supply before servicing or cleaning. -
Page 17: Deinstallation, Transportation And Storage
VT301-R - HDMI Matrix Extender Receiver (RX) Deinstallation, Transportation and Storage ● Disconnect power supply before deinstallation. ● Use the original packaging to transport the device, if possible. ● Always observe the handling instructions printed on the outer carton box, for example: “Handle with care”, “This side up”, “Fragile”. -
Page 18: Disposal
VT301-R - HDMI Matrix Extender Receiver (RX) Disposal Correct disposal of this product Disposal of Old Electrical and Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. -
Page 19: Approval
VT301-R - HDMI Matrix Extender Receiver (RX) Approval Check the respective product page on the website of Highlite International (www.highlite.com) for an available declaration of conformity. Product code: 101262... - Page 20 ©2021 DMT...
