MB QUART N1-WBT Quick Start Installation Manual

Congratulations on your choice of a MBQuart Bluetooth
controller. This "Quick Start" Installation guide is meant to
help you complete a basic installation. For more detailed
information, visit our website at MBQuart.com
CAUTION
Always consider consulting a professional audio installer
before installing any audio components. Be careful and take
your time. Do not let wires make contact with metal edges or
hot engine components.

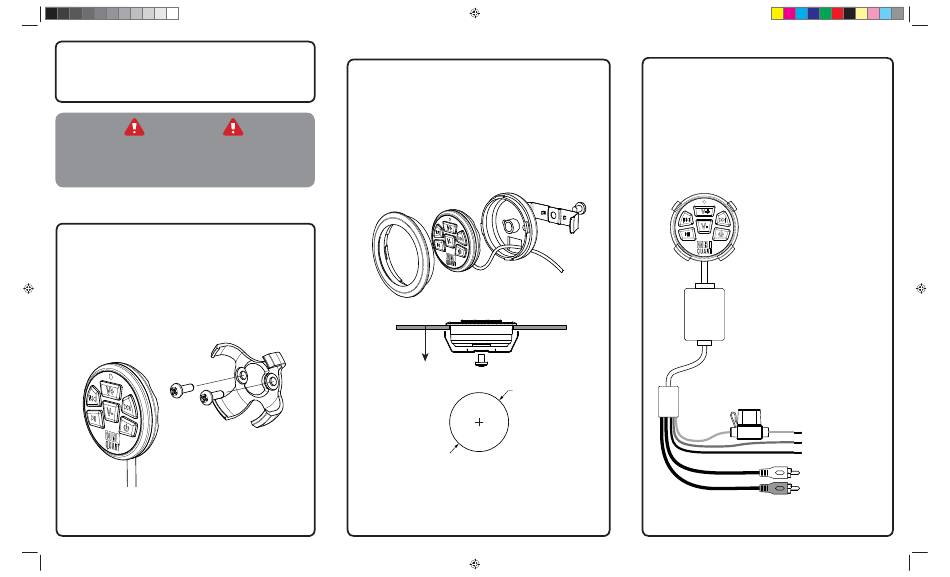

Surface Mounting
The controller can be mounted on any fl at surface using the surface
mount cradle. This will allow the controller to be removed for use in
hand as well as kept in the cradle when not in use.
Before drilling any holes make sure there are no obstructions behind
the mounting surface. Also make sure there is enough space around
the cradle to remove and replace the controller easily.
MBQ N1-WBT QSG 01.indd 1 MBQ N1-WBT QSG 01.indd 1
Flush Mounting
This method will allow the controller to sit fl ush to the mounting
surface. This requires a perfectly fl at surface and ideally should have
access to the rear of the mounting panel.
Before drilling the mounting hole, make sure there are no
obstructions behind the mounting area.
35mm (1-3/8")
minimum clearance
55mm
2.18" (2-3/16")
Wiring
The wiring and connections should be secure and away from any
moving parts or extremely hot surfaces.
The RCA signal output can be connected directly to an amplifi er or
to the auxiliary input of an audio head unit.
The blue remote wire provides a +12V output to turn on an
amplifi er.
+12V (red)
REMOTE (blue)
GROUND (black)
LEFT OUTPUT (white)
RIGHT OUTPUT (red)
