Page 1 User Manual SN-1SD (cod. KUNS1S) DT01376HE0409R00 1/32...
Page 2 2/32...
Page 3: Table Of Contents
Camera Server PREFACE ............................. 5 PRODUCT SPECIFICATIONS......................5 III. PRODUCT INSTALLATION ......................8 ........................8 ARDWARE NSTALLATION IP A ..........................8 SSIGNMENT ........................... 10 ONITOR ETTING : ......................11 NSTALL CTIVE CONTROL LIVE VIDEO ........................... 13 CONFIGURATION ..........................15 ............................15 YSTEM ............................
Page 4 4/32...
Page 5: Preface

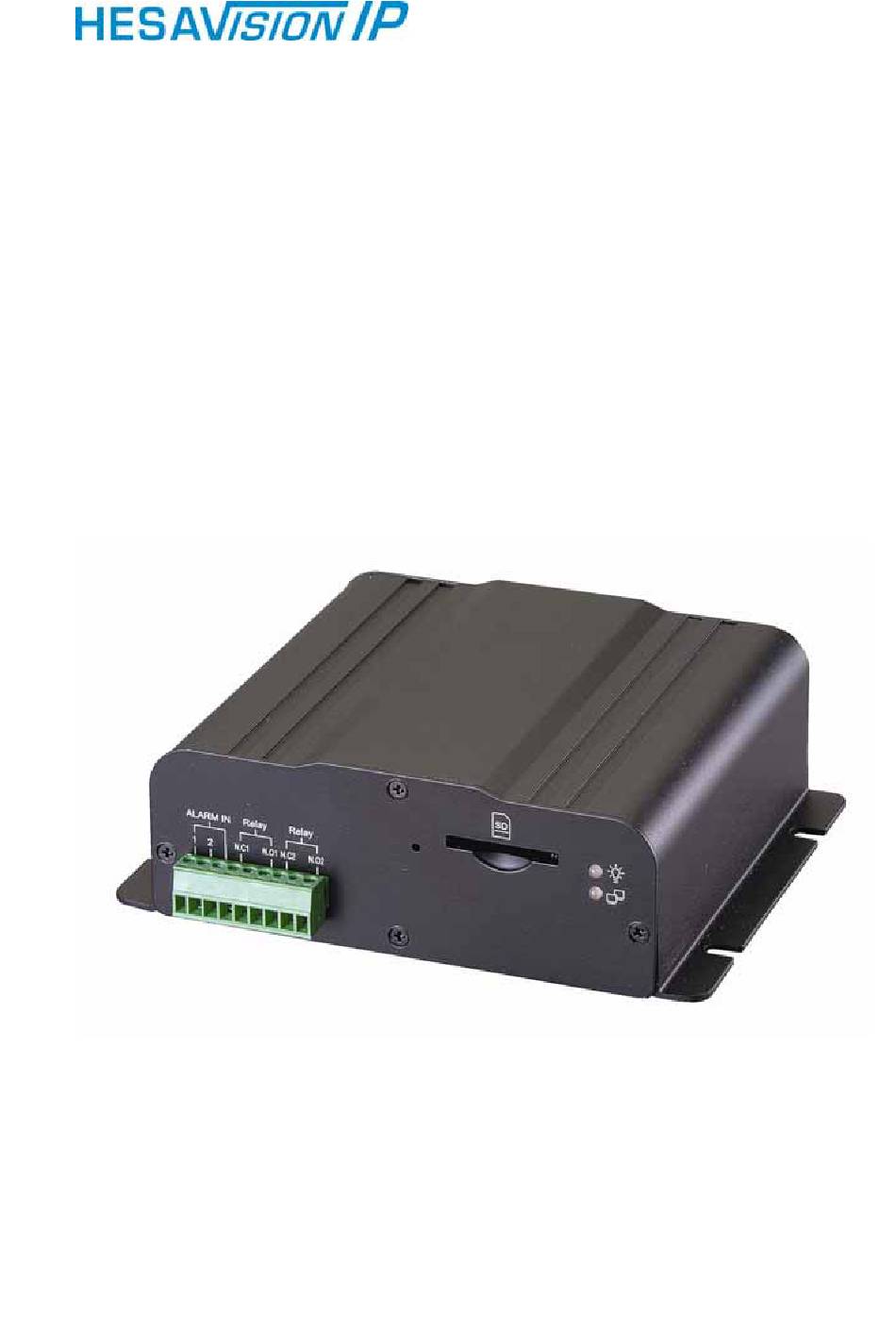

I. Preface SN-1SD is a 1 channel video server. It builds in web server. User views real-time video via IE browser. SN-1SD supports MPEG-4 and M-JPEG video compression which provides smooth and high quality video. The video can be stored in the SD card, and can be playback remotely.
Page 6 Product Specifications Hardware ARM 9 ,32 bit RISC 64MB Video in/ out 1 in/ 1 out, BNC connector Audio in/ out 1 in/ 1 out 2 in/ 2 Relay out (COM. & N.O. & N.C.) RS-485 1, for PTZ control RS-232 Power Consumption DC 12V, 1A, 4W...
Page 7 Windows 2000, XP, 2003, IE 6 or above Hardware Suggested Intel-C 2.0G, RAM: 512MB, Graphic card: 64MB Minimum Intel-C 1.6G, RAM: 256MB, Graphic card: 32MB 7/32...
Page 8: Product Installation
III. Product Installation A. Hardware Installation Connect power adaptor Connect Ethernet cable iii. Set up the network configurations according to the network environment. For further explanation, please refer to chapter VI, “Network Configuration for SN-1SD”. B. IP Assignment Use the software, “IP Installer” to assign the IP address of SN-1SD . The 8/32...
Page 9 software is in the attached software CD. There are two languages for the IP installer IPInstallerCht.exe: Chinese version IPInstallerEng.exe: English version iii. There are 3 kinds of IP configuration. Fixed IP (Public IP or Virtual IP) DHCP (Dynamic IP) Dial-up (PPPoE) Execute IP Installer For Windows XP SP2 user, it may popup the following message box.
Page 10: Monitor Setting
vii. IP Installer searches all the IP cameras which connect to the intranet and lists on the left side of the IP Installer. Just click the “Search Device” to re-search again. viii. Click one of the IP camera listed on the left side. The network configuration of this IP camera will show on the right side.
Page 11: Install Active Xcontrol
D. Install ActiveX control: For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. Tools Internet Options… Security Tab Custom Level…...
Page 12 When popup the following dialogue box, click “Yes”. 12/32...
Page 13: Live Video
IV. Live Video Start a IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name and password. The default user name and password are “admin” and “admin”. When connect to the SN-1SD The following GUI shows.
Page 14 : Get into the administration page : Video Snapshot Show system time, video resolution, and video refreshing rate SN-1SD supports 2-way audio. Click the “Chatting” check box. The you can use microphone which connect to the PC to talk to server side, which is SN-1SD side.
Page 15: Configuration
V. SN-1SD Configuration Click to get into the administration page. Click to back to the live video page. A. System System Information Set up the camera name, select language, and set up the camera time. Server Name: This is the Camera name. This name will show on the IP Installer.
Page 16 Server time setting: Use NTP or Input Date & Time manually. User Management SN-1SD supports three different users, administrator, general user, and anonymous user. 16/32...
Page 17 Anonymous User Login: Yes: Allow anonymous login No: Need user name & password to access this IP camera Add user: Type the user name and password, then click “Add/Set”. Click “edit” or “delete” to modify the user. System update: 17/32...
Page 18: Network
To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to the procedure. Reboot system: re-start the IP camera Factory default: delete all the settings in this IP camera. B.Network IP Setting SN-1SD supports DHCP and static IP. Static IP Type IP address, subnet mask, gateway, and DNS manually.
Page 19 Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed: When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to “Mail and FTP”...
Page 20 Key-in user name. Click “Apply”. DDNS Status Updating: Information update Idle: Stop service DDNS registration successful, can now log by http://<username>.ddns.camddns.com: Register successfully. Update Failed, the name is already registered: The user name has already been used. Please change it. Update Failed, please check your internet connection: Network connection failed.
Page 21 Click “Enabled” to enable wireless connection Follow the wireless AP you use to set up the parameter in this page. For operation mode, it will detect the wireless mode, or you can select by yourself. To use static IP, disable the DHCP. SN-1SD W supports “WEP”...
Page 22: Multimedia
C.Multimedia Image Setting Adjust “Brightness”, “Contrast”, “Hue”, “Saturation” and “AE Reference” to get clear video. Video Setting Basic Mode: Resoultion: 22/32...
Page 23 There are 3 resolutions to choose. Full D1 – 720X480 (NTSC), 720X576 (PAL) CIF – 352X240 (NTSC), 352X288 (PAL) QCIF – 176X120 (NTSC), 176X144 (PAL) Quality: There are 5 levels to adjust, The higher the quality is, the bigger the file size is. Video System: Please select 60 (Hz) if you are in America, Taiwan…...
Page 24: Event
Audio: SN-1SD supports 2-way audio. For IP camera to local PC, select “Enable” to start this function. For local PC to IP camera, check “chatting” in the browsing page. The Audio will not be smooth when enable SD card recording function simultaneously. D.Event SN-1SD provides multiple event settings.
Page 25 SN-1SD allows 3 areas motion detection. When motion is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, and save video to local SD card. To set up the motion area, click “Area Setting”. Using mouse to drag the area.
Page 26 HLC-830 supports 2 input/ 4 output. When input is triggered, it can send the video to some specific mail addresses, transmit the video to remote ftp server, trigger the relay, and save video to local SD card. Mail & FTP To send out the video via mail of ftp, please set up the configuration first.
Page 27 Playback: It will show the capacity of the SD card. Click the date listed on this page. It will show the list of the video. The video format is AVI. Click the video to start Microsoft Media Player to play it. To delete the video, check it, then click Del.
Page 28: Network Configuration
The Pre/ Post Alarm are adjustable in SN-1SD . VI. Network Configuration Configuration 1: Internet Access: ADSL or Cable Modem IP address: One real IP or one dynamic IP Only SN-1SD connects to the internet For fixed real IP, set up the IP into SN-1SD . For dynamic IP, start PPPoE.
Page 29: Factory Default
Internet Access: ADSL or Cable Modem IP address: More than one real IP or one dynamic IP SN-1SD and PC connect to the internet Device needed: Switch Hub For fixed real IP, set up the IP into SN-1SD and PC. For dynamic IP, start PPPoE.
Page 30: Package Contents
Press and hold the button in the back of SN-1SD . Power on the camera. Don’t release the button during the system booting. It will take around 30 seconds to boot the camera. Release the button when camera finishes proceed. Re-login the camera using the default IP (http://192.168.1.200), and user name (admin), password (admin).
Page 31 31/32...
Page 32 DT01376HE0409R00 32/32...
