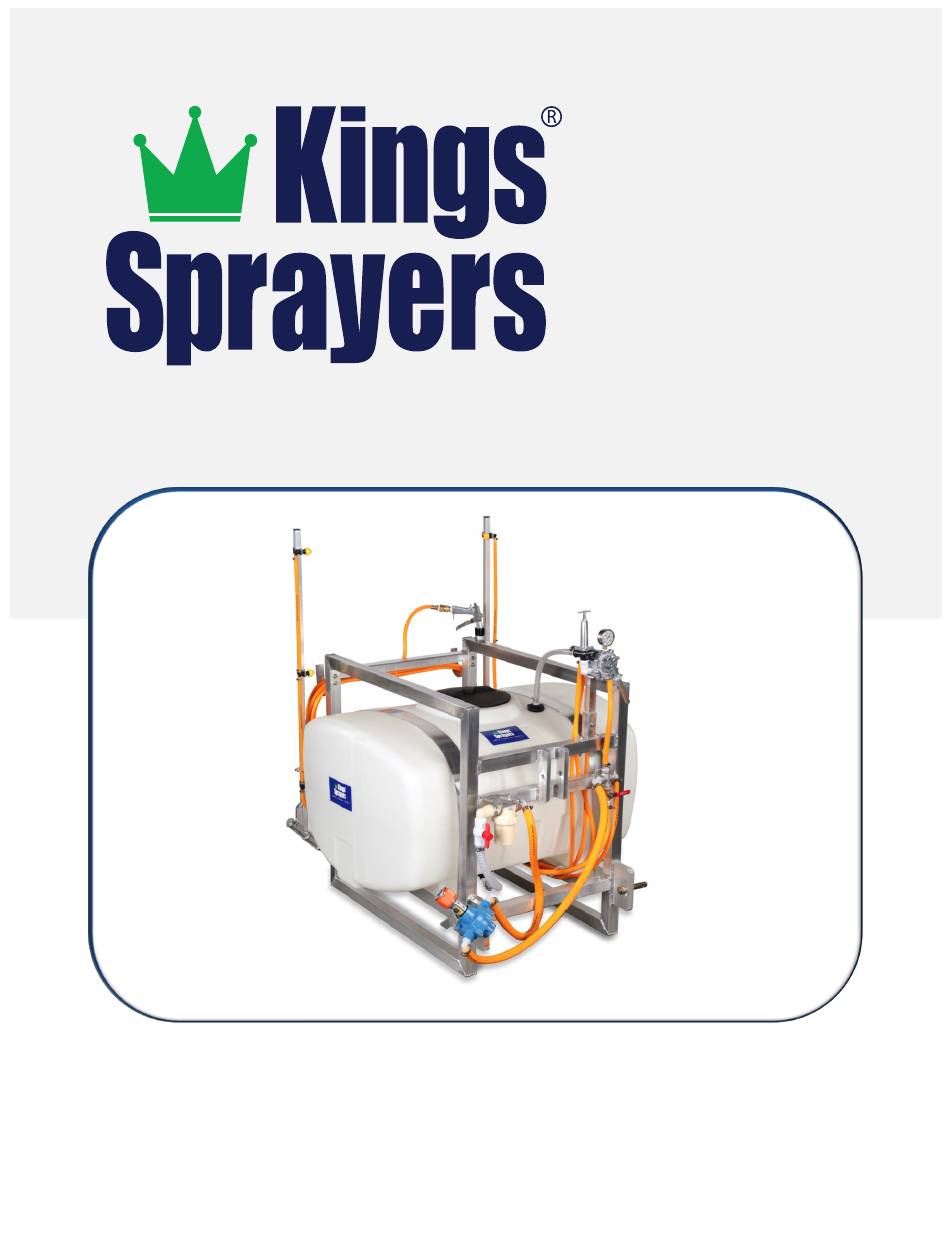

- Page 1 Model # : K 3PTH100B12 User Manual Read this manual for complete instructions Need help? Call Kings Sprayers if you have any questions with this product. Technical service hours: Monday – Friday, 8:00 a.m. – 5:00 p.m. ET 1-800-228-0905 info@kingssprayers.com...
-
Page 2: Table Of Contents
Model #: K3PTH100B12 Table of Contents Warranty .......................... 3 General Safety Information ................... 3 Hazardous Substance Alert ..................4 Sprayer Components ..................... 5 Getting Started ....................... 7 Starting Your 3-Point Hitch Sprayer for the First Time ............7 Shutting Down Your 3-Point Hitch Sprayer ................7 Troubleshooting Your Sprayer .................. -
Page 3: Warranty
(RMA#) before returning any products. The RMA number should be clearly marked on the outside of the package. Kings Sprayers shall not be liable for freight damage incurred during shipping. All products returned for warranty work should be sent shipping charges prepaid. -
Page 4: Hazardous Substance Alert
DO NOT perform service or maintenance to the pump or attached components until the pumping unit is below 109°F Only authorized operators having the knowledge and skill necessary to safely use the pump, or any equipment the pump is connected to, may run the pump. When running roller pumps, it is essential that operators use hearing protection as the sound levels reach levels of 80 decibels. -
Page 5: Sprayer Components
Sprayer C omponents Inline s trainer t o k eep d ebris out o f s ystem Ball v alve t o s hut o ff f low when ... - Page 6 Quick d isconnect t o s pray g un Unobstructed b ypass l ine PTO q uick c oupler ...
-
Page 7: Getting Started
Getting S tarted Starting Y our 3 -‐Point H itch S prayer f or t he F irst T ime Ensure all unnecessary personnel are clear of the area. For initial testing, it is recommended to start with clean water instead of chemicals to confirm the system and plumbing components are leak free. -
Page 8: Troubleshooting Your Sprayer
Troubleshooting Y our S prayer Symptom Possible Reason Correction Pump does not prime Leak in suction line Check hose and fittings for leaks and correct Obstruction in suction line Inspect hose for obstructions such as debris or loose inner liner and remove from the line Suction hose sucked to Cut a notch or “V”...
