- Page 1 MYAMPLIFIERS.COM INSTALLATION GUIDE MOBIL SIGNAL FORSTÆRKER Nikrans NS-2500 Freq.: 900 MHz Dækning: 21600 ft²...
-
Page 2: Safety Warnings
PREFACE This user’s manual describes the installation and maintenance of wide band consumer boosters. Please do read user manual carefully before installing and maintaining repeaters. The information in this manual is subject to change without prior notice. SAFETY WARNINGS Users must follow the principles below? Repeater should follow system requirements;... -
Page 3: Introduction And Reasons For Weak Cellular Signals
INTRODUCTION AND REASONS FOR WEAK CELLULAR SIGNALS Cell Phone Signal Booster is a perfect solution for providing improvement of cellular signal reception inside a house, office, restaurant, VIP Room, apartment, building or shopping mall. Generally cell phones cannot pick up or maintain a strong cellular signal due to one of the two following reasons: 1. -
Page 4: Model Description

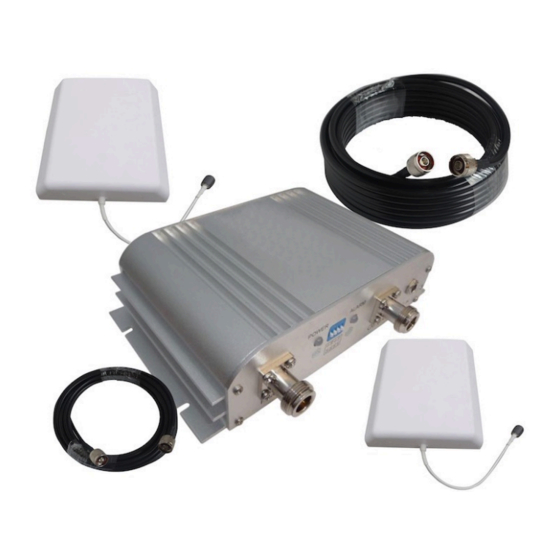

MODEL DESCRIPTION Nikrans NS2500 is used to extend coverage zone of GSM signal. It functions at 900 MHz frequency which makes it suitable for mobile providers in the EU and most countries all over the world. This booster improves cellular signals over the area of up... -
Page 5: Specification
SPECIFICATION Indendørs dækning: 21600 ft² up-link frekv. : 880-915 MHz Down-link frekv.: 925 - 960 MHz up-link forstærkning: 65 dB Down-link forstærkning: 70 dB Power-output: Input AC90~264V,output DC5V/2A Arbejdstemp °C: -25/+55 Fugtighed: 5 - 95 % Størrelse (mm): 129*95*30mm Forstærker-vægt: 1 kg dBm: 20 dBm... -
Page 6: Repeater System Overview
REPEATER SYSTEM OVERVIEW The picture below shows how simple and fast booster installation is and how effectively it works. A Yaggi or panel antenna (it depends on the booster model and its power), as donor/outdoor antenna, is installed at the top of the roof to pick up good mobile signals from the base station, and sends them through the cable to the booster where the signals get amplified significantly;... -
Page 8: Antennas And Cables Setting Up
ANTENNAS AND CABLES SETTING UP Outdoor antenna installation The repeater’s main function is to improve weak RF signals in an area. The formula is: Input power + Gain= Output power. The signal strength from an outdoor antenna directly affects the efficiency of the indoor coverage. It is very important to choose the correct outdoor antenna location in order to get the best signal. -
Page 9: Cable Layout And Connector Assembly
Installation of Yagi wide band antenna as an outdoor antenna Installation of a Yaggi antenna as an outdoor antenna Cable layout and connector assembly 1. Keep the type, specifications, routing direction, location and curvature radius of cables in compliance with the model requirements. -
Page 10: Indoor Antenna Installation
ground wire isn’t looped or coiled. The suitable grounding locations can as follows: a ground rod (a metal rod normally buried outside the house), an electrical service panel (it is connected to the ground rod of the house), metal structure of a building (provided that this structure is grounded itself). - Page 11 2. It is better to use a directional panel antenna or Yaggi antenna when the area shape is long and narrow (corridors, long row of houses in two sides, tunnels or elevators or rural open space). Requirements to indoor antenna installation: •...
-
Page 12: Repeater Installation
REPEATER INSTALLATION Installation requirements Installation Location Requirements 1. The repeater shall be installed indoor in a cool, dry and ventilated room without erosive gas or smoke, or on a cool and ventilated wall to ensure excellent heat dissipation. 2. Installation height should be sufficient for RF cable wiring, heat dissipation and maintenance. 3. - Page 13 INSTALLATION STEPS 1. Find an appropriate position for an outdoor antenna. ( see the r equirements in 6.1. sect. ) 2. Plug in the outdoor antenna to the mobile booster from BS side and fasten tightly. 3. Plug in the indoor antenna to the mobile booster from MS side and fasten tightly. 4.
-
Page 14: Repeater Settings
Repeater’s ports description 1. Outdoor port: connected with the outdoor antenna by cable 2. Indoor port: connected with indoor antenna directly or by cable 3. DC IN: connected with power supply. Accessories selection Choosing accessories pay attention to the two characteristics – frequency and impedance. All accessories shall support the repeater’s frequencies. -
Page 15: Manual Gain Control (Mgc)
Status ALARM It is working in linearity Green Warning: Input signals may be not enough, so please check on coverage effect, do not do anything if it is good coverage; otherwise please adjust the repeater system to get better coverage. A little bit stronger input signals or slight self oscillation have occurred. -
Page 16: For Single System Plastic Closet
DIP switch uplink attenuation setting: 0 dB 5 dB 10 dB 15dB For single system plastic closet? Turn ON the dip switches to reduce gain as follows: Put ON a pair of switches for a total of 15dB reduction in gain. (DL1 &... -
Page 17: For Dual System Plastic Closet
Put ON a pair of switches for a total of 15dB reduction in gain. (DL1 & UL1 – Alarm Low) – For 800MHz or 900 MHz Band (DL2 & UL2 – Alarm High) – For 1700, 1800, 1900 & 2100 MHz Band For dual system plastic closet? Turn ON the dip switches to reduce power as follows: Put ON a pair of switches for a total of 15dB reduction in gain. -
Page 18: Repeater Commissioning
Repeater Commissioning Downlink gain setting First the alarm LED only indicates the downlink input power level, here we use color of Alarm LED to adjust the gain of the repeater. Alarm LED color must remain green. As for the downlink working performance, it is a good working point that Alarm LED maintains “Green”... -
Page 19: System Test
System Test Check whether the coverage is good 1. Take a test with a mobile phone or a data card (engineering mobile phone is preferred). If the signals in most areas have not been improved, please check recommendations below again: - Weak input signal leads to low output power. -
Page 20: Repeater Can Not Communicate In Power-On Status
Remark: • Reduce attenuation values * — by ensuring the isolation level • Increase output power * — recommended ways: to adjust outdoor antenna direction/location, or replace it to an antenna with higher gain to increase input signal strength. Repeater can not communicate in Power-ON status 1. -
Page 21: Will Booster Increase The Rf Radiation
1. Will booster increase the RF radiation? No, it will decrease instead. Every cell phone irradiates heavily being in zones with poor mobile signal as a cell phone is constantly in searching mode. The danger is your cell phone is about 2cm to your body, which makes its usage rather harmful. And when a booster is installed, it improves the mobile signals in the coverage, and your cell phone stops irradiating strongly, thus it will reduce the RF radiation of the mobile phone tremendously. -
Page 22: About Nikrans Brand
ABOUT NIKRANS BRAND Nikrans boosters is the result of a 7-year experience in selling cell phone signal amplifiers throughout EMEA, APAC, NAR and other regions. For all these years we’ve been following the market carefully listening to customers and industry leading experts with the aim of working up our own vision and quality standards in signal amplification. - Page 23 Hereby, Nikrans declares that this signal booster is in compliance with the essential requirements and other relevant provisions of Radio Equipment Directive (RED) 2014/53/UE (CE marking). contact@myamplifiers.com · +16178610605 (Sales) · MyAmplifiers.com...
