Installation, Operation and Maintenance
Owner's Manual
Non-certified:
S1Q-PA, S2Q-PA, S5Q-PA, S8Q-PA, S12Q-PA,
SSM-17, SSM-24, SSM-37, SSM-39
NSF Standard 55 Class B Certified:
SV5Q-PA, SV8Q-PA, SV12Q-PA,
SSMV-24, SSMV-37, SSMV-39
Manufactured in Canada by:
425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1
t. (+1) 519.763.1032 • tf. 1.800.265.7246 (US and Canada only)
t. +31 73 623 8116 (Europe only) • f. (+1) 519.763.5069
e-mail: info@viqua.com
www.viqua.com
520104_Rev_E
Advertisement
Table of Contents
Related Manuals for Trojan Technologies Viqua Sterilight Silver S1Q-PA
Summary of Contents for Trojan Technologies Viqua Sterilight Silver S1Q-PA

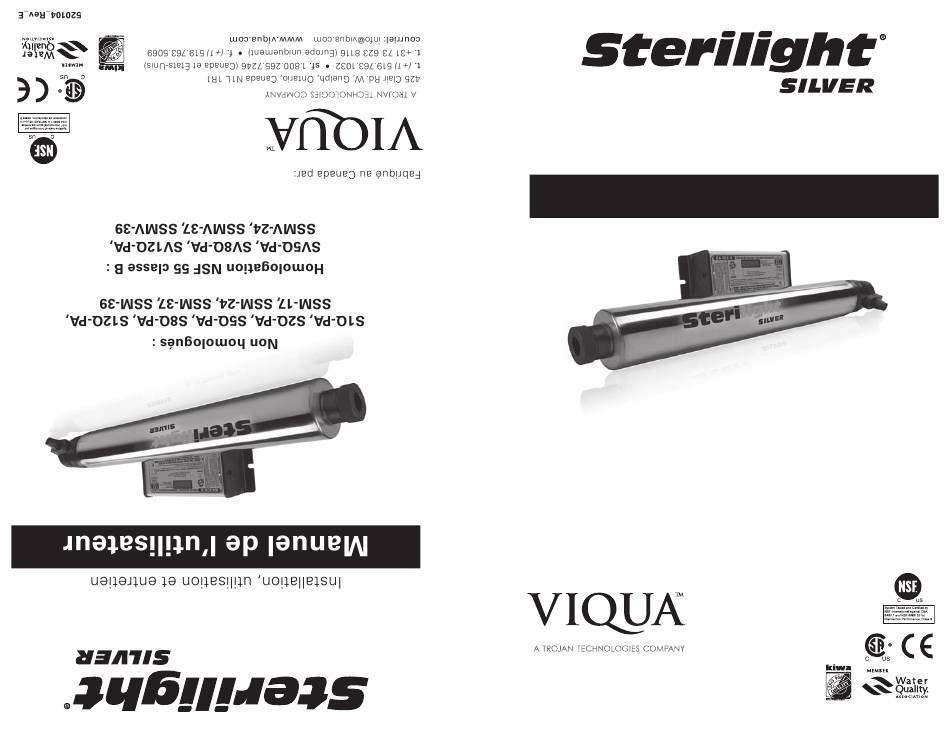

- Page 1 Installation, Operation and Maintenance Owner’s Manual Non-certified: S1Q-PA, S2Q-PA, S5Q-PA, S8Q-PA, S12Q-PA, SSM-17, SSM-24, SSM-37, SSM-39 NSF Standard 55 Class B Certified: SV5Q-PA, SV8Q-PA, SV12Q-PA, SSMV-24, SSMV-37, SSMV-39 Manufactured in Canada by: 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t.
- Page 3 Sterilight genuine If it’s part, it shouldn’t be part of your system. WATER CONFIDENCE Each component of your VIQUA system has been designed and developed through extensive research and development to be part of an overall system that operates safely and efficiently over its entire lifetime. get genuine Sterilight lamps are: Safety certified.

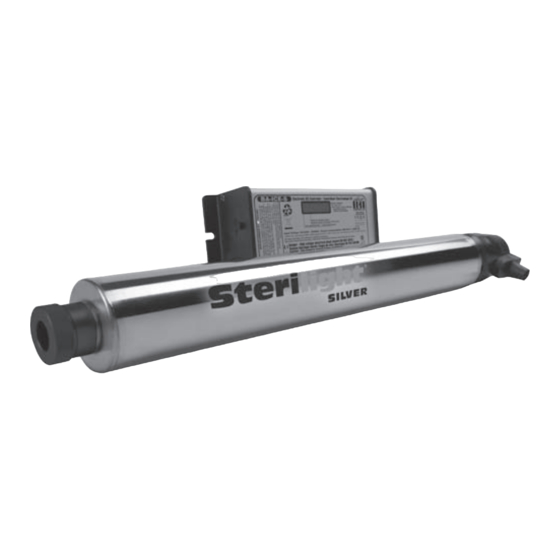

- Page 4 Congratulations , you have just purchased a Sterilight Silver™ ® UV disinfection system. By purchasing this device, you have taken the first step in ensuring the safety of your water supply by using a totally non-intrusive, physical disinfection method. Your Sterilight system uses the most advanced UV technology on the market and is designed to provide you with years of trouble free operation with...
-
Page 5: Table Of Contents
Table of Contents: Parts / Schematic Breakdown Safety Instructions Water Chemistry Installing Your UV Disinfection System Disinfection Procedure Operating and Maintenance Instructions 8-10 Operation 11-14 Troubleshooting 15-16 Silver Series Dose Flow Chart Specifications 17-18 Manufacturer’s Warranty *CSA/UL certification with approved power cord and lamps only. Symbols: Protective Caution... - Page 6 Parts: Controller POWER - 100-240V/50-60HZ BA-ICE-S SILVER “BASIC” SYSTEM BA-ICE-SM SILVER “PLUS” SYSTEM mounting brackets - 410846 NOTE: S12Q-PA, SV12Q-PA, SSM-39 and SSMV-39 use Hard glass, coated Sterilume ®- mounting bracket - 410076 UV lamps for long, consistent life (9000 hours) lamp connector S287RL FOR S1Q-PA...
-
Page 7: Safety Instructions
Safety Instructions: WARNING - to guard against injury, basic safety precautions should be observed, including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS. GROUNDING This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electrical shock. - Page 8 Intended for indoor use only. Do not install this disinfection system where it will be exposed to the weather or to temperatures below freezing. Do not store this disinfection system where it will be exposed to the weather. Do not store this disinfection system where it will be exposed to temperatures below freezing unless all water has been drained from it and the water supply has been disconnected.
-
Page 9: Water Chemistry
Water Chemistry: Water quality is extremely important for the optimum performance of your UV system. The following levels are recommended for installation: • Iron: < 0.3 ppm (0.3 mg/L) • Hardness*: < 7 gpg (120 mg/L) • Turbidity: < 1 NTU •... - Page 10 CUTOMER SUPPLIED GFCI CIRCUIT TO MATCH VOLTAGE OPTIMAL FLOW RESTRICTOR NOTE: MANDATORY FOR NSF CERTIFIED SYSTEMS NOTE: UV SYSTEM SHOULD BE INSTALLED LAST 1. The above picture shows the installation of a typical disinfection system and the related components that may be used for the installation.
- Page 11 3. Mount the system to the wall using the supplied clamps. Various connection methods can be used to connect the water source to the system, however union type connectors are recommended. The use of a flow restrictor device is strongly recommended when installing your system in order to maintain the manufacturers rated flow rate.
-
Page 12: Disinfection Procedure
Disinfection Procedure: UV disinfection is a physical disinfection process and does not add any potentially harmful chemicals to the water. As UV does not provide a disinfection residual, it is imperative that the entire distribution system located after the UV be chemically disinfected to ensure that the water is free from any bacteriological contaminants. -
Page 13: Operating And Maintenance Instructions
OPERATION • Always disconnect power before performing any work on the disinfection system. • Regularly inspect your disinfection system to ensure that the power indicators are on and no alarms are present. • Replace the UV lamp annually (or biennially if seasonal home use) to ensure maximum disinfection. - Page 14 retaining nut, slide the metal ring back in to lock the connector in place (Figure 2E). As this connector is keyed to the reactor chamber, make sure the notch on the connector (Figure 2D) is located over the ground lug located on the reactor chamber. Quartz Sleeve Replacement / Cleaning: 1.
- Page 15 UV Sensor Replacement / Cleaning (SSM/SSMV models only): The UV sensor is very delicate instrument. Extreme care is required when handling and cleaning. The sensor window itself is constructed from quartz which is extremely fragile, be careful you do not chip or break this quartz window. Manufacturer’s warranty does not cover damage due to neglect or misuse.
-
Page 16: Operation
Operation: Basic Systems incorporating BA-ICE-S controller: 1. Lamp life remaining (days): The controller tracks the number of days of operation of the lamp and the controller. The default screen will display the total lamp life remaining (in days). The controller will count down the number of days remaining until the lamp requires changing (365 days to 1 day). - Page 17 “Plus” Systems incorporating BA-ICE-SM controller: 1. UV intensity (%): The Silver “Plus” series of products incorporate a UV sensor which detects the discrete 254 nm wavelength of the UV lamp. This information is relayed to the Silver “Plus” controller and is the default display shown in “% UV output”...
- Page 18 Possible causes for low UV alarm conditions: a) The UV lamp has perhaps reached a level whereby it can no longer adequately provide a sufficient level of disinfection due to age (> 9000 hours). The lamp should be replaced with a new lamp from the manufacturer of the same size and type. b) The quartz sleeve and/or the sensor window have become stained or dirty.
- Page 19 6. 4-20mA output (optional): For those looking for the capability to transmit the UV intensity data to a remote location via a 4-20 mA signal, an optional “Y” cable is available from your dealer (Figure 5A). Please order PN 260134. This “Y” cable comes with 20 meters (65‘) of cable for the 4-20 mA signal.
-
Page 20: Troubleshooting
Troubleshooting: TROUBLESHOOTING GUIDE Symptom Possible Causes Solutions • replace filter cartridge with appropriate 5 Sediment pre-filter micron cartridge clogged Note: check source water supply as Pressure Drop fluctuations may occur in source pressure • flow regulator will result in pressure drop Flow regulator when approaching full flow •... -
Page 21: Silver Series Dose Flow Chart
DISPLAY FAULT MODES LED display reads • lamp life expired - countdown is at “0” days “A3” • press reset button for a deferred alarm, replace UV lamp • controller is in lamp failure mode • power system down, allowing it to reset itself; apply power in order LED display is blank to confirm that the controller is able to power lamp... -
Page 22: Specifications
Specifications Silver “BASIC” (non-certified) and Certified: MODEL S1Q-PA S2Q-PA S5Q-PA/ S8Q-PA/ S12Q-PA/ SV5Q-PA SV8Q-PA SV12Q-PA NSF Class B 26.5 lpm 13.6 lpm 34.8 lpm Certified (7 gpm) (3.6 gpm) (9.2 gpm) 16mJ/cm (0.8 m /hr) (1.6 m /hr) (2.1 m /hr) @ 70% UVT US Public... - Page 23 Specifications Silver “PLUS” (non-certified) and Certified: MODEL SSM-17 SSM-24/ SSM-37/ SSM-39/ SSMV-24 SSMV-37 SSMV-39 NSF Class B 13.6 lpm 26.5 lpm 34.8 lpm Certified (3.6 gpm) (7 gpm) (9.2 gpm) 16mJ/cm (0.8 m /hr) (1.6 m /hr) (2.1 m /hr) @ 70% UVT US Public Health 15 lpm...
-
Page 24: Manufacturer's Warranty
Manufacture’s Warranty: Our Commitment VIQUA is committed to ensuring your experience with our products and organization exceeds your expectations. We have manufactured your UV purification system to the highest quality standards and value you as our customer. Should you need any support, or have questions about your system, please contact our Technical Support team at 1.800.265.7246 or technicalsupport@viqua.com and we will be happy to assist you. - Page 25 One-Year Limited Warranty for Lamps, Sleeves and UV Sensors VIQUA warrants lamps, sleeves and UV sensors to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. During this time, VIQUA will repair or replace, at its option, any defective parts covered by the warranty.Your dealer will process your claim and advise whether the defective item needs to be returned for failure analysis.
