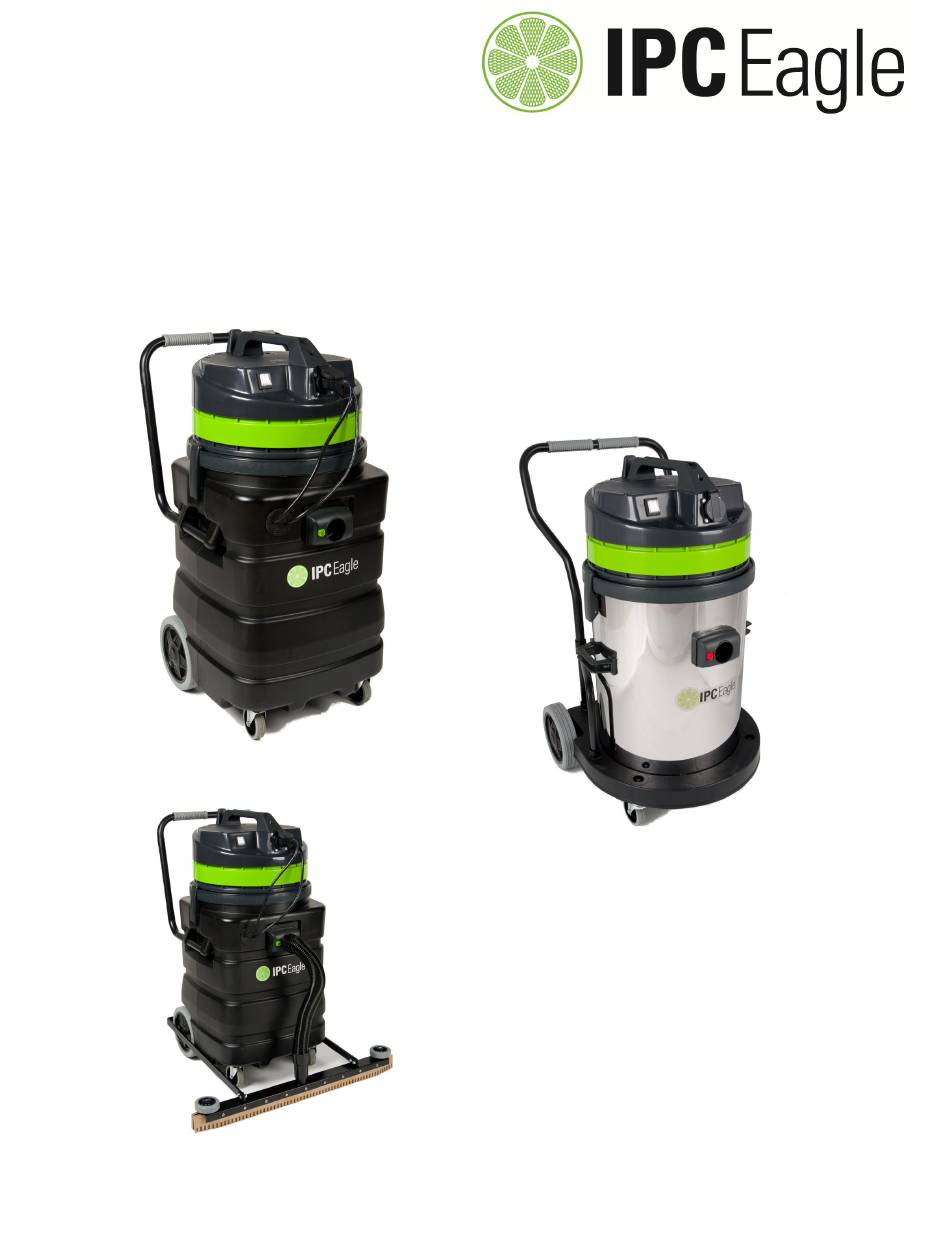

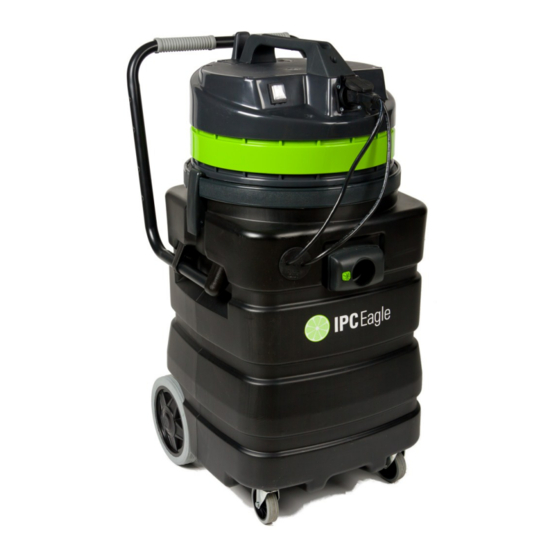

- Page 1 Pump Out Vacuums Polyethylene & Steel Operations and Parts Manual 110 volt receptacle on single motor only Models: 415P-AD 429P-AD 415DS...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. This machine is for commercial use. WARNING DANGER: Failure to read and observe all DANGER statements could result in severe bodily injury or death.
- Page 3 Warning: Operating a machine without observing all labels, decals, etc., could result in injury or damage. Read all machine labels before attempting to operate the machine. Make sure all of the labels are attached or fastened to the machine. Get replacement labels and decals from the manufacturer’s distributor.
- Page 4 120 Volt Machine Instructions For Connection To The Power Supply And The Electrical Ground This machine must be connected to the electrical ground to protect the operator from electrical shock. The machine has an approved power cord with three conductors and a plug with three terminals.
-
Page 5: Important Instructions
IMPORTANT INSTRUCTIONS Before use, the equipment must be correctly assembled with all of its components Check that the electrical outlet is correct for use with the plug on the machine Before connecting, check that the specified motor voltage corresponds to the main ... -
Page 6: Periodic Maintenance
Periodic Maintenance (Every six to twelve months) 1. Check filter for wear, replace dirt saturated filters that do not respond to normal cleaning. 2. Inspect gasket seals and replace those which have begun to leak. 3. Examine carbon motor brushes and commutator. S8053200 Servicing The Filter Note: This machine does not come standard with filters, they can be added as necessary... - Page 7 Servicing The Vac Motor Carbon Brush Replacement (Replacement Carbon Brushes: Part# S8053200) 1. Disconnect power cord from power source. 2. To access the vac motor, remove the screws that attach the main cover to the head assembly and set the cover to one side. Remove the screws that attach the inner cover to the head assembly and set aside.
- Page 8 415 Vacuum Motor Assembly Part # Description Qty. S81122 Power Cord 16x3 S80138 Strain Relief S80139 Clamp, Cord S81006 Screw, 5x20 S82931AUG6 Cord Hook S81054 Screw 5x30 S82930G6 Handle S81026 Screw 5x25 S81006 Screw 5x20 S81005 Screw 5x14 S83436 Terminal Block S81054 Screw 5x30 S82932AUG6...
- Page 9 429 Vacuum Motor Assembly Part # Description Qty. T82102005 Power Cord 14x3 S80138 Strain Relief S80139 Clamp, Cord S81006 Screw, 5x20 S82931AUG6 Cord Hook S81054 Screw 5x30 S82930G6 Handle S81026 Screw 5x25 S81006 Screw 5x20 S81005 Screw 5x14 S83436 Terminal Block S81054 Screw 5x30 S82963AUG6...
- Page 10 Tank and Cart Assembly 415P-AD, 429P-AD Part# Description Qty. Part# Description Qty. S82558-1 V Handle S82556 Support, Axle S82623NE Tank, Poly 24g Black S80904 Wheel S81026 Screw 5x30 S82557 Retainer, Wheel S82584G6 Retainer, Tank S82607 Spacer, wheel S82846 Gasket S81006...
- Page 11 Tank Assembly 415DS Part# Description Qty. S82993 Handle S81847 Clamp, Tank S81302 Rivet 5x19 S83629 Screw 5x25 S83883 Washer S81559 Tank S81026 Screw 5x30 S82586 Adapter, Tank S82846 Gasket S82593 Deflector S82583 Inlet Cover S82594 Button S82608 Spring...
- Page 12 Cart Assembly 415DS Part# Description Qty. S82993 Handle S80917 Support, Handle S80913 T-Tube S81301 Rivet 5x11 S80902 Block S80914 Hand Wheel 8x60 S81402 Spring S81403 Plate, Threaded S81301 Rivet 5x11 S80901 Base, Cart S80915 Screw 12x140 S81028 Masher M12 S80904 Wheel S81401 Bushing...
-
Page 13: Pump Assembly
Pump Assembly Part# Description Qty. DP92372 Pump DP99509 Check Valve DP99569 Hose Barb DP99182 Hose Clamp DP99190 Hose DP99566 Barb, Elbow 11/4” DP99565 Bulkhead Fitting 1” DP99567 Cam Lock, Male 1” DP99568 Cam Lock, Female 1” DP20310 1” MPT x GHT Fitting DPGROM11-2-10 Cord Grommet (Not Pictured) - Page 14 Tools Item Part# Description S72672 Complete Tool Kit S70003 Crevice Tool S76295 Round Brush S70008 Hose S76387 Wand, Straight S76389 Wand, Curved S76384 16” Floor Brush S76385 16” Floor Squeegee S82333 Replacement Squeegee Blades S76388 Adapter...
-
Page 15: Recommended Spare Parts
Filters Part# Description Where Used S82845 Filter Bag, Standard Polyester 415/429/430 models S82852* Cartridge Filter, Paper 415/429/430 models S76061* Cartridge Filter, Polyester 415/429/430 models S82995* Cartridge Filter, HEPA Equivalent 415/429/430 models S82855 Cartridge Filter Retainer all models T80093 Paper Filter Bags 3/pkg. 415/429/430 models *also requires S82855 Retainer Recommended Spare Parts... - Page 16 S70042 22” Front-Mounted Squeegee fits all 415/429/430 models Part# Description Qty. S82164 Handwheel 8x45 S82187 Small Block, Fixed S82163 Handwheel 6x25 S83115 Plate, Adjustment S82189 Driver Pivot S81033 Nut M8 S81732 Adjustment Knob S86137 Spring S82245 Squeegee, Rear S86138 Wheel S81034 Washer M8 S82177...
- Page 17 T80020 30” Front-Mounted Squeegee fits 415/429/430 models with Polyethylene Tanks Part# Description Qty. BD735602 Blade, Slotted BD735601 Blade, Solid BD7015509 Support, Blade BD735609 Nut, Nylock 1/4-20 BD715508 Housing Assy. BD735609 Nut, Nylock 1/4-20 BD735607 Wheel, Guide BD735608 Bolt, 1/4-20 x 1.75” BD705201 Lifting Arm Assy.
-
Page 18: Warranty Policy
Warranty Policy Limited Warranty IPC Eagle warrants new cleaning equipment against defects in material and workmanship under normal use and service to the original purchaser as detailed below 3 years Subject to the conditions stated below, IPC Eagle warrants all Polyethylene Tanks to be free from defects in materials and workmanship for a 3-year period.
