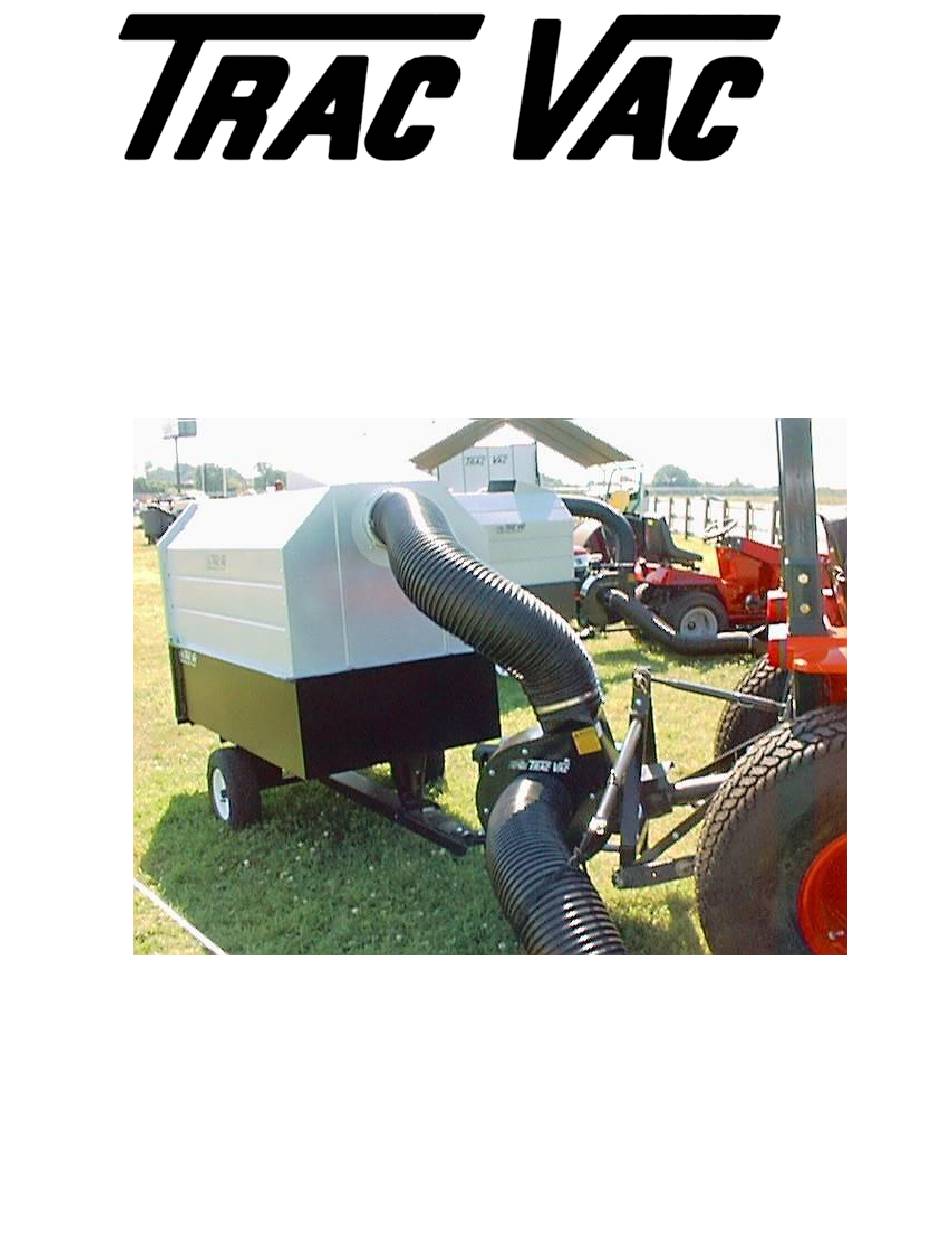

- Page 1 Model 854-BX Operating and Assembly Manual Midwest Equipment Mfg. 5225 Serum Plant Road Thorntown, IN 46071 3/12/2020...
-
Page 2: Safety Rules
SAFETY RULES Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. This symbol means Attention!!!!! It is used to point out safety precautions. ▪... -
Page 3: General Instructions
General Instructions Your Model 854-BX Trac-Vac is designed to mount directly to the 3 point attachment on your lawn and garden tractor. A lift kit must be installed before mounting a vacuum attachment on the 3-point draw arms. - Page 4 M o d e l 2 8 0 C a r t C o v e r A s s e m b ly I n s tr u c tio n s N O T E : D o n o t tig h te n a n y b o lts u n til th e e n d o f c o n s tr u c tio n . P la c e s id e p a n e ls o n e n d w ith d e c a l P la c e s c r e e n w ith o u t la tc h , ( f r o n t P la c e f r o n t o n s id e s w ith f la n g e s o n...
- Page 5 Model 854BX Trac-Vac Parts List Part No. Description 85010 Frame, 854-RH 85011 Frame, 854-LH 18030 Turbine Housing, RH 18031 Turbine Housing, LH 86040 Turbine 8” Inlet 18050 85001 Gearbox PTO Shaft, 22” 85023 PTO Shaft, 18” 85002 Pulley, MA 55 x 3/4” 85016 Bearing, ¾”...
- Page 6 M o d e l 8 5 4 T r a c - V a c P a r ts L is t T O T R A C T O R D R A W B A R K I T P A R T N O .
- Page 7 H I T C H P /N : 4 6 6 5 1 B X C A T . 1 3 - P O I N T H I T C H R e le a s e lif t lin k s f r o m u p p e r d r a w a r m s . A tta c h s h o r t lin k s ( 4 6 6 5 1 E ) to e x is tin g lif t lin k s w ith 5 /8 "...
- Page 8 On Model 854, adjust inboard belt first by moving jack shaft bearing to the rear, then adjust outboard belt by moving gearbox forward. TRAC VAC WARRANTY POLICY Midwest Equipment Mfg. will repair or replace, free of charge, any part or parts that are defective in material or workmanship or both for a period of one year residential use, and 90 days for commercial and rental use.
