BATTERY REPLACEMENT
When the battery low icon is on, the battery should be replaced as soon as practical. The cable testing results will become unreliable when the battery
reaches about 4.5 volts. To replace battery:
1) Remove the screw from the battery door on the back of the unit with a #1 Philips-head screwdriver.
2) Pull battery out of cavity and remove battery snap.
3) Connect a new Alkaline 9 volt battery to battery snaps. Place battery back into body with battery snaps placed toward front end of compartment.
4) Replace battery door and screw being careful to not over tighten the screw.
SPECIFICATIONS
Physical Dimensions
Size: 13.2 x 7.3 x 4.1 cm (5.2 x 2.9 x 1.6 inches)
Weight: 242 grams (8.5 oz.) with battery and remote
Environmental
O
O
Operating temperature: 0 to 50 C (32 to 122 F)
O
O
Storage temperature: -10 to 60 C (14 to 140 F)
Humidity: 10% to 90%, non-condensing
Battery Life
(9V Alkaline battery, typical) times are for the full capacity of the battery used continuously in one of the following modes -
Standby: 2.5 years
Cable Testing: 150 hours
Tone Generator: 250 hours
Cable Types:
Shielded or unshielded, CAT-5E, CAT-5, CAT-4, CAT-3 and Coax
Minimum cable length for testing of split pairs:
1 meter (3 feet)
Coax Cable:
100 ohms maximum DC resistance, center conductor plus shield
ACCESSORIES
Tp310- Set of 10 numbered F-conn test terminators
TP63- Adapter, F-conn jack to BNC jack. Use to convert Coax test terminators to BNC jack.
TP62- Adapter, F-conn plug to BNC jack. Use to convert main unit F-conn jack to BNC jack
TP608- Set of 7 numbered remotes for Resi-Tester™ or LanRoverPRO™
TP20- 7.5" cable assembly with no-fault 6 position plugs, reverse-pinned. Use to map and test 2, 4 or 6 pin telephone wiring. Can be used with
RJ45 (8-position) jacks and will not damage pins or connector.
TP60- Set of 2 adapters RJ45 (8-pin) plug to RJ11 (6-pin) jack. Use with TP608 to map and test 6-pin telephone wiring.
KP410- Security & Alarm System adapter kit includes (9) RJ45 to alligator clip lead sets and an LB66 in a zippered pouch. Use with TP608 to map
and test individual twisted pair runs.
WARRANTY
Test-Um Inc. guarantees to the end-user purchaser that its products will be free of all defects in material and/or workmanship. This warranty extends
for a period of 12 months for the test instrument and 3 months for the cables from the date of manufacture or proof-of-purchase. The obligations of
Test-Um Inc. under this warranty is limited to the repair or replacement (at our option) during the warranty period, of any part that proves to be
defective in material or workmanship under normal use, installation and service, provided the product is returned to Test Um Inc. freight prepaid. A
copy of the purchase receipt must accompany products returned to us. In the absence of such a receipt, the warranty period will cease 12 months from
the date of manufacture. This warranty does not extend to products that have been subjected to neglect, accidental or improper use, or to units which
have been altered, repaired, or inspected by other than Test-Um authorized personnel. In no event will Test-Um Inc. be liable for any incidental or
consequential damages.
The Resi-Tester™ is designed and manufactured to provide trouble free service. However, if for some reason your tester
should require repair, please follow these instructions.
WARRANTY SERVICE
All units returned for warranty repair will be repaired or replaced free of charge, at the discretion of Test-Um Inc., and must be shipped freight
prepaid. In the event that a sales receipt or other dated proof-of-purchase documentation is not available, a period of not more than 12 months from
date of manufacture shall apply.
NON-WARRANTY SERVICE
Damaged units returned for non-warranty repairs will be inspected and an estimated repair cost forwarded by phone or email. Once an approval of
these costs is received, the unit will be repaired. Charges for service and return freight will be invoiced on a C.O.D. basis or by other prior
arrangement.
Shipping
1. Before returning any product to Test-Um Inc., you must first request a Return Goods Authorization Number by contacting our Customer Services
Dept. at 805-383-1500. No shipments will be accepted without this number, which must be clearly marked on the shipping label.
2. Ship the equipment with a copy of the sales receipt, if available.
3. Attach a description of the operational problem.
4. Include a contact name, phone number, and e-mail address if possible.
5. Pack securely to prevent damage during shipping.
6. Ship prepaid to: Test-Um Inc, 808 Calle Plano, Camarillo, CA 93012
Test-Um Inc.
The Intelligent Test Solutions Company
www.test-um.com
805-383-1500 /
805-383-1595 /
FAX
Test Equipment Depot
808 Calle Plano / Camarillo, CA. 93012
testequipmentdepot.com
800-517-8431
781-665-0780 FAX
Test-Um Inc.
Resi-Tester
LCD
DISPLAY
TEST
TERMINATOR
RJ12
RJ45
(Shielded)
Remote Unit - Front View
WARNING!
Do not attach to AC power. The Resi-Tester™ may be damaged and cause a safety hazard for the user.
CAUTION!
Improperly crimped, damaged or un-crimped plugs can damage the jacks on the Resi-Tester™. Inspect plugs for proper
termination and crimping before inserting into the tester. Contacts should always be recessed into the plastic grooves of the
plug. Do not use 6-position plugs with the 8-position (network) jack.
FEATURES
Tests network (8-wire), telephone (6-wire) and coax cabling systems
Supports 8 network remotes and 10 coax remotes (optional, see accessory list)
Large seven-segment LCD with icons for clear results
Cable test results displayed in wire map format
Tests for shorts, opens, miswires, reversals and
Displays PASS icon for correctly wired T568A/B, both one-to-one & uplink (cross-over) cables
Displays PASS icon for correctly wired 6-pin telephone cables both straight-through & reversed
Tone generator mode for use with tone tracers
Auto-off in any mode and low power consumption for long battery life
Modular Plug Remote and Coax Test Terminator store in the bottom end of the case
DESCRIPTION

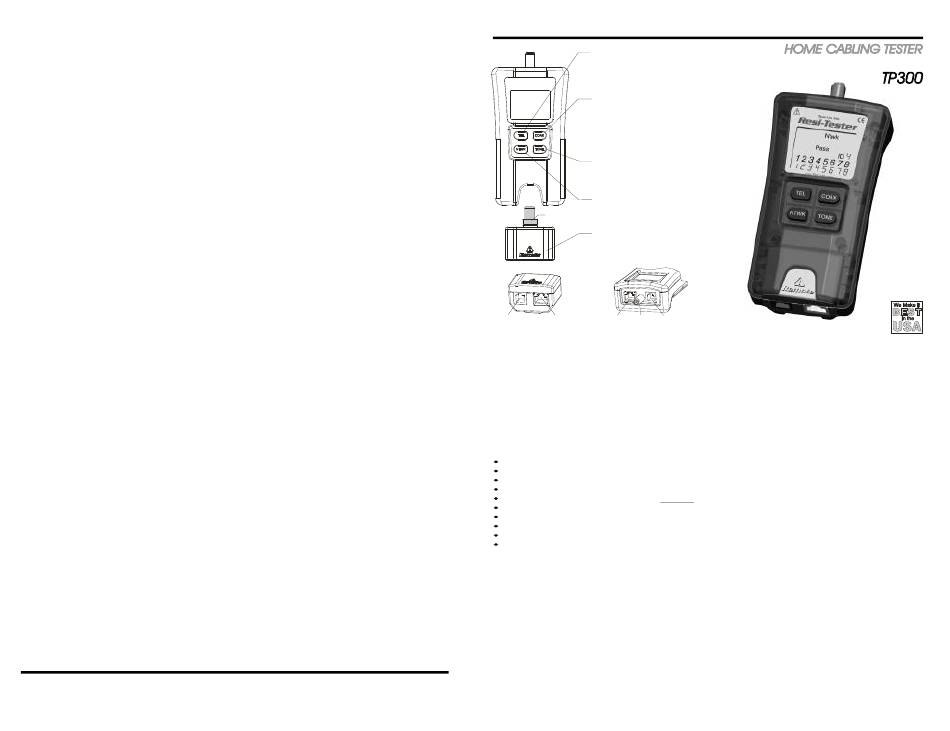

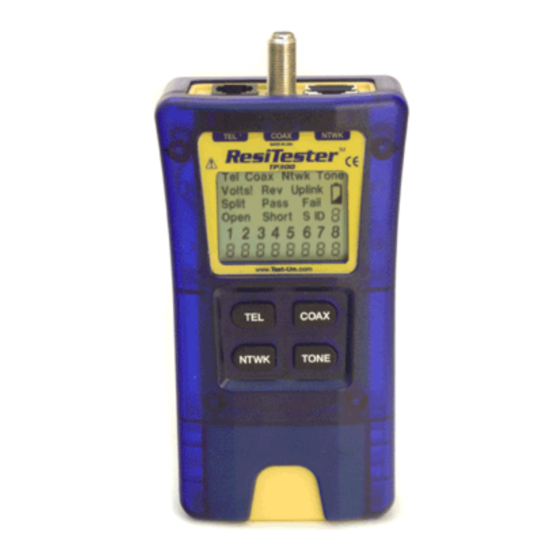

The Resi-Tester™ is designed to test all common low voltage cabling systems found in todays automated homes; telephone,
network or video. The Resi-Tester™ has a large, bright LCD display and four momentary buttons used to directly access each
function. The remote attaches to the main unit for storage and patch cable testing.
The Resi-Tester™ is turned on by pressing any one of the four momentary function buttons and begins testing in the mode for
the button pressed telephone (TEL), coax (COAX), network (NTWK) or tone generator (TONE). The corresponding
connectors at the top end of the tester are labeled the same as their mode switches. An LCD icon for the currently selected
mode will be on or flashing on the screen. To turn the Resi-Tester™ off when in one of the cable test modes, press the button
for a different cable test mode, but not the TONE button. Pressing the TONE button will start the tone generator in the Tel Tone,
the Coax Tone or Ntwk Tone mode, depending on the current cable test mode. The tone mode will be discussed in detail later
on in this section.
1
4
TU9856 (Rev A - 5/03)
Resi-Tester
TEL - (Telephone cable test)
Press to power on and begin
testing. Uses 3-pair USOC
standard and 6-position RJ jack.
Press for 2 seconds to turn off
split pair test.
COAX - (Coax cable test) Press
to power on and begin testing.
Tests for shorts, opens and ID's
up to 10 unique remotes on the
F-conn jack. Use with test
terminator stored in back of RJ
remote at bottom of tester.
TONE - (Tone generator) Press
a cable test button for the
connector being used followed
by the TONE button. Displays
pins being driven in terms of that
connector.
NTWRK - (Network cable test)
Press to power on and begin
testing. Uses T568A/B standard
and 8-position RJ jack.
REMOTE UNIT - Squeeze remote
at finger grip openings in main
unit to remove. Use same connector
on remote as on main unit.
RJ45
COAX -
RJ12
(Shielded)
F-Conn.
Main Unit - Front View
Resi-Tester™ Operating Instructions
Part No. TP300
split pairs
TM
OPERATING INSTRUCTIONS
