Summary of Contents for Brandt DFH13114W

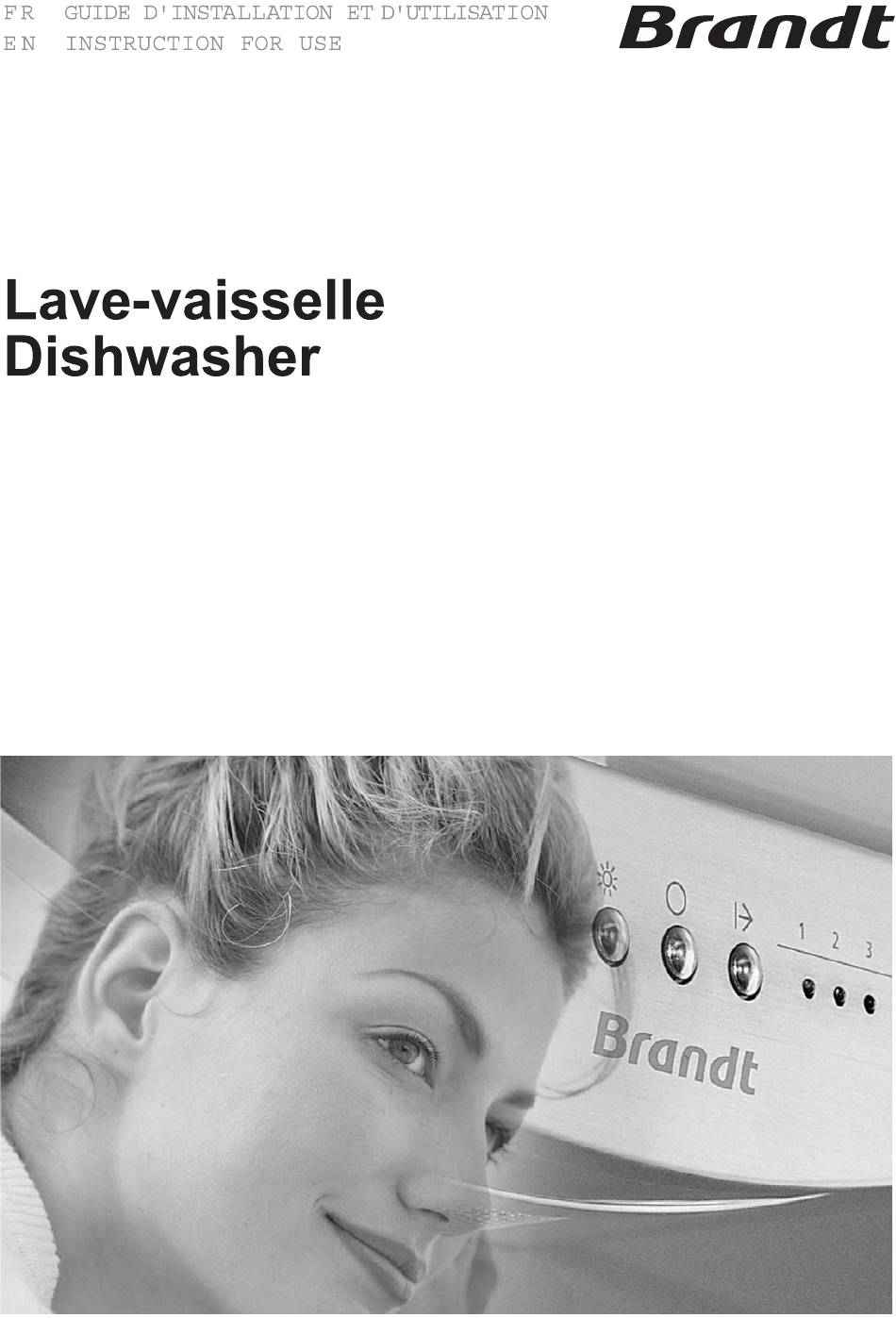

- Page 1 DFH13114W DFH13114B DFH13114X...
-
Page 2: Table Of Contents
1) Safety Information..........1 Read this Manual 2) Disposal............2 3) Operating Instructions........3 Dear Customer, Control Panel...........3 Please carefully read this manual before using the Dishwasher Features........3 dishwasher, it will help you to use and maintain the dishwasher properly. Keep it to refer to it at a later date. 4) Prior using for the first time.......4 Pass it on to any subsequent owner of the appliance. -
Page 3: Safety Information
1.IMPORTANT SAFETY INFORMATION When using your dishwasher, WARNING! follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments;... - Page 4 EARTHING INSTRUCTIONS This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.
- Page 5 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. Check that the detergent powder is empty after completion of the wash cycle. Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
-
Page 6: Disposal
Disposal Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material POM polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g. - Page 7 2.Quick operation guide For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the On/Off button to switch on the appliance, Open the door. Compartment A: With each wash cycle. Compartment B: Fill the detergent dispenser For programmes with pre-wash only.
-
Page 8: Operating Instructions
3.Operation Instruction IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel 1.On/Off Button: To turn on/off the power supply. 8.Display screen: to show the reminding time 2.Delay Button : Press the button to decrease the and the state(running state, delay time etc ) delay time. -
Page 9: Prior Using For The First Time
Prior using for the first time Before using your dishwasher for the first time: Set the water softener B. Add 1.5Kg dishwasher salt and then full fill the salt container with water Fill the rinse aid dispenser Fill in detergent A. -
Page 10: B、Loading The Salt Into The Softener
B. Loading the Salt Into the Softener Always use the salt intended for use with dishwasher. The salt container is located beneath the lower basket and should be filled as explained in the following: Attention! Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. -
Page 11: D、Function Of Detergent
When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour " " of the optical level indicator C located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. - Page 12 Detergents There are 3 sorts of detergents 1.With phosphate and with chlorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when °...
- Page 13 Fill in Detergent Fill the detergent dispenser with detergent. The marking indicates the dosing levels , as illustrated on the right: The place of main wash cycle detergent placed. The place of pre-wash cycle detergent placed. Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.
-
Page 14: Loading The Dishwasher Basket
5.Loading the Dishwasher Baskets Recommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended. -
Page 15: The Method Loading Normal Dishware
The Method Loading Normal Dishware Loading the Lower Basket Loading the Upper Basket The upper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clean items are to be placed into the lower tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, serving dishes and... -
Page 16: Starting A Washing Programme
6.Starting a washing program Wash Cycle Table Means: need to fill rinse into the Rinse-Aid Dispenser. NOTE: Detergent Cycle Selection Description Running Energy Rinse Water Program of Cycle pre/main Information time(min) (Kwh) Pre-wash(50 ℃) Wash (65 ℃) For heaviest soiled crockery, Intensive 5/27.5g Rinse... -
Page 17: Change The Programme
NOTE: When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start. Change the Program... Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. -
Page 18: Maintenance And Cleaning
7.Maintenance and Cleaning Filtering System The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). -
Page 19: Caring For The Dishwasher
Remarks: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: The entire filter assembly should be cleaned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush. -
Page 20: Installation Instruction
How to Keep Your Dishwasher in Shape After Every Wash When not in Use for a LongTime It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside. -
Page 21: Water Connection
Water Connection Cold Water Connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. -
Page 22: Start Of Dishwasher
How to Drain Excess Water From Hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. -
Page 23: Troubleshooting Tips
9.Troubleshooting Tips Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible CausesWhat To Do Dishwasher doesn t Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher start... -
Page 24: Error Codes
Problem Possible Causes What To Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. -
Page 25: Technical Information
If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, WARNING! the water should be removed before restarting the dishwasher. Technical Information Height : 845mm Width :... - Page 26 Product fiche Sheet of household dishwasher according to EU Directives 1016/2010 & 1059/2010: Manufacturer BRANDT Type / Description DFH13114W.DFH13114B.DFH13114X Standard place settings Energy efficiency class Annual energy consumption 262 kWh Energy consumption of the standard cleaning cycle 0.92 kWh Power consumption of off-mode 0.45 W...
