- Page 1 Order Number : GETEC-C1-09-159 FCC Class B Certification Page 1 / 1 Test Report Number : GETEC-E3-09-084 APPENDIX G : USER’S MANUAL EUT Type: LCD Monitor FCC ID.: BEJM4715CG...

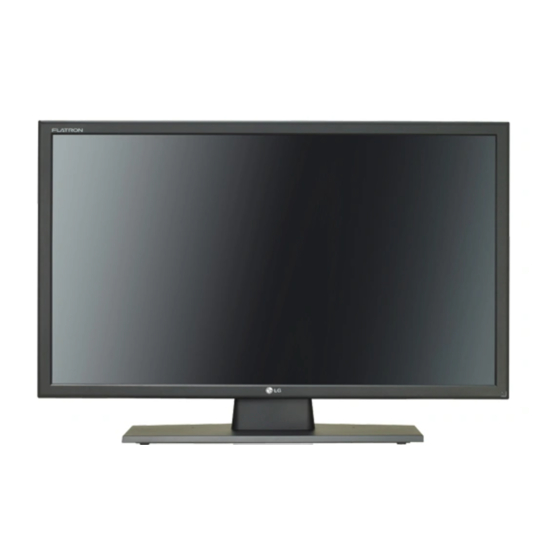

- Page 2 User’s Guide M4715C ake sure to read the Safety Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. ee the label attached on the product and give the information to your dealer when you ask for service.
-
Page 3: Connecting The Stand
Connecting the stand - Only on some models. Take the parts for the stand out of the box and assemble them as shown in the picture. First, check if the following parts are all present. Parts Screws (4) Stand (1) cable management (1) Place a soft cloth on the table and put the product with the screen facing downward. -
Page 4: Connecting The Speakers
Connecting the Speakers - Only on some models. Mount the product onto the speaker by using a screw as shown in the following connect the speaker cable. After installing your speakers, use holders and cable ties to organize the speaker cables. Cable holder Remove the paper. -
Page 5: To Install Portrait
To install Portrait - Only on some models. "When installing Portrait, rotate it clockwise based on its front."... -
Page 6: Using The Remote Control
Using the Remote Control Name of the Remote Control Buttons • Power On/Off Button • Input Select Button • AV Button (See next page) • ARC button • Sleep Button When watching AV, RGB PC,HDMI/DVI, Aspect Ratio Correction. Toggles Component through aspect ratio options. -
Page 7: Inserting Batteries Into Remote Control
Using the Remote Control • AV Button • Input Select Button If you press the button once, Toggles through video the following Input Signal Component Window will appear. Select RGB PC HDMI/DVI the signal type you want using the button. Input Component RGB PC... -
Page 8: Name And Function Of The Parts
Name and Function of the Parts * The product image in the user’s guide could be different from the actual image. Rear View AV IN/OUT AV IN/OUT Power Connector : Connect the power cord RS-232C Serial Ports RGB PC, HDMI/DVI Ports -HDMI Supports High Definition input and HDCP (High-bandwidth Digital Content Protection). -
Page 9: Connecting To External Devices
Connecting to External Devices When Connecting to your PC First of all, see if the computer, product and the peripherals are turned off. Then, connect the signal input cable. When connecting with the D-Sub signal input cable. When connecting with the HDMI to DVI signal input cable (not included). * When HDMI PC is used, a compatibliy problem might occur. - Page 10 Connecting to External Devices Turn on power by pressing the power button on the product. SOURCE AUTO/SET Power button Turn on the PC. Select an input signal. Press the INPUT button on the remote control to select the input signal. INPUT Or, press the SOURC button on the back of the product.
-
Page 11: When Using The Lan
Connecting to External Devices When using the Lan Connect the Lan cable as shown in the below figure . When connecting with a PC. When connecting with a Network. Product Network Product Connect the LAN cable and install the eZ-Net Manager program on the CD-ROM. For more information about the program, please refer to eZ-Net Guide in the enclosed CD-ROM. -
Page 12: Daisy Chain Monitors
Connecting to External Devices Daisy Chain Monitors Use this function when displaying ANALOG RGB inputs of a PC to the other product. To use different products connected to each other • Connect one end of the signal input cable(15-pin D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN connector of other products. - Page 13 VESA FDMI wall Mounting This product supports a VESA FDMI compliant mounting interface. These mounts are purchased separately and not available from LG. Refer to the instructions included with wall mount for more info. The Set is equipped with a kensington Security System connector on the back panel.
-
Page 14: Video Input
Connecting to External Devices Video Input Connect the video cable as shown in the below figure and then connect the power cord (See page 7). When connecting with a S-Video cable. When connecting with a BNC cable. Connect to the S-Video input terminal to Connect the input terminal with a •... - Page 15 Connecting to External Devices Component Input (480p/576p/720p/1080p/1080i/480i/576i) Connect the video/audio cable as shown in the below figure and then, connect the power cord (See page 7). Connect the input terminal with a proper color match. • Product AUDIO BNC Cable Audio Cable (not included) (not included)
- Page 16 Connecting to External Devices HDMI Input (480p/576p/720p/1080i/1080p) -HDMI Supports High Definition input and HDCP (High-bandwidth Digital Content Protection). Some devices require HDCP in order to display HD signals. Connect the video/audio cable as shown in the below figure and then connect the power cord (See page 7).
-
Page 17: Watching Av Outputs
Connecting to External Devices Watching AV Outputs - When using AV input, you can connect the AV Out to other monitors. Video/TV BNC Cable Audio Cable (not included) (not included) AV IN/OUT Product AUDIO Audio Cable BNC Cable (not included) (not included) Video/TV Note... -
Page 18: Cable Management
Cable management - Only on some models. Arrange the cables in the center as shown in the following picture. Fit the cable guide to the back to help manage the cables. cable management Removing the cable guide. Hold the Cable management with both hands and pull it downward. -
Page 19: User Menus
User Menus Screen Adjustment options SOURCE AUTO/SET • Press this button to turn on the power. Press this button again to Power Button turn it off. • This Indicator lights up blue when the display operates normally(on Power Indicator mode). If the display is in sleep (Energy Saving) mode, this indicator color changes to amber. -
Page 20: Troubleshooting
Troubleshooting No image is displayed G Is the product power cord connected? • See if the power cord is properly connected to the outlet. G Is the power indicator light on? • See if the power switch is turned on. •... -
Page 21: The Screen Image Looks Abnormal
Troubleshooting The screen image looks abnormal. G Is the screen position wrong? • D-Sub analog signal – Press the “AUTO” button in the remote control to automatically select the optimal screen status that fits into the current mode. If adjustment is not satisfactory, use the Position OSD menu. -
Page 22: The Audio Function Does Not Work
Troubleshooting The audio function does not work. G No sound? • See if the audio cable is connected properly. • Adjust the volume. • See if the sound is set properly. G Sound is too dull. • Select the appropriate equalize sound. G Sound is too low. -
Page 23: Specifications
Specifications The product specifications can change without prior notice for product improvement. LCD Panel 46.96 inches (119.28 cm) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel Visible diagonal size: 119.28 cm 0.5415 mm x 0.5415 mm (Pixel Pitch) Rated Voltage AC 100-240V~ 50/60Hz 3.0A Power Power Consumption On Mode... - Page 24 Specifications The product specifications can change without prior notice for product improvement. Video Signal Max. Resolution RGB : 1920 X 1080 @60Hz HDMI/DVI : 1920 X 1080 @60Hz – It may not be supported depending on the OS or video card type. Recommended Resolution RGB : WSXGA 1360 X 768@60Hz HDMI/DVI : WSXGA 1360 X 768 @60Hz –...
-
Page 25: Pc Mode - Preset Mode
Specifications PC Mode – Preset Mode Vertical Vertical Horizontal Horizontal Frequency Frequency Frequency Preset mode Frequency Preset mode (Hz) (Hz) (kHz) (kHz) 640 x 350 31.469 70.8 1280 x 768 47.7 720 x 400 31.468 70.8 1360 x 768 47.72 59.799 640 x 480 31.469... -
Page 26: Controlling The Multiple Product
Controlling the Multiple Product RS-232C Use this method to connect several products to a single PC. You can control several products at a time by connecting them to a single PC. Connecting the cable Connect the RS-232C cable as shown in the picture. * The RS-232C protocol is used for communication between the PC and product. - Page 27 Controlling the Multiple Product RS-232C Command Reference List COMMAND1 COMMAND2 DATA1 DATA2 DATA3 01. Power 00H - 01H 02. Input Select 02H - 09H 03. Aspect Ratio 01H - 09H 04. Screen Mute 00H - 01H 05. Volume Mute 00H - 01H 06.
- Page 28 Controlling the Multiple Product RS-232C COMMAND1 COMMAND2 DATA1 DATA2 DATA3 46. Power Saving 00H - 03H 47. Power Indicator 00H - 01H 48. H Position 00H - 64H 49. V Position 00H - 64H 50. H Size 00H - 64H 51.
- Page 29 Controlling the Multiple Product RS-232C Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] * [Command 1]: First command. (k) * [Command 2]: Second command.(a ~ u) * [Set ID]: Set up the Set ID number of product. range : 01H~63H. by setting '0', server can control all products. * In case of operating with more than 2 sets using set ID as '0' at the same time, it should not be checked the ack message.
- Page 30 Controlling the Multiple Product RS-232C Transmission / Receiving Protocol 03. Aspect Ratio(Command : c) (Main picture format) To adjust the screen format. You can also adjust the screen format using the ARC (Aspect Ratio Control) button on remote control or in the Screen menu.
- Page 31 Controlling the Multiple Product RS-232C Transmission / Receiving Protocol 14 Balance(Command : t) To adjust the sound balance. Transmission [k][t][ ][Set ID][ ][Data][Cr] Data Min : 00H ~ Max : 64H (Hexadecimal code) Refer to ‘Real data mapping’ page A8. •...
- Page 32 Controlling the Multiple Product RS-232C Transmission / Receiving Protocol 16. Abnormal state (Command : z) Abnormal State : Used to Read the power off status when Stand-by mode. Transmission [k][z][ ][Set ID][ ][Data][Cr] Data FF : Read 0 : Normal (Power on and signal exist) 1 : No signal (Power on) 2 : Turn the monitor off by remote control 3 : Turn the monitor off by sleep time function...
- Page 33 Controlling the Multiple Product RS-232C Transmission / Receiving Protocol 52. Scheduling Input select (Command : f u) (Main Picture Input) To select input source for TV depending on day. Transmission [f][u][][Set ID][][Data1][][Data2][Cr] Data 1 Structure Min: 0~Max:7(0:Monday, 1: Tuesday, 2: Wednesday, 3: Thursday, 4: Friday 5: Saturday, 6: Sunday, 7: Everyday) Data 2 Structure Data(Hex)
- Page 34 Controlling the Multiple Product RS-232C Transmission / Receiving Protocol 54. S/W Version (Command : f z) Check the software version. Transmission [f][z][][Set ID][][Data][Cr] Data FFH : Read Acknowledgement [z][][Set ID][][OK/NG][Data][x] 55. Input Select (Command : x b) To select input source for the Set. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data 20H : AV...
- Page 35 IR Codes RS-232C How to connect Connect your wired remote control to Remote Control port on the Product. Remote Control IR Code Output waveform single pulse, modulated with 37.917KHz signal at 455KHz Carrier frequency FCAR = 1/Tc = fosc/12 Duty ratio = T1/Tc = 1/3 Configuration of frame •...
- Page 36 IR Codes RS-232C Code(Hex) Function Note R/C Button R/C Button VOL( ) R/C Button VOL( ) R/C Button POWER ON/OFF R/C Button (Power On/Off) POWER ON Discrete IR Code(Only Power On) POWER OFF Discrete IR Code(Only Power Off) MUTE R/C Button R/C Button INPUT R/C Button...
-
Page 37: Fcc Compliance Statement
Regulatory Information cont. respecte toutes les exigences du Règlement sur le FCC Compliance Statement matériel brouilleur du Canada. This equipment has been tested and found to comply NOTICE within the limits of a Class B digital device pursuant to Part The regulations are applied only to the products with the 15 of the FCC Rules. - Page 38 Regulatory Information cont. Why do we have environmentally labelled computers? visual ergonomics. In many countries, environmental labelling has become an established method for encouraging the adaptation of Below you will find a brief summary of the ecological goods and services to the environment. With the growing requirements met by this product.
- Page 39 Congratulations! Information for Environmental Preservation The display you have just purchased carries the TCO’03 LGE. announced the 'LG Declaration for a Cleaner Displays label. Environment' in 1994, and this ideal has served as a This means that your display is designed,manufactured guiding managerial principle ever since.
- Page 40 à la fois les aspects Informationen zur Erhaltung der Umwelt économiques et sociaux de nos activités, tout en Im Jahr 1994 verkündete LGE die 'LG Declaration for a respectant l’environnement. Cleaner Environment' (LG Erklärung für eine sauberere Umwelt).
- Page 41 La LGE. ha annunciato nel 1994 la cosiddetta 'LG Declaration for a Cleaner Environment' (Dichiarazione di Promocionamos actividades orientadas a la conservación LG a favore di un ambiente più pulito), un ideale che da del medio ambiente y desarrollamos nuestros productos allora funge da principio ispiratore della gestione específicamente para que se ajusten a la filosofía que...
- Page 42 'ƒÂÍ·‡ˆË˛ LG ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚', het milieu ÍÓÚÓ‡ˇ Ò ÚÂı ÔÓ ÒÎÛÊËÚ ÓÒÌÓ‚Ì˚Ï ÔË̈ËÔÓÏ LGE. publiceerde in 1994 de 'LG Declaration for a Cleaner ÛÔ‡‚ÎÂÌˡ. Õ‡ ÓÒÌÓ‚Â ˝ÚÓÈ ‰ÂÍ·‡ˆËË Ï˚ ÒÏÓ„ÎË Environment' (de LG-verklaring met betrekking tot een Ô‰ÔËÌˇÚ¸ ‰ÂÈÒڂˡ, Ó·ÂÒÔ˜˂‡˛˘ËÂ...
- Page 43 ÔËÂÏÎÂÏÓ„Ó ÏÂÚÓ‰‡. «‡ ·ÓΠÔÓ‰Ó·ÌÓÈ ËÌÙÓχˆËÂÈ ÔÓ Ì‡¯ÂÈ ÔÓ„‡ÏÏ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ó·‡˘‡ÈÚÂÒ¸ Í (EPA applied model only) ÏÂÒÚÌÓÏÛ ÔÓÒÚ‡‚˘ËÍÛ ËÎË Ô‰ÒÚ‡‚ËÚÂβ ÍÓÔÓ‡ˆËË LG. is a set of power-saving guidelines NERGY issued by the U.S. Environmental Protection Ã˚ ÓËÂÌÚËÛÂÏÒˇ ̇ Ó·ÂÒÔ˜ÂÌË ˝ÍÓÎӄ˘ÂÒÍÓÈ...
- Page 44 Regulatory Information cont. WEEE un bidone della spazzatura barrato da una croce (for Europe ) significa che il prodotto è coperto dalla direttiva europea 2002/96/EC. 2.Tutti i prodotti elettrici ed elettronici dovrebbero essere smaltiti separatamente rispetto alla raccolta differenziata municipale, mediante impianti di raccolta specifici designati dal governo o dalle autorità...
- Page 45 Regulatory Information cont. 4.Wilt u meer informatie over de verwijdering van eller de lokale myndigheder. uw oude toestel? Neem dan contact op met uw 3.Korrekt bortskaffelse af dit gamle apparat er med gemeente, de afvalophaaldienst of de winkel til at forhindre mulige skadevirkninger på miljøet waar u het product hebt gekocht.
- Page 46 Regulatory Information cont. Portuguese Hungarian Slovak Polish Czech Croatian...
- Page 47 Regulatory Information cont. Estonian Latvian Lithuanian...
