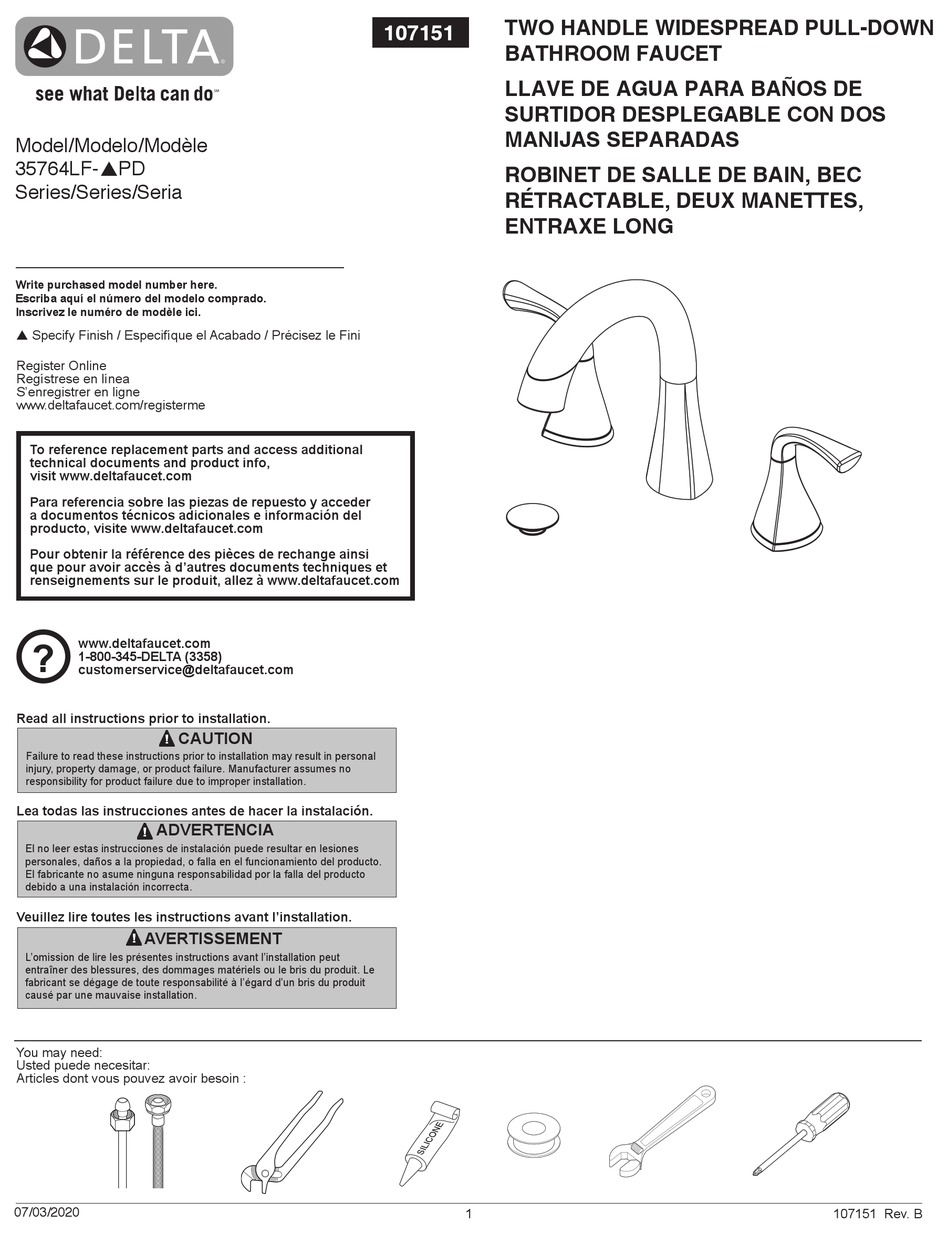

Model/Modelo/Modèle
35764LF-pPD
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
p Specify Finish / Especifíque el Acabado / Précisez le Fini
Register Online
Regístrese en línea
S'enregistrer en ligne
www.deltafaucet.com/registerme
To reference replacement parts and access additional
technical documents and product info,
visit www.deltafaucet.com
Para referencia sobre las piezas de repuesto y acceder
a documentos técnicos adicionales e información del
producto, visite www.deltafaucet.com
Pour obtenir la référence des pièces de rechange ainsi
que pour avoir accès à d'autres documents techniques et
renseignements sur le produit, allez à www.deltafaucet.com
?
www.deltafaucet.com
1-800-345-DELTA (3358)
customerservice@deltafaucet.com
Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut
entraîner des blessures, des dommages matériels ou le bris du produit. Le
fabricant se dégage de toute responsabilité à l'égard d'un bris du produit
causé par une mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :
07/03/2020
TWO HANDLE WIDESPREAD PULL-DOWN
107151
BATHROOM FAUCET
LLAVE DE AGUA PARA BAÑOS DE
SURTIDOR DESPLEGABLE CON DOS
MANIJAS SEPARADAS
ROBINET DE SALLE DE BAIN, BEC
RÉTRACTABLE, DEUX MANETTES,
ENTRAXE LONG
1
107151 Rev. B
Advertisement
Related Manuals for Delta Lampard 35764LF PD Series
Summary of Contents for Delta Lampard 35764LF PD Series
- Page 1 Pour obtenir la référence des pièces de rechange ainsi que pour avoir accès à d’autres documents techniques et renseignements sur le produit, allez à www.deltafaucet.com www.deltafaucet.com 1-800-345-DELTA (3358) customerservice@deltafaucet.com Read all instructions prior to installation. CAUTION Failure to read these instructions prior to installation may result in personal injury, property damage, or product failure.
-
Page 2: Instructions De Nettoyage
Cleaning and Care Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. Limpieza y Cuidado de su Llave Tenga cuidado al limpiar este producto. - Page 3 21" 533 mm Place spout (1) with gasket (2) through mounting hole in sink. Secure spout with bracket (3) and nut (4). Note: If sink is uneven, use silicone under the gasket. Push quick connects (1) firmly upward and snap onto tube fittings (2). Pull down moderately to ensure each connection has been made.
- Page 4 1/2" (13 mm) IPS CONNECT TO WATER SUPPLIES. Install Pop-Up Assembly (HOOK-UPS NOT PROVIDED). Apply silicone sealant to underside of flange Remove head (1) and nut, washer, Turn on hot and cold water supplies and flush water (1). Insert body (2) into sink. lines into a container for one minute.
- Page 5 2. Remove and clean Aerator (4), Maintenance or clean Seats and Springs (2) of SHUT OFF WATER SUPPLIES NOTE: Remove handles by hand turning any debris. handle base counterclockwise. *Install stems (1) correctly for proper handle rotation: If faucet leaks from spout: Replace Stem Unit Assembly (1) and Seats Note: and Springs (2)*.
- Page 6 Indianapolis, IN 46280 St. Thomas, Ontario, Canada N5P 4L1 Delta seller by a purchaser who owns but does not live in the residential dwelling in which the faucet is initially installed, such as in a rented or Attention: Customer Solutions Attention: Customer Service leased single unit or multi-unit detached home (duplex or townhome), or a condominium, apartment building or community living center.
