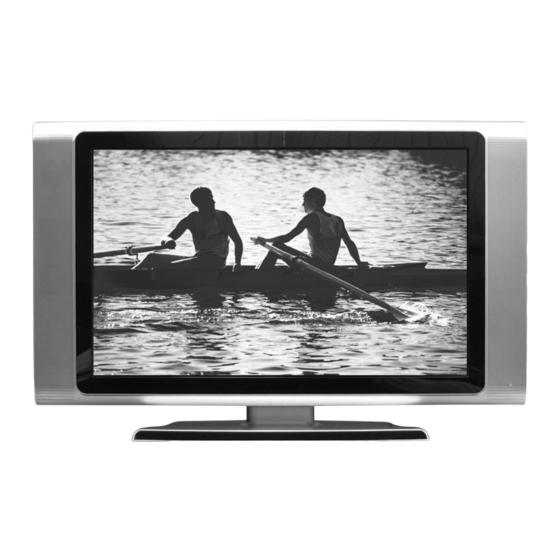

- Page 1 Test Report No.: GETEC-E3-04-032 FCC Class B Certification APPENDIX H : USER’S MANUAL EUT Type: 26” LCD TV/Monitor FCC ID : R8ILT-26HMF...
- Page 2 LT-26HMF Model: Owner’s Manual...
- Page 3 Warnings WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN. WARNING : To reduce the risk of electric shock do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 4: Warnings 3~4
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Important safeguards for you and your new product Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference. - Page 5 IMPORTANT SAFETY INSTRUCTIONS 14. Outdoor Antenna Grounding 19. Servicing If an outside antenna or cable system is Do not attempt to service this product yourself as connected to the product, be sure the antenna or opening or removing covers may expose you to cable system is grounded so as to provide some dangerous voltage or other hazards.
-
Page 6: Table Of Contents
Contents Before operating the set, please read this manual carefully. Warnings Contents Supplied Accessories Controls Controller of panel Remote controller Basic Operation Turning the TV On and Off Program selection Volume adjustment Q.View Sound mute function On screen Language selection On Screen Menus and Displays Setting up TV Program 12~14... -
Page 7: Supplied Accessories
Supplied Accessories L Make Sure the following accessories are provided with Product. 1. AC/DC adaptor 2. AC Cord 4. Batteries (type AAA) 3. Remote controller 6. PC IN cable 5. Owner’s manual LT-26HMF Model: Owner’s Manual 7. PC Audio IN cable... -
Page 8: Controls 7~9
Controls 1. ON/OFF Switches TV set on or off. 2. MENU Displays a menu. 3. + CH - (Program Up/Down) Selects a program or a menu item. 4. + VOL - (Volume Up/Down) Adjusts the volume./ Adjusts menu settings. 5. TV/AV Selects TV, COMPONENT, VIDEO, S-VIDEO, RADIO(Only when the set is Radio On.), PC ANALOG, PC DIGITAL or DTV mode. -
Page 9: Remote Controller 8~9
Controls All the functions can be controlled with the remote controller. Some functions can also be adjusted with the buttons on the side panel of the set. Remote controller Before you use the remote controller, please install the batteries. 1. POWER Turns the TV on from standby or off to standby mode. - Page 10 Controls 12. VOLÏq (Volume Up/Down) Adjusts the sound level. Adjusts menu settings. 13. TV/PC Selects TV or PC mode directly. 14. PSM (Picture Status Memory) Recalls your preferred picture setting 15. SSM (Sound Status Memory) Recalls your preferred sound setting 16.
-
Page 11: Basic Operation
Basic Operation Turning the TV On and Off Standby Setup: The AC-DC adapter and the AC power cord must be set up and connected to have the TV in standby mode ready to be turned on. Press the ON/OFF button on the side panel of the TV to go into standby mode. -
Page 12: On Screen Menus And Displays
On Screen Menus and Displays 1. Press the MENU button to display main menu. 2. Press the CHx y button to select menus-Picture, Equalizer Sound, Special, Setup. Flat Music 3. Adjust each menu with the VOLÏq button. Movie 4. Press the MENU button to return to preceding Speech User menu. -
Page 13: Setting Up Tv Program 12~14
Setting up TV Program Once you have preset the programs, you will be able to use the CHxy or NUMBER buttons to scan the programs you Auto Program programed. Table V/UHF Programs can be tuned using automatic or manual modes. Start Auto Program All programs that can be received are stored by this method. -
Page 14: Manual Program
Setting up TV Program Manual Program Manual Program Manual Program lets you manually tune and arrange the Channels in whatever order you desire. Also you can Channel Table V/UHF assign a Channel name with 5 characters to each ▶ Edit Name channel number. -
Page 15: Program List
Setting up TV Program Program List Program List You can check the Programs stored in the memory 005----- by displaying the Program list. 001----- 006----- 002----- 007----- Also you can move some programs to other 003----- 008----- program numbers or insert a blank program data into 004----- 009----- the selected program number. -
Page 16: Picture Control
Picture Control You can adjust picture Contrast, Brightness, Colour, Sharpness and Tint to the levels you prefer. Picture Manual Picture Control Contrast 1. Press the MENU button. Brightness Colour 2. Select the Picture menu. Sharpness 3. Press the CHxy button select a picture item. Tint 4. -
Page 17: Sound Control
Sound Control You can select your preferred sound setting; Flat, Music, Sound Movie or Speech. You can also adjust the sound ▶ Equalizer frequency of equalizer, balance. If you switch AVL to on, Balance the set automatically keeps on an equal volume level even Surround if you change programs. -
Page 18: Parental Control 17~18
Parental Control If used, this optional feature can “block” undesirable programming from appearing on the TV. Note: Parental Control is not available in PC Mode. To block Computer inputs, use the block AUX SOURCES option in the Parental Control menu in TV Mode; computer inputs will not be available. - Page 19 Parental Control TV Rating 1. Press the MENU button. 2. Select the Special menu. ALL FV V S L D TV-Y 3. Press the CHxy button to select the Parental TV-Y7 Control, then press the VOLÏq button. TV-G TV-PG U U U U U 4.
-
Page 20: Information
INFORMATION MOTION PICTURE ASSOCIATION OF USA (MPAA) RATING SYSTEM Grade Meaning General Audiences Content not offensive to most viewers Parental Guidance Content is such that parents may not want their Suggested children to view the program. Parental Guidance Program is inappropriate for preteens, with a greater degree PG-13 Suggested of offensive material Suggested than a PG rated program... - Page 21 INFORMATION The sub-rating of TV rating Grade Meaning Fantasy Violence Violence Sexual Situation Adult Language Sexual Suggestive Dialog Note ; The TV-Y7, TV-PG, TV-14 and TV-MA have additional options. See the next step to change. To set the FV, D, L, S and V sub-ratings, first select one of these TV-Ratings: TV-Y7, TV-PG, TV-14 and TV-MA VOL Ï...
-
Page 22: Captions
Captions The captions is a process which converts the audio portion of a television program into written words which then appear on the television screen in a form similar to subtitles. Closed captions allow viewers to read the dialogue and narration of television programs. -
Page 23: Other Functions 22~24
Other functions Clock Special Setting the clock is necessary in order to use the various ▶ Clock timer features of the TV. You can set automatic TV On or Blue Back Auto Sleep Off time. Childlock Radio 16:9 1. Press the MENU button. Caption ▶... -
Page 24: Auto Sleep
Other functions Auto Sleep If you select Auto Sleep On the set will automatically switch itself to standby mode approximately ten minutes after a TV Channel stops broadcasting. 1. Press the MENU button. 2. Select the Special menu. 3. Press the CHxy button to select Auto Sleep. 4. -
Page 25: Pip Function
Other functions PIP function PIP will let you view two separate source inputs on your TV screen at the same time. Viewing the PIP picture Press the PIP button. (Press the PIP button again, to turn PIP off.) Selecting the PIP picture mode Press the MODE button to adjust the PIP picture mode. -
Page 26: Radio Control
Radio Control This function is possible only when the set is in Radio mode.(Radio mode is displayed when the Setting for special menu is radio On.) Radio Setup 1. Use TV/AV button on remote controller to select Mode Auto Frequency 87.50 MHz Radio mode. -
Page 27: External Equipment Connection 26~27
External Equipment Connection You can connect additional equipment, such as VCRs, camcorders etc. to your set. Examples are shown below. Antenna connection 1. Connect RF out on the VCR to the Antenna input on the rear of the TV. 2. Connect the antenna cable to the antenna in jack on the VCR. -
Page 28: S-Video Input
External Equipment Connection S-VIDEO INPUT If using an S-VIDEO source, the picture quality will be improved over a video source. 1. Connect the S-VIDEO output of a VCR to the S-VIDEO input on the TV. S-VIDEO 2. Connect the audio cables from the S-VIDEO VCR to the L (MONO), R inputs on the TV. -
Page 29: Connecting The Pc As A Monitor 28~31
Connecting the PC as a monitor This function is possible only when the set is in PC mode. Use the TV/AV button on remote controller. MENU Picture adjustment Picture Sound You can adjust picture Contrast, Brightness, H/V Position Temperature, Clock, Phase and ARC as you prefer. Auto 1. - Page 30 Connecting the PC as a monitor Sound adjustment 1. Press the MENU button. Sound 2. Select the Sound menu. Equalizer 3. Press the CHxy button to select the desired Balance sound item; Equalizer, Balance, AVL, Surround or Surround Sound Mode. Sound Mode 4.
- Page 31 Connecting the PC as a monitor Position Adjustment This function is to adjust picture to left/right and up/down H/V Position as you prefer. 1. Press the MENU button. H-Position 2. Select the H/V Position menu. V-Position 3. Press the CHxy button to select the desired position item.
- Page 32 Connecting the PC as a monitor PC ANALOG INPUT 1. Connect the PC IN cable (D-sub jack) from the monitor output socket of the PC to the PC ANALOG input socket of the set. PC Audio In 2. Connect the PC Audio IN cable from the PC Digital In PC to the PC AUDIO IN of the set.
-
Page 33: Product Specification
Product Specification Model LT-26HMF Horizontal size 768(768) mm Thickness 102(215) mm Main body (With stand) Height 442(497.5) mm Weight 12.81(14.56) kg Power requirements DC 24V/6.0A Television system NTSC Television program VHF: 2~12 UHF :21~69 Cable : S1~S41 LCD Panel 26" WIDE TFT LCD panel... -
Page 34: Troubleshooting
Troubleshooting Problem Check item • Insert the AC power cord plug securely in AC power outlet. No picture on screen and no sound • Make sure the remote control is not in the standby from speakers mode (The POWER/Standby indicator is red.) •... -
Page 35: Limited Warranty
Limited Warranty...
