Summary of Contents for Real-El M-580

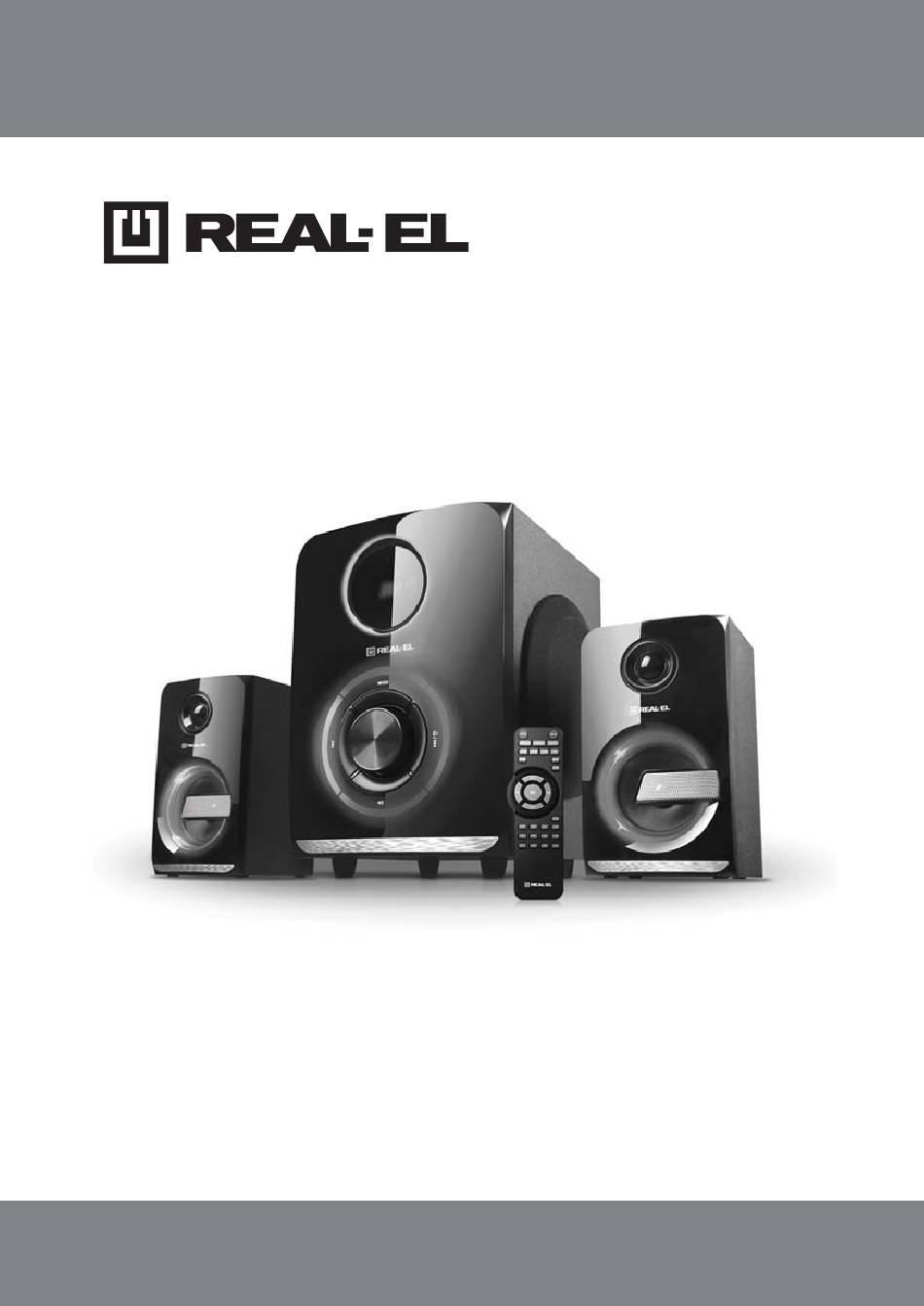

- Page 1 OPERATION MANUAL 2.1 MULTIMEDIA SPEAKER SYSTEM M-580...
-
Page 2: Table Of Contents
M-580 Operation Manual Congratulations on your purchase of the REAL-EL speaker system! COPYRIGHT © 2020. ENEL GROUP OU. This Manual and information contained in are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders. CONTENTS ENG .................... -
Page 3: Eng

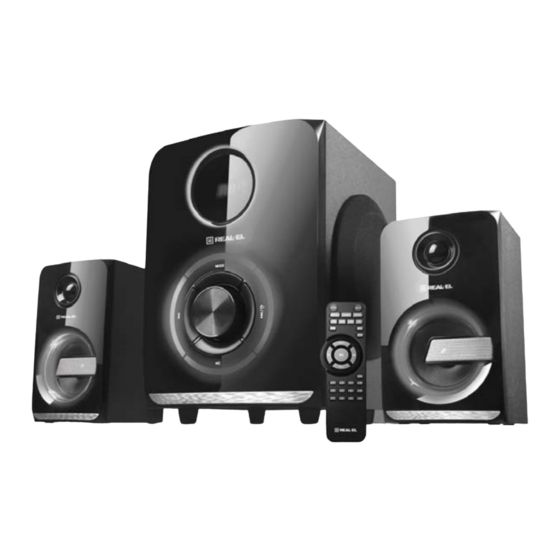

4. TECHNICAL DESCRIPTION M-580 2.1 Multimedia Speaker System (MSS) is designed to play music and sound games, movies, etc. The MSS enabling to connect to virtual to any audio source (CD/DVD-player, TV, phone, PC, etc.) without using an additional power amplifier. The MSS has a built-in FM radio, Bluetooth module and audio files player USB flash, SD card. - Page 4 (press shortly in the Radio mode). : Next track (press shortly in the Player and Bluetooth mode); next station (Radio mode); On/OFF backlit (press and hold for 2-3 sec). VOL+/- Volume level control. : Play/Pause (press shortly in the Player mode). Technical support: www.real-el.com...
- Page 5 : Play/Pause (pressed short in the Player mode). :next track (pressed short in the Player and Bluetooth mode); next station (press shortly in the Radio mode); switch ON/switch OFF backlit (press and hold for 2-3 sec). Technical support: www.real-el.com...
-
Page 6: Connection
5. CONNECTION Connection MSS M-580 speaker system can be connected to most of audio devices: DVD/CD players, PCs, laptops, etc. (see connection diagram in Fig. 4). • Before making any connections, make sure the MSS is off and unplugged. Then connect satellites to the subwoofer AUDIO OUTPUT L/R l jacks using built-in audio cables. - Page 7 After 2-3 seconds the speaker system starts the search mode. • It is necessary to select the search mode of devices with Bluetooth on a signal source (phone, notebook, smartphone, etc.). “M-580” device will be displayed on the screen which should be connected to*.
-
Page 8: Troubleshooting
4.8 kg Notes: • Technical specifications given in this table are supplemental information and cannot give occasion to claims. • Technical specifications and package contents are subject to change without notice due to the improvement of REAL-EL production. Technical support: www.real-el.com... - Page 9 Manufacturer: ENEL GROUP OU, Harju maakond, Rae vald, Jüri alevik, Aruküla tee 55a, 75301, Estonia. ® Registered Trademark of ENEL GROUP OU. Estonia.
