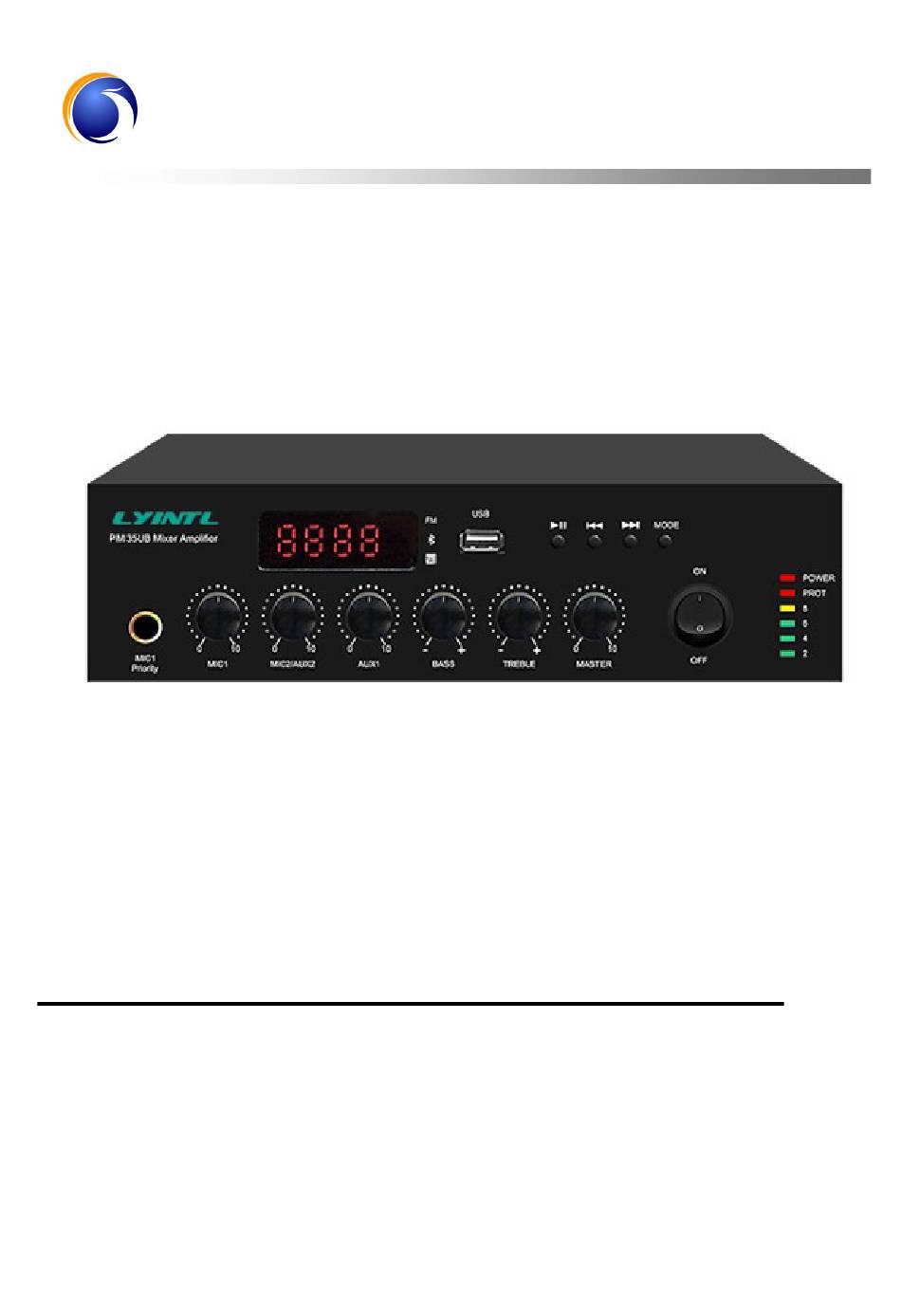

- Page 1 Public Address System Mini Mixer Amplifier PM-60UB Operation Instructions Welcome to use our public address system. For the better use of this product, please read this instruction carefully prior to use. LY International Electronics Co., Ltd http://www.lyintl.com...
- Page 2 About this User Manual This User Manual is available and effective upon completion of development of the mixer amplifier PM-60UB. The User Manual includes system description, matters needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the network address center. Please read this User Manual carefully before connection, installation and use and operate in accordance with corresponding instructions in the Manual.
-
Page 3: Table Of Contents
Contents 1. Product Description ..............................1 1.1 Features ..................................1 2. Appearance Description ..............................1 2.1 Front panel ................................1 2.2 Rear panel ................................. 3 2.3 Side Panel .................................. 4 3. Working mode................................4 3.1 MIC mode ................................. 4 3.2 Bluetooth mode ................................. 4 3.3 USB mode ................................. -
Page 4: Product Description
1. Product Description 1.1 Features Built-in radio function; 2 MIC inputs, 1 EMC input, 2 line inputs, 1 line output; Speaker output of 100V or 70V & 4 -16 Ω; Bluetooth and USB function; Support infrared remote control; ... - Page 5 In FM/Bluetooth/USB mode, long press this key to turn down the volume. Next song/（Next radio when in FM mode） In U-disk and Bluetooth mode, press this key to switch to the “next song”; In FM mode, press this key to switch to the “next radio”; In FM/Bluetooth/USB mode, long press this key to turn up the volume.
-
Page 6: Rear Panel
2.2 Rear panel AC~110-240V 50/60Hz Power input The interface is to supply the working power. Insert the plug onto the machine, and then connect the power grid. Radio antenna interface Radio antenna connects to this interface. DC 24V power input DC 24V stand-by power input interface. -
Page 7: Side Panel
2.3 Side Panel Heat dissipation vent 3. W orking mode 3.1 MIC mode When the Microphone is broadcasting in any mode, the system will detect the MIC and mute the others sources. It will return to the original play status when the MIC has no signal. 3.2 Bluetooth mode Press MODE to display “BLUE”... -
Page 8: Remote Control Instructions
4. Remote control instructions As shown in the following figure: Function key description： ① Mode main function key，working mode switch. ② Power switch (only control Bluetooth/USB/FM) ③ Play & Pause/（Search the audio automatically when in FM) ④ EQ sound effect ⑤... - Page 9 For issues and precautions not mentioned in this User Manual, if required, please contact the distributor or visit our website at http://www.lyintl.com. In case of any failure in the warranty period, please contact service personnel (or distributor) of our company for service.
-
Page 10: Packing List
Packing list List Quantity PM-60UB Manual Warranty Card Certificate Power line Remote control FM antenna 4P green wiring terminal with locks/ 2ERJKM-5.08-4P 2P green wiring terminal... -
Page 11: Performance
Performance Model PM-60UB Power supply ～110V-240V/50Hz MIC1 input 7.5mV MIC2 input 7.5mV AUX1 input 350mV AUX2 input 350mV EMC input 350mV MIC frequency 180Hz～10kHz（±3dB） AUX frequency 70Hz～16kHz（±3dB） Noise <5mV (4-ohm load output terminal) <1% 1KHz Treble adjustment 10dB（±2） Bass adjustment 10dB（±2）... - Page 12 Caution ● The device is not completely disconnected from power source when it is switched "OFF". For sake of safety, please disconnect the device from the socket if it is not in use. ● Please keep this device off water drops or splash or vase filled with water or any other articles of similar nature.
