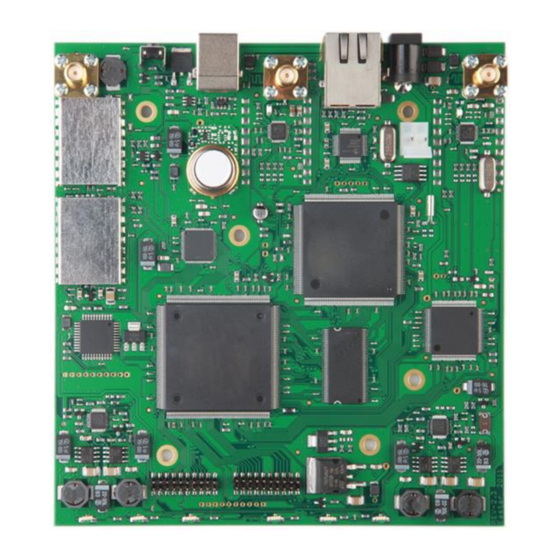

- Page 1 SATELLITE ROUTER BOARD UHP-1100 GENERAL DESCRIPTION AND INSTALLATION GUIDE DOCUMENT RELEASE 3.2 [UHP.1C32.EN] AUGUST 2015...
-
Page 2: Table Of Contents
UHP-1100 SATELLITE ROUTER BOARD GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 CONTENT Acronyms and Abbreviations ......................4 Introduction ............................. 6 Required level of qualification ........................6 Document version and applicability ......................6 Copyright ..............................6 General description ......................7 System overview ........................7 Measurement equipment, tools and accessories .............. - Page 3 FIGURES Figure 1 Structure of UHP Manuals ....................... 6 Figure 2 UHP-1100 Satellite Router Board ....................7 Figure 3 Example of router’s connection in SCPC or TDM/TDMA terminal modes ........12 Figure 4 Example of router's connection in TDM/TDMA MESH mode ............12 Figure 5 Router resetting to default procedure ..................
-
Page 4: Acronyms And Abbreviations
Main station of Hubless network. Master allocates bandwidth and performs stations acquisition. MCPC Multiple channels per carrier. All TDM carriers generated by UHP can be treated as MCPC. Even if they are called SCPC. Mesh Capability of station allowing to receive other stations via TDMA link. - Page 5 Time format used by UHP. Plus sign at the beginning (+HH:MM:SS or +NN d HH:MM:SS)denotes relative time from some event or UHP start-up. If UHP has time synchronized to hub or SNTP absolute time can be displayed. Time zone affects absolute time.
-
Page 6: Introduction
UHP VSAT platform is based on the universal satellite router UHP, which is available in different fully-compatible hardware modifications. UHP satellite router is a basic element of any network architecture and can be used in any combinations and at any hierarchy level. Router functional capabilities and its operating modes are determined by the installed software and its configuration. -
Page 7: General Description
UHP routers can be used to organize simple point-to-point channels, “star”- and “mesh”-topology networks with several hierarchy levels and bandwidth-on-demand capabilities. UHP VSAT platform is based on many innovation technologies. It was developed using long-term experience in satellite service provisioning. Nowadays electronics achievements made it possible to make VSAT platform compact and assure its efficiency and reach functionality. -
Page 8: Labeling And Sealing
Power connector (DC IN) UHP-1100 router board is powered with 24 VDC. AC Power supply adaptor is not supplied. The router can be powered from a DC power source (batteries, DC-DC converter), but the specific power supply mode should be agreed upon with the Manufacturer. -
Page 9: Burst Demodulator If Input (Tdma Rx)
TDMA-RX is the second input for the signal from the satellite (LNB). This input is designed to receive bursts (TDMA) in UHP proprietary format. The input can also provide, from the router side, supply voltage 13 or 18 V, similar voltages being simultaneously fed to both inputs. -
Page 10: Status" Indicator
UHP-1100 SATELLITE ROUTER BOARD GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 1.4.11 “STATUS” Indicator “STATUS” green indicator indicates the router operation mode. This indicator is always flashing. If it does not flash it means that the router is not functioning (please check power supply). Slow flashing (once every second) means router normal operation. -
Page 11: Operations
2.2.2 Installation UHP-1100 Router board is designed for integration into customer’s housing that should ensure proper heat dissipation, shielding and mechanical protection. The board should be secured to the housing with all the holes provided, as they are designed for heat dissipation. -
Page 12: Powering On
Web page of the router can be accessed from any Internet browser. By default, UHP-1100 router is configured with IP-address 192.168.222.222 with mask 255.255.255.248 (/29). Respectively, the computer should be configured with an address, e.g. 192.168.222.217 with the same mask. -
Page 13: Local Access Via Usb
(Hyperterminal) or third-party terminal programs. With the fist connection of UHP-1100 Router to PC the system will request the device driver. UHP.INF driver is available on CD with documentation or can be downloaded from our web site. In response to the request for driver you should refuse from search in Internet and select setting from the specified place where UHP.INF is... -
Page 14: Operations
All connectors must be properly attached and secured. Software updates One of the key advantages of UHP satellite routers is the ability to extend the functionality by updating the software. Software updates also include fixes for known bugs and improving the algorithms of the system. -
Page 15: Troubleshooting
UHP-1100 SATELLITE ROUTER BOARD GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 4. TROUBLESHOOTING Table 2 Troubleshooting guide Symptoms Possible reasons Actions Router doesn’t work DC power beyond the limits of allowed Check DC power voltage values Power cord is broken Check PSU cables and output voltage of PSU. -
Page 16: Replacement Of Modules
UHP-1100 SATELLITE ROUTER BOARD GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 Symptoms Possible reasons Actions Low signal to noise level Check C/N in demodulator’s statistics. Verify if antenna is properly pointed to the satellite and there no obstacles in the direction to the satellite. -
Page 17: Figure 5 Router Resetting To Default Procedure
Successful reset will be evidenced by fast and simultaneously flashing indictors ERROR and STATUS. By default, UHP-1100 router is provided with IP-address 192.168.222.222 with mask 255.255.255.248 (/29). Respectively, the computer should be provided with an address, e.g. 192.168.222.217 with the same mask. -
Page 18: Storage, Transportation And Disposal
UHP-1100 SATELLITE ROUTER BOARD GENERAL DESCRIPTION AND INSTALLATION GUIDE, v3.2 5. STORAGE, TRANSPORTATION AND DISPOSAL Storage and transportation of satellite routers must be performed in original packaging. Storage and transportation should comply with the following conditions: - humidity is not more than (80 ± 3)% at a temperature (25 ± 2)°C;...
