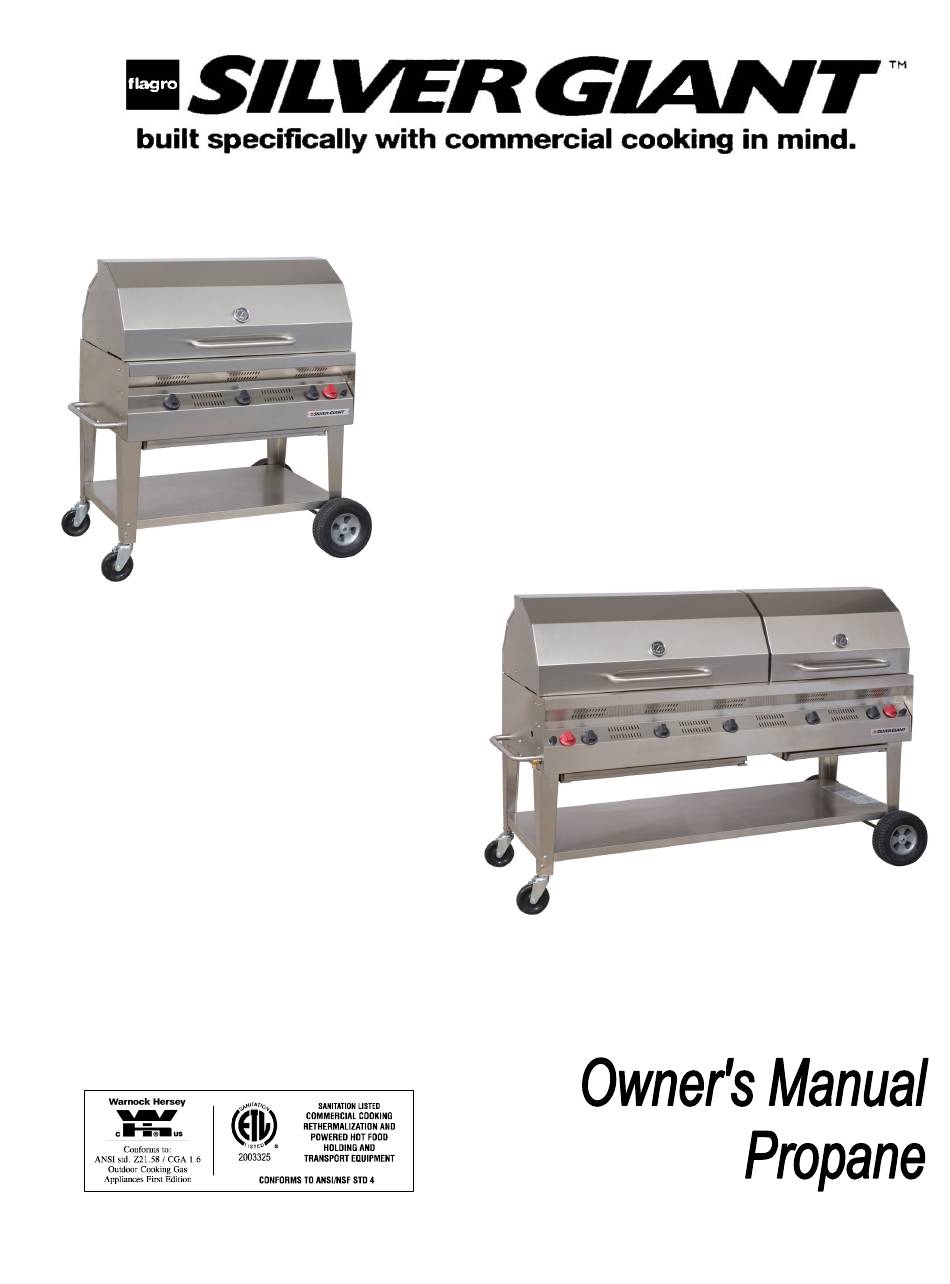

- Page 1 SGC-36 SGC-60...
-
Page 2: For Your Safety
PROPANE MODELS: SGC-36/SGC-48/SGC-60/SGC-72/SGR-24 BARBECUE - CARE AND USE RETAIN FOR FUTURE REFERENCE FOR YOUR SAFETY If you smell gas: • Shut off gas supply to appliance • Extinguish any open flame • If odour continues, immediately call your gas supplier... -
Page 3: Specification
PROPANE GAS CYLINDER SPECIFICATION All propane gas cylinders used with this appliance must be constructed and marked with the • specifications for LP Gas Cylinders in accordance with the Canadian Transport Commission (CTC) for use in Canada, or the U.S. Department of Transport (DOT) for use in the USA. Cylinders shall have a collar to protect the cylinder valve. -
Page 4: Hose & Regulator
HOSE & REGULATOR The hose and regulator assembly supplied with your gas barbecue is specifically designed for your • model. No modifications, additions or substitutions should be attempted. The pressure regulator is factory set at an outlet pressure of 11 inches water column (W.C.). •... -
Page 5: Leak Testing
Figure 4a Figure 4b, drain valve enlarged to show detail LEAK TESTING All factory-made connections have been thoroughly tested for gas leaks and the burners have been flame tested. However, shipping and handling may have loosened the gas fittings. As a safety precaution: Test all fittings for leaks before using your gas barbecue. -
Page 6: Warranty
WARRANTY The Company warrants its new gas barbecues (parts other than the burners and stainless steel body) to be free from defects in workmanship and material for a period of 12 months from the date of purchase where verified by a retail sales receipt. In all other cases reference will be made exclusively to the product manufacturing code. -
Page 7: Lighting Instructions
LIGHTING INSTRUCTIONS Ensure all burner knobs are in the OFF position. Connect the hose assembly to the propane gas cylinder. Check all connections and hoses for leaks with a soap and water solution. CAUTION: If hood is being used, open before attempting to light the grill. Turn the “red”... - Page 8 QCC1 CONNECTION NOTICE All barbeques manufactured today are equipped with QCC1 connectors that are pressure sensitive. To ensure trouble free lighting, please follow these easy steps: 1. All control knobs must be in the OFF position. 2. SLOWLY open valve on propane cylinder to allow fuel to reach the appliance.
-
Page 9: Parts List
Main Orifice (NG) – All NG Models SGCP-2409 Orifice Assembly (LP) – Crossover (SGR-24/SGC-60) SGCP-2409N Orifice Assembly (NG) – Crossover (SGR-24N/SGC-60N) SGCP-3609 Orifice Assembly (LP) – Crossover (SGC-36/60/72) SGCP-3609N Orifice Assembly (NG) – Crossover (SGC-36N/60N/72N) SGCP-4809 Orifice Assembly (LP) – Crossover (SGC-48) SGCP-4809N Orifice Assembly (NG) –... - Page 10 PARTS LIST SGC-36(N)/SGC-48(N)/SGC-60(N)/SGC-72(N)/SGR-24(N) BARBECUES SGCP-3615R Grease Pan- 1.5” Deep (SGC-36/60/72) SGCP-4815R Grease Pan- 1.5” Deep (SGC-48) SGRP-2415R Grease Pan- 1.5” Deep (SGR-24) SGCP-3627R Grease Tray Rails- 2pc set L&R (1.5”- Deep Pan) SGRP-2427R Grease Tray Rails- 2pc set L&R (1.5”- Deep Pan)
- Page 11 Parts Catalogue...
- Page 12 PARTS CATALOGUE...
- Page 13 HOSE AND REGULATOR FLAVOUR BAR RAILS (2PC SET) SGCP-3632 FLAVOUR BAR RAILS (2PC SET) SGCP-4832 CROSSOVER BURNER (SGR-24/SGC- PROPANE NATURAL GAS SGCP-2404 CROSSOVER BURNER (SGC-36/60/72) SGCP-3604 CROSSOVER BURNER (SGC-48) SGCP-4804 SS COOKING GRID (21x12) SGCP-3601 21" SGRP-3601 SS COOKING GRID (18x12) 18"...
