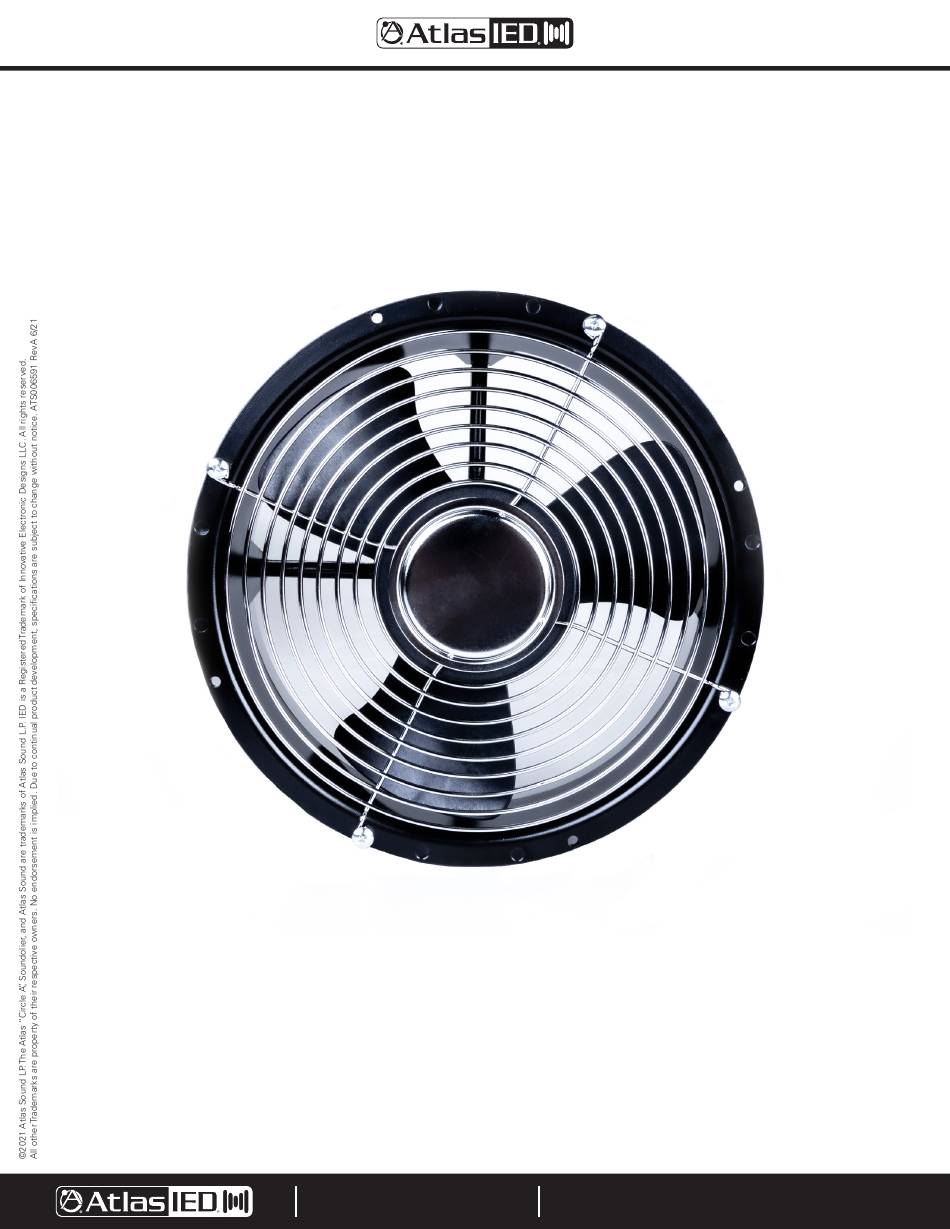

- Page 1 TT-FK10-1 Texas Tough Fan Kits for -35" Deep Racks Installation Manual Part Number 1-12247 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM...
- Page 2 Table of Contents Important Safety Instructions ....................................3 Installation ..........................................8 To Control Cooling Paths .......................................11 Warranty ..........................................12 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM...
-
Page 3: Important Safety Instructions
18. The mains plug of the power supply cord shall remain readily operable. Protective earthing terminal. The apparatus should be connected to a mains socket with a protective earthing connection. 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM... - Page 4 • Contact AtlasIED for instructions on cleaning the inside of the unit. Large accumulations of dust inside the unit may result in heat buildup and fire. • Ensure that the power supply plug is securely plugged into the wall outlet. Never allow dust to accumulate on the power plug or inside the wall outlet.
- Page 5 It is very important that only responsible, trained personnel are allowed to operate and maintain these systems, and that they use only appropriate equipment and tools. If a person is not trained, they shall contact the AtlasIED factory for direction on how to operate and maintain an AtlasIED system.
- Page 6 Avoid the use of flammable or toxic cleaning fluids, and the use of carbon tetrachloride is prohibited. Maintenance of the equipment shall be at least what is specified in the AtlasIED manuals and literature, and performed only by qualified personnel.
- Page 7 Personnel working with or near high voltage should be familiar with modern methods of resuscitation. Such information and training is available from the Red Cross or local emergency response personnel such as the police and fire department. 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM...
-
Page 8: Installation
3. Align finger guard over fan knockout ensuring screw holes line up. Insert four of the provided screws through the finger guard mounting holes and screw holes in the top panel. 4. Flip over top panel, making sure screws stay in place. 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM... - Page 9 8. Flip panel over so fan is facing up, place finger guard on back of fan, aligning the screw holes. Install the four screws and nuts. Tighten until finger tight. 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM...
- Page 10 10. Connect power cord plug to fan and secure so the cords will not hang into the rack after top panel is installed. 11. Re-install top panel in Texas Tough rack. 12. Plug in fan power cord to outlet. 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM...
-
Page 11: To Control Cooling Paths
4. Snap housing back into rack, press each tab in firmly to ensure it is fully engaged. 5. Repeat steps 2 through 4 for each vent to be blocked. 9701 TAYLORSVILLE ROAD TELEPHONE: (502) 267-7436 AtlasIED.com LOUISVILLE, KENTUCKY 40299 U.S.A. SUPPORT@ATLASIED.COM... -
Page 12: Warranty
Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. AtlasIED will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
