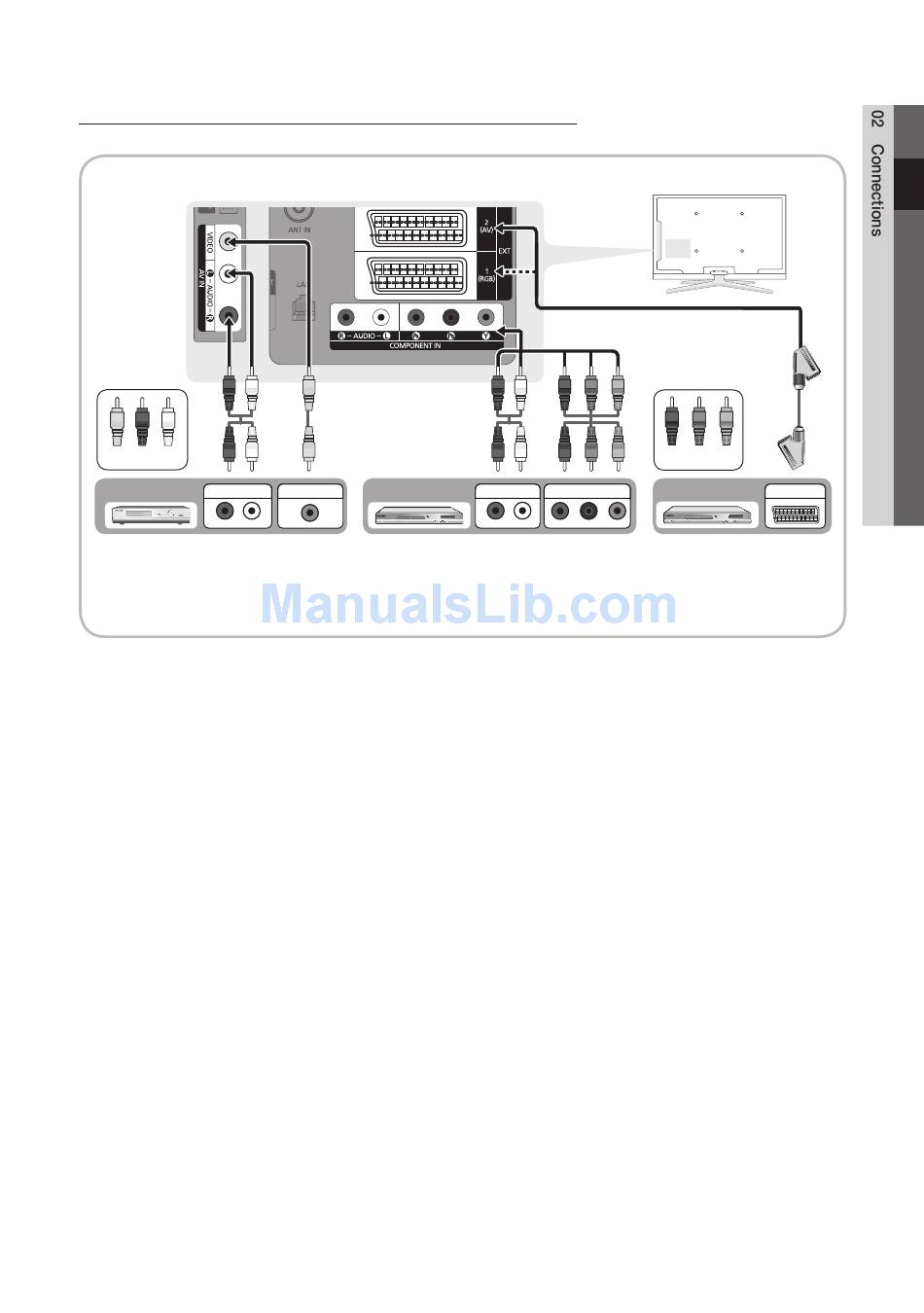

Using a Component (up to 1080p) or Audio/Video (480i only) and Scart Cable
Available devices: VCR, DVD, Blu-ray player, cable box, STB satellite receiver
R W
Y W R W R B G
R W
Yellow Red White
VCR
AUDIO OUT
R-AUDIO-L
✎
In Ext. mode, DTV Out supports MPEG SD Video and Audio only. R-AUDIO-L
✎
To obtain the best picture quality, the Component connection is recommended over the A/V connection.
