Summary of Contents for Samsung LE32D550K1W

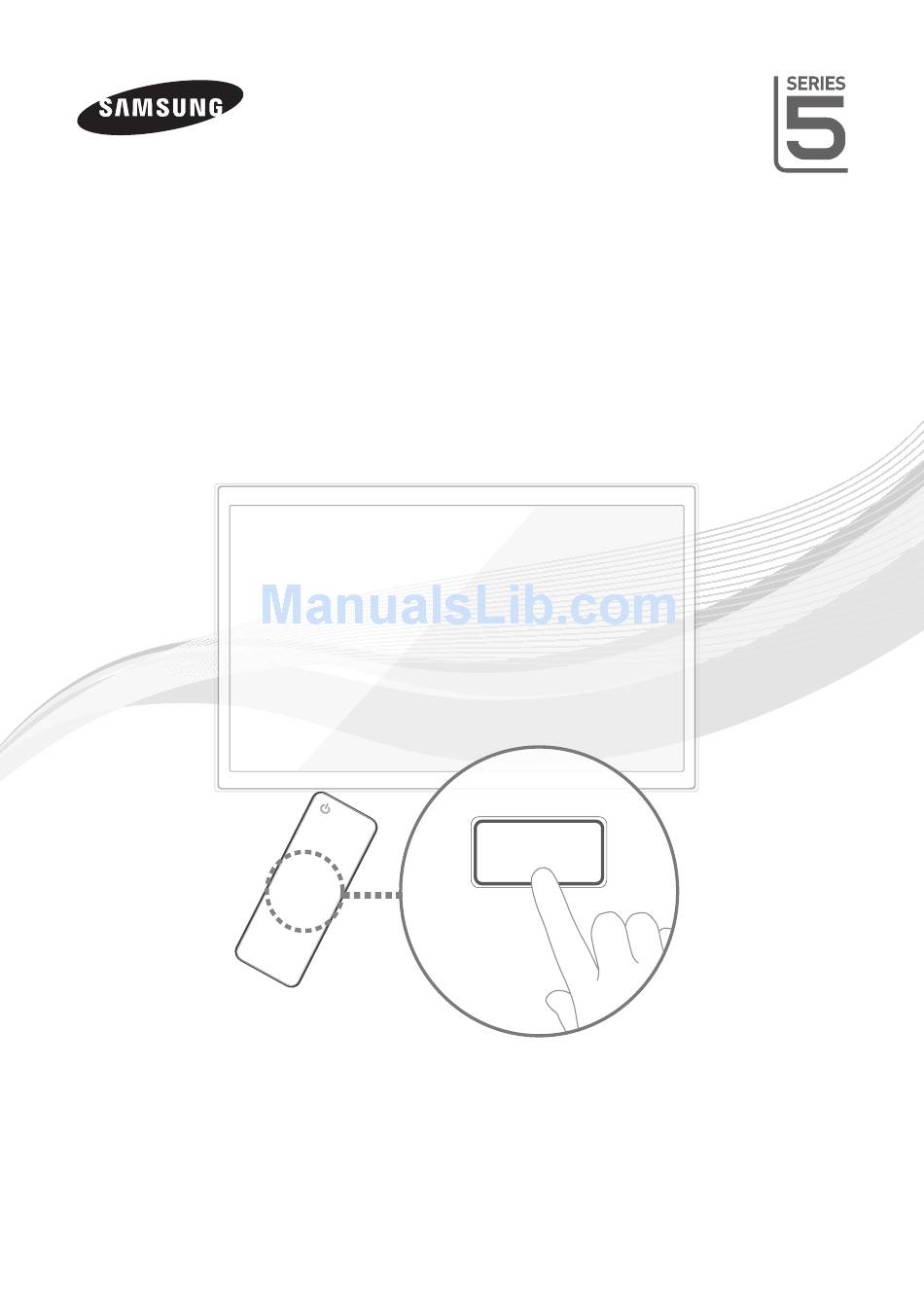

- Page 1 LCD TV User Manual E-MANUAL imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Model _____________ Serial No. _____________...
-
Page 2: Securing The Installation Space
The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not. -
Page 3: Viewing Control Panel
✎ Please make sure the following items are included with your TV. If any items are missing, contact your dealer. ✎ The items’ colours and shapes may vary depending on the models. ✎ Cables not included in the package contents can be purchased separately. ✎... -
Page 4: Viewing The Remote Control
Turns the TV on and off. Press to directly access to channels Alternately select Teletext ON, Double, Mix or OFF. (Not MHEG text) Adjusts the volume. Opens the main menu. Displays the My Downloads, Watch TV, AllShare™ and Source. Quickly select frequently used functions. -
Page 5: Connecting To Antenna
When the TV is initially powered on, basic settings proceed automatically. ✎ Preset: Connecting the mains and antenna. TV Rear Panel Power Input When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWERP button. - Page 6 ¦ Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, VCR, Digital Audio System, Amplifier, DVD Home Theatre, PC Using an HDMI cable or HDMI to DVI Cable (up to 1080p) ✎ HDMI IN 1(DVI), 2, 3, 4, PC/DVI AUDIO IN For better picture and audio quality, connect to a digital device using an HDMI cable.
- Page 7 SCART connection Using a Component (up to 1080p) or Audio/Video (480i only) and Scart Cable ✎ In Ext. mode, DTV Out supports MPEG SD Video and Audio only. ✎ To obtain the best picture quality, the Component connection is recommended over the A/V connection. Component connection COMPONENT OUT AUDIO OUT...
-
Page 8: Connecting To Audio Device
Connecting to a PC and Audio device Available devices: Digital Audio System, Amplifier, DVD Home Theatre ¦ Using an Optical (Digital) or Headphone Connection ✎ DIGITAL AUDIO OUT (OPTICAL) When a digital audio system is connected to the both the TV and the system. 5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH. - Page 9 ¦ Using an HDMI cable or HDMI to DVI Cable / a D-sub Cable ✎ Connecting through the HDMI cable may not be supported depending on the PC. ✎ An HDMI cable supports digital video and audio signals, and does not require an audio cable. Display Modes (D-Sub and HDMI/DVI Input) Optimal resolution is 1920 X 1080 @ 60 Hz.
-
Page 10: Changing The Input Source
Source List ¦ Use to select TV or other external input sources such as DVD / Blu-ray players / cable box / STB satellite receiver connected to the TV. ■ TV / Ext. / PC / AV / Component / HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 / USB / AllShare ✎... -
Page 11: Network Connection
(typically a wireless IP Sharer) to transmit an encrypted security code called an access key. If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or TKIP AES (WPS2Mixed) for your wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications. -
Page 12: How To View The E-Manual
How to view the e-Manual You can find instructions about your TV’s features in the e-Manual in your TV. To E-MANUAL use, press the E-MANUAL down/right/left buttons to highlight a category, then a topic, and then press the ENTERE button. The e-Manual displays the page you want to see. You can also access it through the menu: MENUm →... - Page 13 Viewing the Contents Basic Features > Picture Menu (3/17) a Try Now b Home { Zoom } Index L Page e Exit Using the Zoom mode How to search for a topic on the index page 1. To search for a topic, press the left or right arrow button to select a letter, and then press ENTERE. The Index displays a list of topics and keywords that begin with the letter you selected.
-
Page 14: Installing The Wall Mount
For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. -
Page 15: Troubleshooting
TV on or off, or adjust the volume. ✎ You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.com -> Support -> Downloads) by USB. ✎ This TFT LCD panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. -
Page 16: Securing The Tv To The Wall
Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. -
Page 17: Specifications
Display Resolution Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity TV System Colour/Video System Sound System HDMI IN 1 ~ 4 Stand Swivel (Left / Right) Model Name LE32D550 / LE32D551 Screen Size 32 inches Sound (Output) Dimensions (WxDxH) Body 804.7 X 80.3 X 507.4 (mm) With stand... - Page 18 Warning! Important Safety Instructions Please read the appropriate section that corresponds to the marking on your Samsung product before attempting to install the product. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
-
Page 19: Wiring The Mains Power Supply Plug (Uk Only)
3. Warranty repairs must be carried out by Authorised Samsung Dealers or Authorised Service Centres. No re-imbursement will be made for repairs carried out by non Samsung Dealers and, any such repair work and damage to the products caused by such repair work will not be covered by this warranty. - Page 20 Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country Customer Care Centre EIRE 0818 717 100 0330 SAMSUNG (7267864) © 2011 Samsung Electronics Co., Ltd. All rights reserved.
