Ambient Weather WR-112 ADVENTURER User Manual
Table of Contents
1.
Quick Start Guide ............................................................................................................................ 2
2.
Introduction ..................................................................................................................................... 3
3.
Warnings ......................................................................................................................................... 5
4.
Features ........................................................................................................................................... 6
5.
Power Sources ................................................................................................................................. 6
5.1
Best Practices for Charging .................................................................................................... 6
5.2
DC and AC Power .................................................................................................................. 7
5.3
Solar Power ............................................................................................................................ 7
5.4
Hand Crank Power ................................................................................................................. 7
5.5
Power Consumption ............................................................................................................... 7
6.
Operation ......................................................................................................................................... 8
6.1
Flashlight Operation ............................................................................................................... 8
6.2
Siren and SOS Operation ....................................................................................................... 8
6.3
Power Outage Light Flasher ................................................................................................... 8
6.4
Radio Operation ..................................................................................................................... 8
6.5
Time ....................................................................................................................................... 9
6.6
Radio Band Mode ................................................................................................................... 9
6.6.1
AM/FM Radio Tuning ........................................................................................................ 9
6.6.2
Weather Band Tuning ......................................................................................................... 9
6.6.3
Weather Alert Mode ......................................................................................................... 10
6.6.4
Smart Phone and PDA Operation ..................................................................................... 10
6.7
Low Battery Indication ......................................................................................................... 10
6.8
Audio Output ........................................................................................................................ 11
7.
Resetting the Unit.......................................................................................................................... 11
8.
Battery Maintenance ..................................................................................................................... 11
9.
Specifications ................................................................................................................................ 11
10.
Troubleshooting Guide ............................................................................................................. 12
11.
Accessories ............................................................................................................................... 14
12.
Liability Disclaimer .................................................................................................................. 14
13.
Warranty Information ............................................................................................................... 14
14.
FCC Statement .......................................................................................................................... 15
15.
Battery Recycle Statement ........................................................................................................ 16
Version 1.0
©Copyright 2014, Ambient LLC. All Rights Reserved.
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ambient Weather ADVENTURER WR-112
Summary of Contents for Ambient Weather ADVENTURER WR-112
-
Page 1: Table Of Contents
Ambient Weather WR-112 ADVENTURER User Manual Table of Contents Quick Start Guide ..........................2 Introduction ............................. 3 Warnings ............................5 Features ............................6 Power Sources ..........................6 Best Practices for Charging ....................6 DC and AC Power ........................7 Solar Power ..........................7 Hand Crank Power ......................... -
Page 2: Quick Start Guide
1. Quick Start Guide Pull the battery tab before operation. If the battery is already depleted, charge the battery before first use. If the radio does not operate after pulling the battery tab or anytime during normal operation: reset the radio by removing the battery and inserting an open ended paper clip into the reset hole. -
Page 3: Introduction

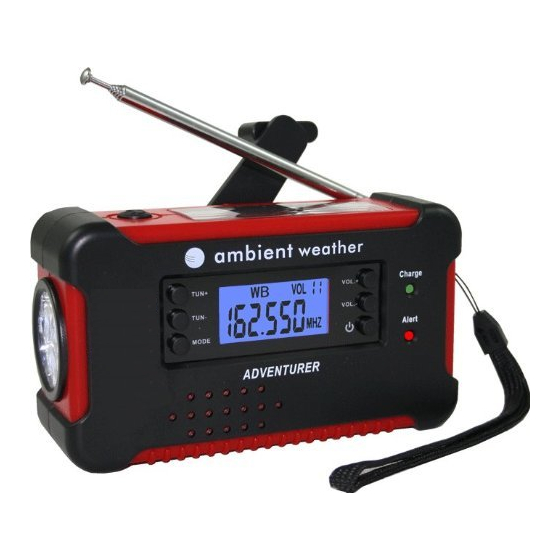

3. Plug in your Smart Phone or PDA. 2. Introduction Thank you for your purchase of the Ambient Weather WR-112 ADVENTURER Emergency Solar Hand Crank Radio, Flashlight with AM/FM/NOAA Weather Band, Certified Weather Alert and Smart Phone/PDA Charger. To download the latest full size manual (for easy viewing) and additional troubleshooting tips, please visit: http://ambientweather.wikispaces.com/wr112... - Page 4 Figure 1 Figure 2 Version 1.0 ©Copyright 2014, Ambient LLC. All Rights Reserved. Page 4...
-
Page 5: Warnings
1. 2.5 Stereo Cable. Connects Power Out Jack to cell phone tips (3), (4) and (5). 2. Power In Cable. Connects Power In Jack to USB power (from a compute or optional AC or DC converter). 3. Female USB Tip. Connects 2.5 Stereo Cable (1) to USB smart phone or PDA. -
Page 6: Features
15. Do not attempt to dismantle, open or repair this product yourself. If a fault occurs, seek advice from Ambient Weather support only. Only the rechargeable battery can be replaced or serviced. 16. Only operate within specified temperature range (32 °F to 131 °F). -
Page 7: Dc And Ac Power
The solar collector will not completely charge your unit and is intended to extend the existing battery charge. 5.2 DC and AC Power Prior to using the ADVENTURER, we recommend you fully charge the rechargeable battery through the USB Power Input (Figure 2). Lift the rubber tab on the back of the ADVENTURER to expose the connectors, as shown in Figure 2. -
Page 8: Operation
Mode Typical User Operation Power Recommend Power Source Consumption Flashlight Emergency or remote use Solar, Hand Crank AM/FM/Weather Emergency or remote use Solar, Hand Crank Band Radio Weather Alert Continuous monitoring (1) High AC, USB (from computer) Smart phone Short term emergency use High Hand Crank, AC, USB (from charging... -
Page 9: Time
6.5 Time When first powered up, the time will default to 12:00 AM. 1. Set 12Hr/24Hr Mode. Press and hold the MODE button for two seconds to enter the time setting mode. 12 Hr will begin flashing. Press the TUN+ button to switch between 12 hour and 24 hour time mode. -
Page 10: Weather Alert Mode
6.6.3 Weather Alert Mode You can silence the radio and enter the alert mode. The radio will remain in standby mode until there is a weather statement, watch or warning. To activate the Weather Alert Mode, tune to your local station as defined in the previous section. -
Page 11: Audio Output
(Figure 2) by squeezing the tab. NOTE: Only replace with rechargeable 3.7V lithium battery (LIR123A). Replacing the battery with a non-rechargeable battery may cause the battery to explode. Rechargeable 3.7V lithium batteries are available from Ambient Weather. 9. Specifications Battery Power: Version 1.0... -
Page 12: Troubleshooting Guide
USB. Disconnect USB power when listening to the radio. My smart phone connector is not Contact Ambient Weather with your smart phone model supported. Where can I purchase the and connector type. The connectors included cover about proper tip for my smart phone? 95% of the smart phone market. - Page 13 Problem Solution The ADVENTURER will not fully charge Charging a smart phone through the Phone Charger Jack my smart phone. is intended for emergency purpose only. It is not intended for recharging fully a discharged battery. Smart phone battery capacity significantly exceeds the battery capacity of the ADVENTURER.
-
Page 14: Accessories
Description Ambient Weather WR-AC1 UL AC power adaptor Rated USB to AC Adaptor for Small Electronics Devices Ambient Weather WR-DC1 USB to DC power adaptor DC Converter for Small Electronic Devices Ambient Weather WR-BATT 3.7V Replaces rechargeable battery after end / 800 mAh Rechargeable Battery of life (LIR123A rechargeable). -
Page 15: Fcc Statement
This limited warranty begins on the original date of purchase, is valid only on products purchased and only to the original purchaser of this product. To receive warranty service, the purchaser must contact Ambient, LLC for problem determination and service procedures. Warranty service can only be performed by Ambient, LLC. -
Page 16: Battery Recycle Statement
15. Battery Recycle Statement Recycle Rechargeable Batteries Recycle your old rechargeable batteries at one of the many collection sites in the U.S. and Canada. To find the site nearest you, visit www.call2recycle.org or call toll-free 1-877-2-RECYCLE. Version 1.0 ©Copyright 2014, Ambient LLC. All Rights Reserved. Page 16...
