Summary of Contents for Video Devices PIX-E5H

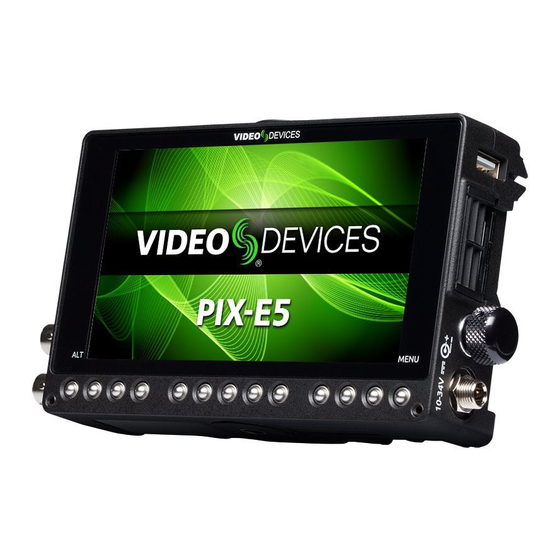

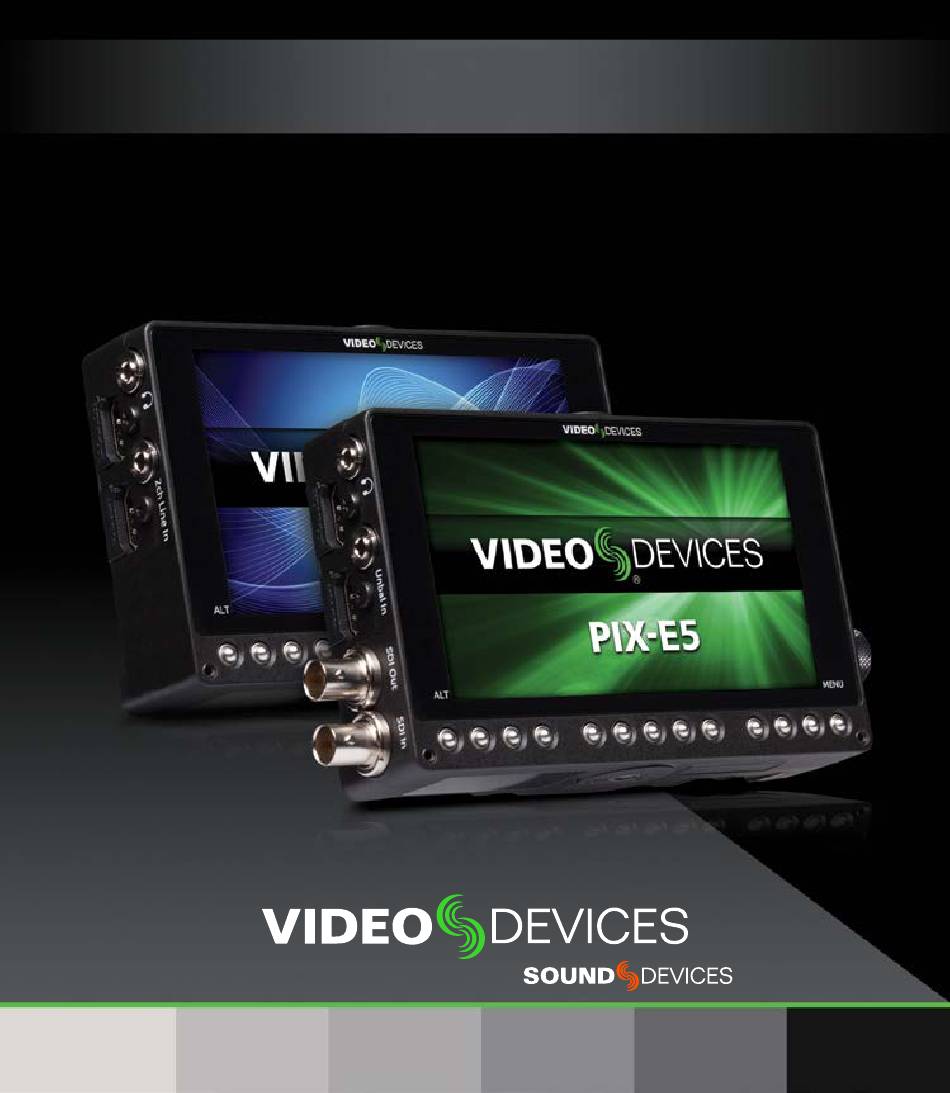

- Page 1 QUICK START GUIDE PIX-E5 / PIX-E5H Field Recording Monitor VIDEO PRODUCTION TOOLS BY...
- Page 2 For a full description of all product features, user-based procedures, specifications, and any safety information, please refer to the product’s User Guide located on the Video Devices website. Use the QR The PIX-E5 features both HDMI and SDI inputs and outputs, while the PIX-E5H has code or respective link to access the guide.
-
Page 3: Attach Power
It may also be powered with one or two removable, rechargeable, lithium-ion batteries, such as the Sony ® L Series batter- The green power LED will illuminate, and the Video Devices splash ies (not included). screen appears on the 5-inch LCD. To mount an L Series battery: Note: PIX-E monitors have a very powerful processor and operating system, so it takes up to 45 seconds to boot the first time. -
Page 4: Set Up Audio
Tools” later in this guide and the “Menus and Navigation” chapter of the PIX-E5/PIX-E5H User Guide. The PIX-E5H monitor can record up to six channels of audio (Line In and HDMI) to QuickTime (.mov) files, while the PIX-E5, with its additional 3G-SDI input, can record up to eight. -
Page 5: Recording And Playback
6. Attach and Format Storage 7. Recording and Playback PIX-E monitors can accept a SpeedDrive and a high-capacity SD memory card. Both PIX-E5 and PIX-E5H PIX-E monitors record edit-ready Apple ProRes QuickTime (.mov) files to SpeedDrive mSATA SSD media. write Apple ProRes video files to SpeedDrive media. The SpeedDrive and/or the SD card may be used To begin recording: to save and load custom settings. - Page 6 Accessories Declaration of Conformity The PIX-E5 and PIX-E5H works with various accessories to further enhance your field monitoring and recording experience. They may be purchased separately or as part of the PIX-E KIT. Manufacturer’s Name: Sound Devices, LLC Manufacturer’s Address:...
-
Page 7: Software License
Restrictions on use. Licensee may not distribute copies of the SOFTWARE or accompanying materials to others. Licensee may not modify, adapt, translate, reverse engineer, decompile, disassemble, or create derivative works based on the SOFTWARE or its accompanying printed or written materials. PIX-E5 & PIX-E5H Quick Start Guide... -
Page 8: Warranty And Service
Product specifications and features are subject to change without prior notification. Sound Devices, LLC warrants the PIX-E5 or PIX-E5H against defects in materials and workmanship for a period of ONE (1) year from date of original retail purchase. Users who register their product directly with Sound Devices Technical Support by mail, online, or phone, will receive an additional ONE (1) year of warranty coverage, extending the complete warranty period to TWO (2) years from the date of original Copyright ©... - Page 9 www.videodevices.com Part # 5785.002...
