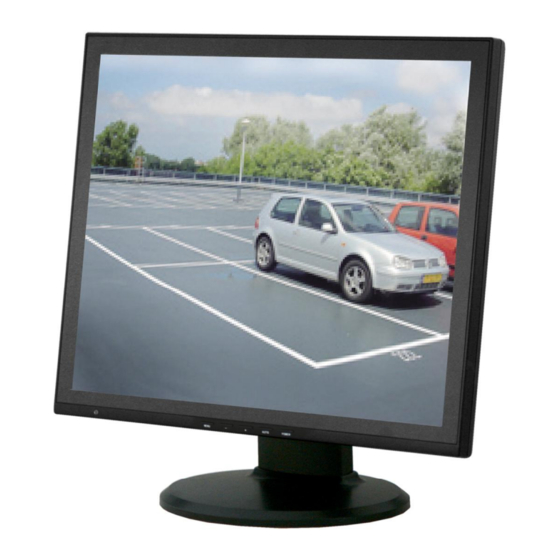

- Page 2 ENGLISH 1. Introduction: LCD/TFT monitor for observation and security. Improved LCD panel for 24-hour CCTV systems. High stability pictures and clear colours. Advanced circuits for a better capability to deal with the video signal and reduce interference on the monitor. Equipped with a VGA connection.
- Page 3 2.1 Colour: Select “COLOUR” and press “MENU” to confirm. The following screen will appear showing the display settings. Contrast: This setting is used to change the contrast between the black and white areas of the image. Clear resolution of the white, black and grey scales can be obtained by correctly setting the contrast.
- Page 4 2.2 Image setting: Select “PICTURE” and press “MENU” to confirm. The following screen will appear showing the display settings. H.Position: This setting is used to move the image left and right. “－” moves the screen image left. “＋” moves the screen image right. V.Position: This setting is used to move the picture image up and down.
- Page 5 2.3 Function: Select “FUNCTION” and press “MENU” to confirm. The following screen containing settings related to image dimensions and position of the image on the screen will appear. Auto adjust: This setting is used to automatically adjust the video setup. Press “＋” or “－” to select the parameter settings.
- Page 6 Language: This setting is used to select the language of the controls. Press “＋” or “－” to select between the available options. OSD H. Pos: This setting is used to change the horizontal position of the OSD panel. Press “＋” to move the image to the right.
- Page 7 Specifications: • Panel size: 19” (48 cm) TFT LCD • Response time: 6 ms • Resolution: 1280x1024 • Brightness: 450 cd/m2 • Contrast ratio: 700:1 • Screen life span: 50.000 hours (intensive use) • Viewing angle: 170° • System: PAL/NTSC •...
- Page 8 Nedis B.V., De Tweeling 28, 5215MC, ’s-Hertogenbosch The Netherlands Tel.: 0031 73 5991055 Email: info@nedis.com Declare that product: Brand: KÖNIG ELECTRONIC Model: SEC-MON45 Description: 19” TFT/LCD MONITOR Is in conformity with the following standards:EN55022: 2006, EN55024: 1998+A1:2001+A2:2003 EN60950-1:2006 EU Directive(s) 2004/108/EC, 2006/95/EC ‘s-Hertogenbosch, 12-04-2010 Mrs.: J.
