Shimpo Instruments ST-329BL Operation Manual

ST-329BL LED Stroboscope Array
Operation Manual
Use in flammable environments is prohibited. Use in this manner may
result in fire or explosive.
Don't look directly into the LED light Source. This may result in eye in-
jury.
Don't use or store in the following environments. Direct sunshine con-
densation, dust or caustic.
Do not alter, or modify of improperly. Such action may cause damage
and void warranty.
Operate with 0-35°C (32-95°F), 35-85% RH. Use outside of this range
may alter operation of the unit.
Case may become excessively hot when used continuously for more
than 2 hours. Mount unit on a tripod or other fixed device.

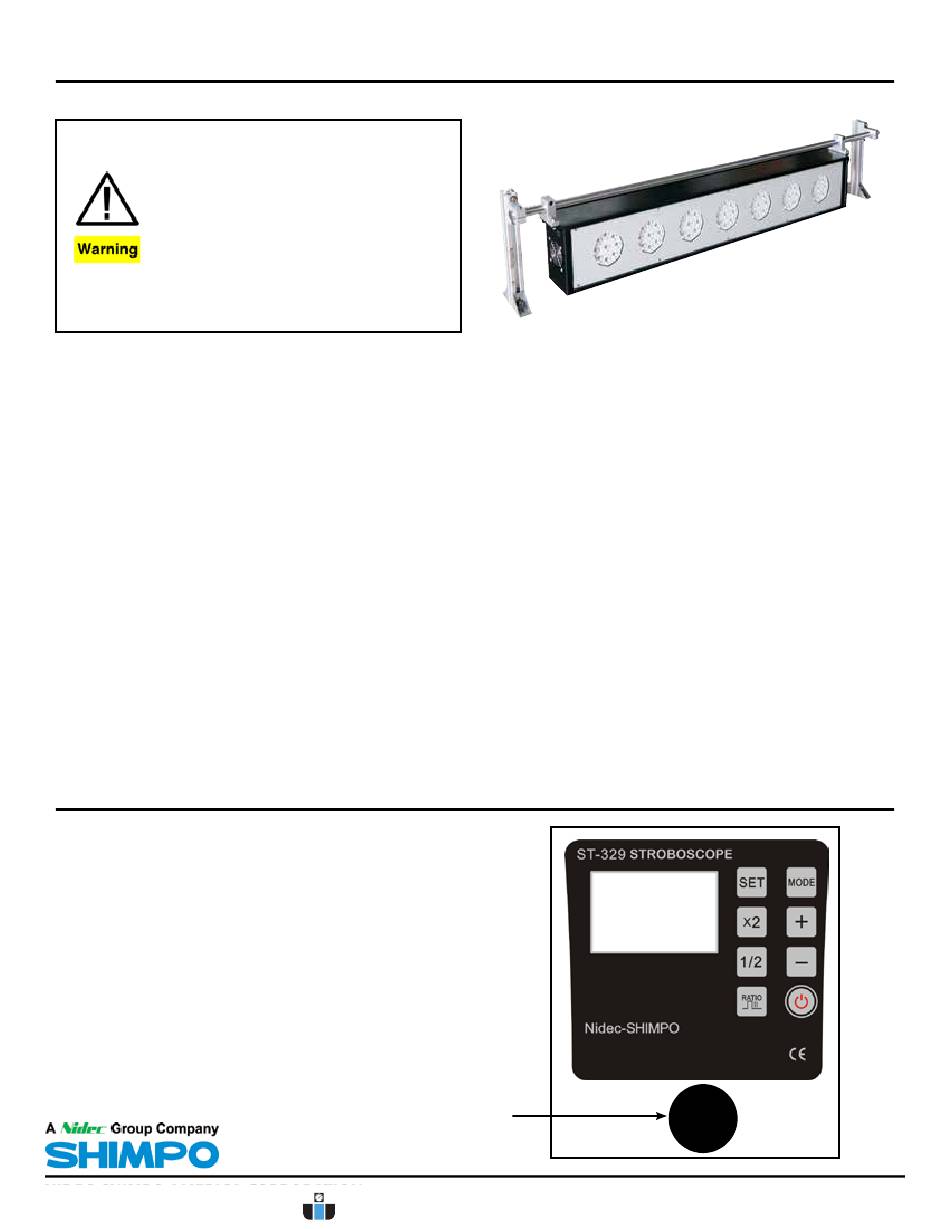

The ST-329BL is a permanent mount blacklight stroboscope
array utilizing super bright, CREE high powered LED lamps. The
ST-329BL's LED array provides a bright, stable black light over
a wide measurement range with a lifetime far exceeding xenon
lit stroboscopes. The ST-329BL arrays are available in several
standard sizes from 9.25" (235 mm) to 65" (1650 mm) in length.
Custom sizes are available upon request. The arrays are easi-
ly mountable on production equipment. An optional mounting
adapter kit is available to aid in array installation. A separate con-
trol enclosure is connected with 6.5' (2 m) cable to the array. Op-
eration is simple with the 8 button keypad and large, backlit LCD
display. Phase shift, flash duration, plus flash rate are all quickly
adjustable via the control. The unit can work off user programmed
flash frequency or from a remote sensor's signal which will auto-
matically adjust to corresponding process fluctuations.
The ST-329BL is designed for speed and frequency measure-
ments in the printing, packaging, textile, automotive, cable, medi-
cal industries in various applications.
Operation Panel Located on Control Enclosure
POWER: Power on and off.
MODE: Select mode of operation or Parameter Menu: Internal/
External/Parameter Settings
SET: Adjust Phase Shift; In Parameter Menu scroll through param-
eter settings, Store setting values.
x2: Multiplies the flash rate/frequency by a factor of 2.
1/2: Divides the flash rate/frequency by a factor of 2.
RATIO: Adjusts flash duration (flash pulse width) in Internal/Ex-
ternal modes.
"+": Advance image forward 3 degrees at a time in internal mode.
In parameter setting mode, adjusts setting values.
"-": Retard image backwards 3 degrees at a time in internal mode.
In parameter setting mode, adjusts setting values.
Dial: Set flash rate or frequency. CW: Increase flash rate/frequen-
cy. CCW: Decrease flash rate/frequency. (Turn dial quickly to
drastically change value; Turn dial slowly to change value by 1
digit.) In parameter setting mode, CW or CCW rotation chang-
es the setting value.
1.888.610.7664
SPECIFICATIONS
Flash Rate Range: 60 to 120,000 FPM
Accuracy: 0.01%±1 digit of F.S. @ 77° F (25°C)
Lamp Lifetime: Approximately 3~5 years depending on usage.
Display: Backlit LCD
Resolution: 60 ~12,000 FPM = 0.1 FPM; 12,001~120,000 FPM
= 1 FPM
Flash Duration: 0.1°- 2.5°
Phase Shift: 0-359°
Power Requirement: 100-120 VAC (Optional 220 -260 VAC
upon request).
Input Signal: 12 V Pulse Input; M-12, 3 Pin
Input Signal Range: 60-120,000 FPM
Input Pulse Width: Over 50 µs
Input Signal Flash Delay: 0-999 ms; 0-359°
Temperature Limits: 32-95°F (0-35°C)
Humidity Limits: 35 to 85% RH
Enclosure: Control - ABS; Array - ABS window & aluminum
frame
Mounting: Control: Magnetic mount to included bracket; Array:
Flanges for use with 6 mm bolts. Mounting bracket kit available
separately.
Enclosure Rating: IP65 - Control & Array
Dimensions: Length (See chart on page 6) x 6" (153 mm) x 3.5"
(90 mm)
Approvals: CE
Warranty: 1 year
Included Accessories: 6.5' (2 m) AC power cord, 9.8' (3 m)
control/array connection cable (5 pin)
www.calcert.com
15
10 20
5 25
0 30
SHIMPO INSTRUMENTS
Dial
