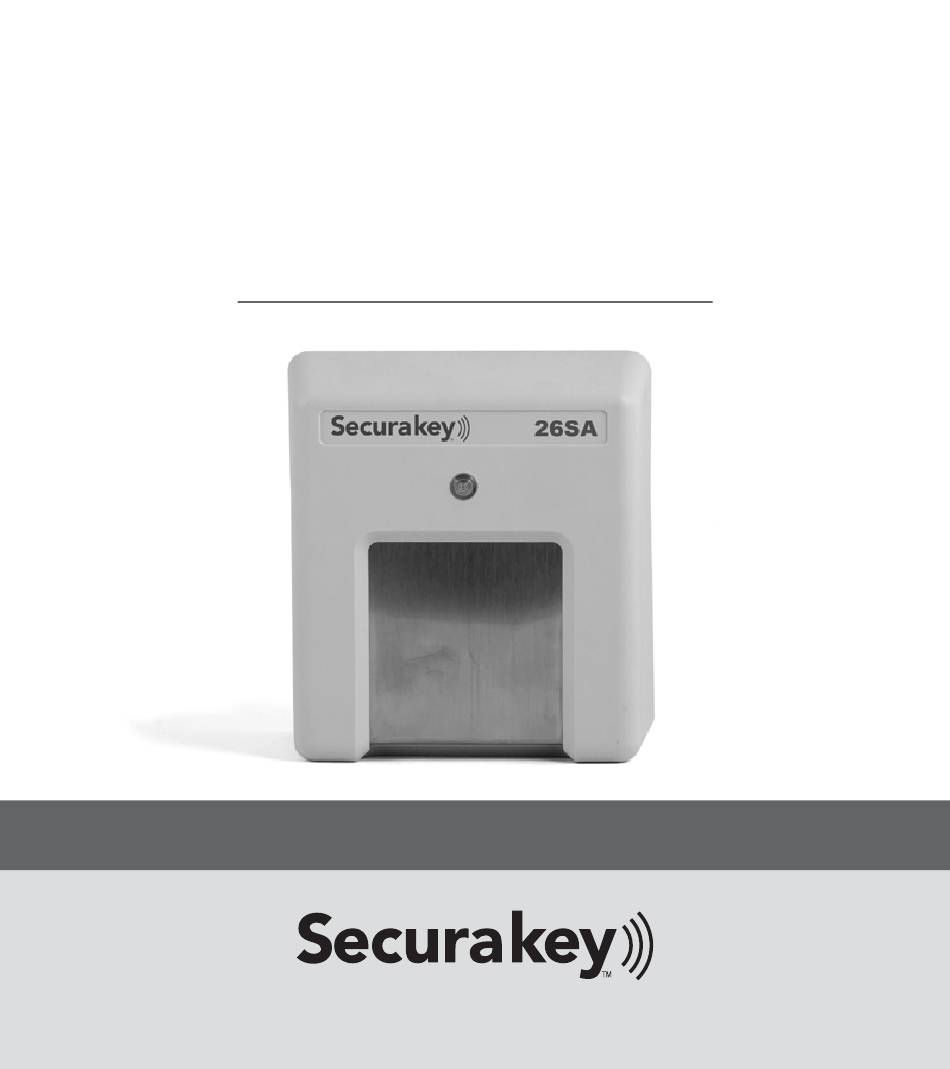

ENTRACOMP
®
26SA
with Remote Open Input
User/Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENTRACOMP 26SA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Securakey ENTRACOMP 26SA

Summary of Contents for Securakey ENTRACOMP 26SA

  • Page 1 ENTRACOMP ® 26SA with Remote Open Input User/Installation Manual...
  • Page 2 COPYRIGHT © 2007 SOUNDCRAFT INC.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ................1 SETTING THE SYSTEM (FACILITY) CODE ........3 ® PROGRAMMING THE ENTRACOMP 26SA ........ 5 VALIDATING A SINGLE CARD ........5 VALIDATING A BLOCK OF CARDS ......6 VOIDING CARDS ............7 SETTING THE LATCH TIMER ........7 ACTIVE/INACTIVE ............
  • Page 4 FLUSH MOUNT TO EXISTING 5S BOX ..... 20 FLUSH MOUNT WITH 5S BOX ........21 FLUSH MOUNT WITHOUT 5S BOX ......22 METAL SURFACE HOUSING TO SINGLE GANG ELECTRICAL BOX ..........25 METAL SURFACE HOUSING WITHOUT ELECTRICAL BOX ..........25 METAL SURFACE HOUSING WITH POST ADAPTER .............

  • Page 5: Introduction

    INTRODUCTION ® The ENTRACOMP 26SA is a stand alone access control system that will control access to a passageway for up to 65,503 individuals. ® There are two kinds of cards used with the ENTRACOMP 26SA, access cards and program cards. Access cards are used by individuals to gain access to the passageway.
  • Page 6 “0” ZERO “1” “2” “3” THREE “4” FOUR “5” FIVE “6” “7” SEVEN “8” EIGHT “9” NINE “VALID” VALIDATE “VOID” VOID OR CANCEL “ ” THRU “SET TIMER” SET LATCH TIMER OR ANTIPASSBACK TIMER “ACTIVE/INACTIVE” ACTIVATE OR INACTIVATE SYSTEM Secura Key • 2...

  • Page 7: Setting The System (Facility) Code

    SETTING THE SYSTEM (FACILITY) CODE When received, the correct system code may already be set. Should it become necessary to reset the system code, remove the unit from the wall to gain access to the reset button (see figure 1). Momentarily depress the reset button.
  • Page 8 FIGURE 1 Secura Key • 4...

  • Page 9: Programming The Entracomp ® 26Sa

    ® PROGRAMMING THE ENTRACOMP 26SA ® Functions of the ENTRACOMP 26SA are programmed by placing the ® program cards on the TOUCH CARD reader plate in a proper sequence. ® It is helpful to think of placing a program card on the TOUCH CARD reader plate as depressing a key on a keyboard or key pad.

  • Page 10: Validating A Block Of Cards

    Example: Validate card number 100. ® Place the “1” card on the TOUCH CARD reader plate, remove it and place ® the “0” card on the TOUCH CARD reader plate, remove it and place again ® the “0” card on the TOUCH CARD reader plate, remove it and place the ®...

  • Page 11: Voiding Cards

    VOIDING CARDS. Cards may also be voided (cancelled) either singly or in blocks. Follow the instructions for validating above, replacing the “VALID” card with the “VOID” card. SETTING THE LATCH TIMER. The output from the relay may be set to any number of seconds from 1 to 99.

  • Page 12: Door Unlock Mode

    DOOR UNLOCK MODE. The relay may be set to stay latched (door unlocked) during periods when access control is unwanted. While in the “DOOR UNLOCK” mode, the relay stays activated, and the LED indicator will flash green approximately once every second. The unit may not be programmed with the programming deck, nor will it recognize access cards while in the “DOOR UNLOCK”...

  • Page 13: Antipassback Waiting Time

    To deactivate the Timed Antipassback feature, place the “0” card on the ® TOUCH CARD reader plate and remove it. Then place the “*” card on ® the TOUCH CARD reader place and remove it. Then place the “SET ® TIMER”...

  • Page 14: Relay Configuration

    RELAY CONFIGURATION. The solid-state relay can be set to be Normally Closed, Normally Open or to operate with the SecuRelay for increased vandal resistance. Selections are: 6. Normally Open (Factory default) 7. Normally Closed 8. SecuRelay™ Option. The default mode is Normally Open (NO). To place the relay in the Normally Open (NO) mode, place the “...

  • Page 15: Installation

    INSTALLATION WIRING INSTRUCTIONS ® The ENTRACOMP 26SA is provided with a connector and 7 wire leads (See Figure 1). Using appropriate wire nuts or crimp on connectors, wire the unit as per the table below. Be sure unused wires are insulated to avoid shorting. In addition to the wiring below, AN EARTH GROUND IS REQUIRED.
  • Page 16 Secura Key • 12...
  • Page 17 Secura Key • 13...

  • Page 18: Remote Open

    REMOTE OPEN (REX). Connect the Brown and orange wires to any Normally Open switch. Closing this circuit will activate the Latch Relay for the number of seconds you have selected when you set the Latch Timer. SecuRelay . The SecuRelay from Secura Key may be purchased ®...

  • Page 19: Installation Instructions

    INSTALLATION INSTRUCTIONS SURFACE HOUSING TO SINGLE GANG ELECTRICAL BOX (See Figure 4) 1. For exterior walls, apply 1/4 inch bead of silicone sealant around rear perimeter surface of mounting bracket gasket. Be sure there is sufficient sealant to make a good seal between gasket and wall.

  • Page 20: Surface Housing With Post Mount

    2. Mount plate to wall using appropriate fasteners. Use at least four of six holes provided. 3. Connect power and control lines to wire leads provided as per the wiring instructions. 4. Plug connector into reader board. ® 5. Place ENTRACOMP 26SA housing against mounting plate, top edge first, centering housing on retaining tabs.

  • Page 21: Surface Housing With Flange Mount Adapter

    4. Connect power and control lines to wire leads provided as per the wiring instructions. 5. Plug connector into reader board. ® 6. Place ENTRACOMP 26SA housing against mounting plate, top edge first, centering housing on retaining tabs. Secure housing to plate at bottom using one 6-32 x 3/8 security screw provided or equivalent.
  • Page 22 FIGURE 4 FIGURE 5 Secura Key • 18...
  • Page 23 FIGURE 6 FIGURE 7 Secura Key • 19...

  • Page 24: Flush Mount To Existing 5S Box

    FLUSH MOUNT TO EXISTING 5S BOX (See Figure 8) 1. Use wall cutout template provided. Align template over 5S box. (When running wires to the 5S box, don’t use center top hole as it will interfere with housing lock.) Transfer appropriate cutout corner locations of clearance hole for the housing lock to the wall with pointed instrument.

  • Page 25: Flush Mount With 5S Box

    FLUSH MOUNT WITH 5S BOX (See Figure 9) 1. Use the wall cutout template provided. Locate template on the wall. Transfer appropriate cutout corner locations to the wall with a pointed instrument. 2. Draw lines from point to point, outlining cutout. 3.

  • Page 26: Flush Mount Without 5S Box

    8. Place reader and faceplate assembly against the mounting plate. Faceplate will hook onto mounting plate by pushing plate in and then sliding it down. 9. Secure faceplate to mounting plate using the two 4-40 screws. 10. Place faceplate door into door opening and rotate key 90° clockwise.
  • Page 27 6. Be sure all appropriate wiring has been connected to the terminal board and then plug the terminal board cable into the socket on the circuit board (see wiring instructions). 7. Place reader and faceplate assembly against the mounting plate. Faceplate will hook onto mounting plate by pushing plate in and then sliding it down.
  • Page 28 FIGURE 9 FIGURE 10 Secura Key • 24...

  • Page 29: Metal Surface Housing To Single Gang Electrical Box

    METAL SURFACE HOUSING TO SINGLE GANG ELECTRICAL BOX (Figure 11) 1. For exterior walls, apply 1/4 inch bead of silicone sealant around rear perimeter surface of mounting bracket gasket. Be sure there is sufficient sealant to make a good seal between gasket and wall.

  • Page 30: Metal Surface Housing With Post Adapter

    2. Mount plate to wall using appropriate fasteners. Use at least four of six holes provided. 3. Connect power and control lines to wire leads provided as per the wiring instructions. 4. Plug connector into reader board. ® 5. Place ENTRACOMP 26SA housing over mounting bracket.

  • Page 31: Metal Surface Housing With Flange Adapter

    4. Connect power and control lines to wire leads provided as per the wiring instructions. 5. Plug connector into reader board. ® 6. Place ENTRACOMP 26SA housing over mounting bracket. Push housing in against wall. Secure housing to mounting bracket in door opening using two 6-32 x 3/8 screws provided.
  • Page 32 FIGURE 11 FIGURE 12 Secura Key • 28...
  • Page 33 FIGURE 13 FIGURE 14 Secura Key • 29...

  • Page 34: Specifications

    SPECIFICATIONS PHYSICAL Surface Housing Flush Housing Metal Housing Depth 2.25 in (5.72 cm) 1.50 in (3.8 cm) 1.75 in (4.45 cm) Width 4.00 in (10.16 cm) 5.50 in (13.97 cm) 4.00 in (10.20 cm) Height 4.60 in (11.70 cm) 7.63 in (19.38 cm) 5.62 in (14.30 cm) Weight 20 oz (0.57 kg)
  • Page 35 WARRANTY (U.S. and Canadian) “Secura Key products are warranted against defects in materials and workmanship for a period of 2 years from the date of purchase. Secura Key will replace any Secura Key manufactured product, except cards or tags, returned to us freight prepaid within the warranty period. This warranty does not include freight, taxes, duties, or installation expenses.
  • Page 36 ENTRACOMP 26SA ® User/Installation Manual 20301 Nordhoff Street • Chatsworth, CA 91311 Phone: 818-882-0020 • Fax: 818-882-7052 TOLL FREE: 800-891-0020 mail@securakey.com • securakey.com...
