Merz UHRO-4 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
USB-I/O Manual
UHRO-4 - DIN-Rail-Version
UPRO-4 - Board-Version
4 photo couple input / 4 relay output channels
DECISION-COMPUTER Jürgen Merz e.K.
Lengericher Str. 21
49536 Lienen
Telefon +49 (0)5483-77002
Telefax +49 (0)5483-77003
http://www.decision-computer.de

Advertisement

loading
Need help?

Need help?

Do you have a question about the UHRO-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Merz UHRO-4

Summary of Contents for Merz UHRO-4

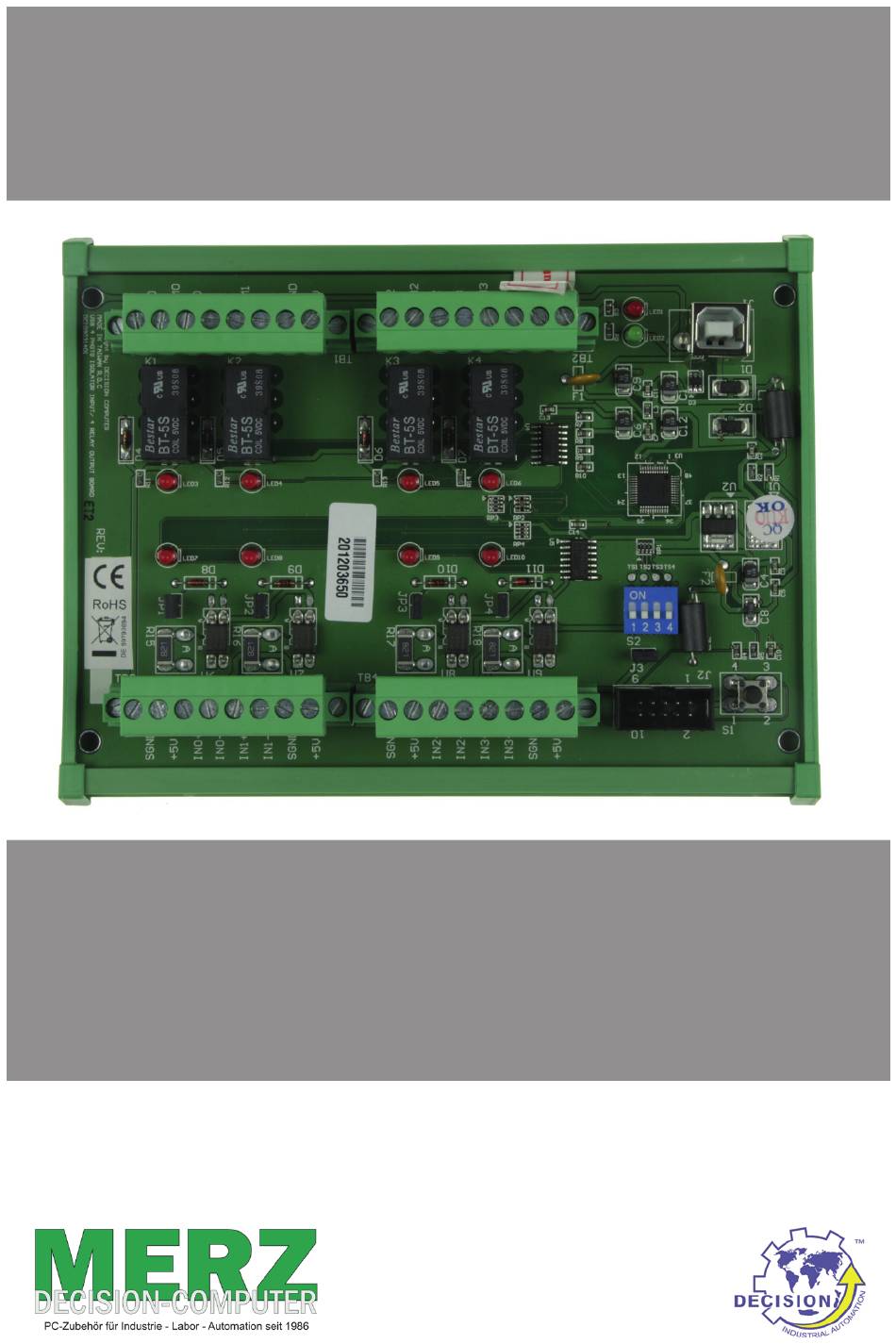

  • Page 1 USB-I/O Manual UHRO-4 - DIN-Rail-Version UPRO-4 - Board-Version 4 photo couple input / 4 relay output channels DECISION-COMPUTER Jürgen Merz e.K. Lengericher Str. 21 49536 Lienen Telefon +49 (0)5483-77002 Telefax +49 (0)5483-77003 http://www.decision-computer.de...
  • Page 2 Daten Product Code: Features: AUSB16P/R USB 16 PHOTO ISO./ RELAY BOARD For direct DIN-Rail mounting UHRO-4 - DIN-Rail-version Also as board without DIN Rail adapter available UPRO-4 - Board-version High Speed 8051 μC Core Bus: USB 2.0 USB 2.0 Function Controller...
  • Page 3 J1 USB Connection USB-B A suitable cable is included +5 VDC (USB VBUS POWER) Data - Data + SGND Signal Ground USB wiring is very sensitive against EMI errors (mainly sparking when opening contacts). The U-EMI-1 Kit is included with the DIN rail version and includes two Würth folded cores for the USB data cable and a Ferrite sleeve for the power cable.
  • Page 4 S1 Reset Button To reset the "hanging" USB-Module S2 USB ID Set different ID for each board Card ID Multiple Boards Connect When you need to connect more than 3 boards on one PC, please make sure the following below 1.
  • Page 5 ISOLATOR Input Ports TB 3/4 Signal Description TB 3 Signal Description TB 4 SGND Signal Ground SGND Signal Ground IN0+ Opto-Isolator Ch. 00 + Input IND+ Opto-Isolator Ch. 02 + Input IN0- Opto-Isolator Ch. 00 - Input IND- Opto-Isolator Ch. 02 - Input IN0+ Opto-Isolator Ch.
  • Page 6 Relay-Output TB 1/2 Signal Description - TB1 Signal Description - TB2 NC 0 Relay Ch. 00 - Output NC 2 Relay Ch. 02 - Output COM 0 Relay Ch. 00 - Output COM 2 Relay Ch. 02 - Output NO 0 Relay Ch.

  • Page 7: Installation

    Installation The decision-computer USB devices use the HID (human interface device). The HID belongs to the generic device class is integrated in the operating system. If a new HID device is connected, no driver installation is required. The functions for access and control of HID hid.dll you can find in the Windows System32 folder.
  • Page 8 USB test Program.exe is a diagnostic tool to test USB devices on Windows/XP. The USB test software can be found on the decision-Studio CD. The examples and drivers be developed continuously. See the latest on the decision-computer-Merz „Service CD“. An important way to get more informations you find at http://www.usb-industrial.com Software support on the short way: http://www.usb-industrial.com/support.html...
  • Page 9 USB by LAN or Wireless The remote control of Decision USB products by LAN or wireless with a remote-PC is very simple with a multi port USB Server Because no driver should be installed to the installation and programming is very easy. Under Windows, are the external USB I/O directly in the Device Manager and can be connect or control such as in the original host PC.

  • Page 13: Warranty Information

    A.1 Copyright Copyright DECISION COMPUTER INTERNATIONAL CO., LTD. All rights reserved. No part of SmartLab software and manual may be produced, transmitted, transcribed, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of DECISION COMPUTER INTERNATIONAL CO., LTD.

This manual is also suitable for:

Upro-4
