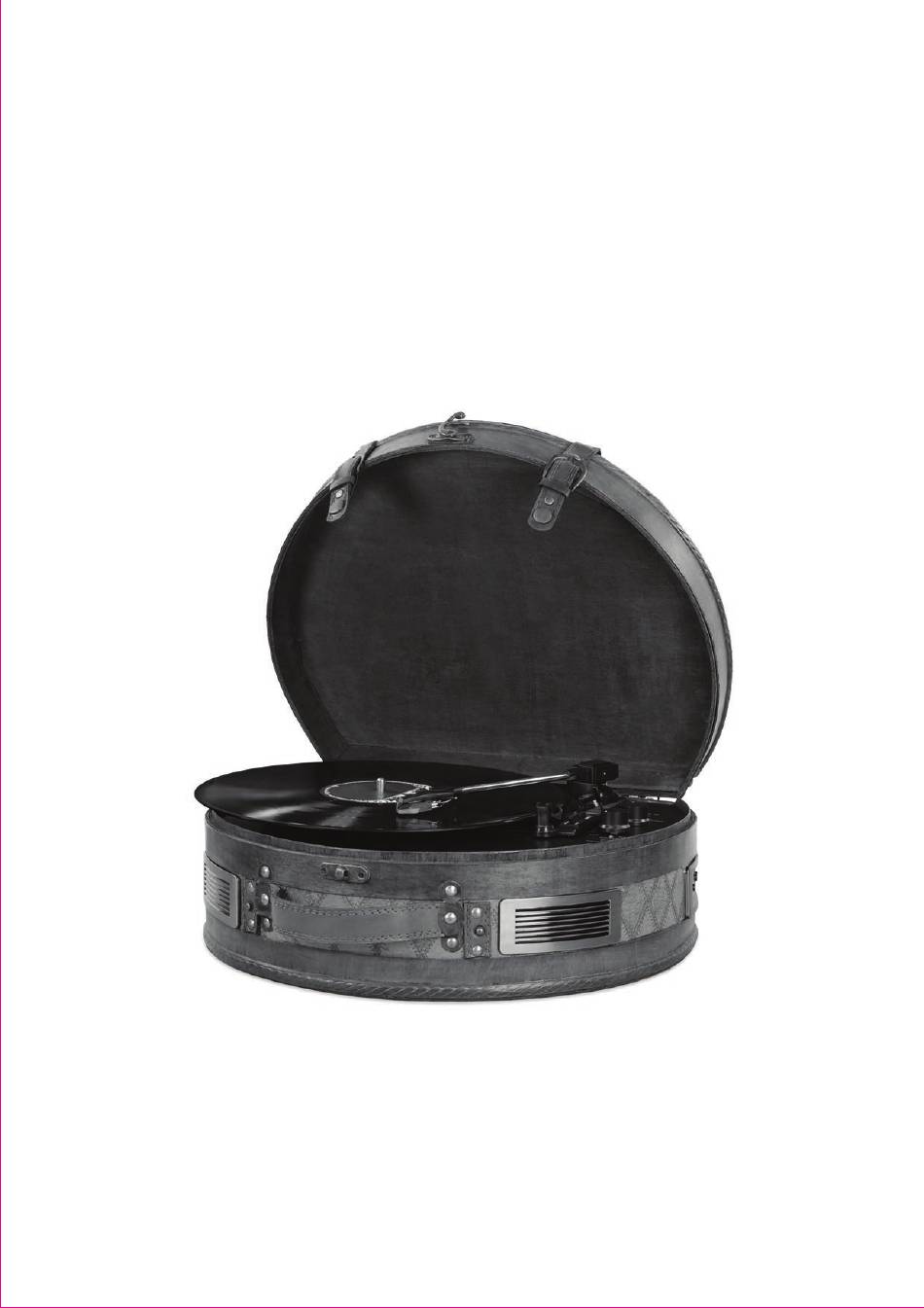

- Page 1 3-Speed Vintage Bluetooth Turntable Model: ST14097-1 Instruction Manual PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE AND KEEP IT FOR FUTURE REFERENCE.
- Page 2 CONTENTS SAFETY INSTRUCTIONS ................2 SPECIFICATIONS .................... 3 TURNTABLE LAYOUT..................4 TURNTABLE OPERATION ................5 POWER SUPPLY ..................5 BASIC OPERATION ..................5 TURNTABLE NEEDLE REPLACEMENT............. 5 BLUETOOTH OPERATION ................6 AUX-IN OPERATION..................6 HEADPHONE OPERATION................6 FCC STATEMENT .................... 6 CALIFORNIA PROP 65 WARNING..............
- Page 3 SAFETY INSTRUCTIONS 1. Read these instructions - All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions - The safety and operating instructions should be retained for future reference. 3. Heed all warnings - All warnings on the appliance and in the operating instructions should be adhered to.
- Page 4 This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead within an CAUTION: TO PREVENT The exclamation point within an equilateral equilateral triangle is intended to alert the user...
- Page 5 TURNTABLE LAYOUT TURNTABLE PLATTER TURNTABLE SHAFT 45 RPM ADAPTOR LIFT LEVER TONE ARM CLIP LINE-IN JACK SPEED SELECTION SWITCH FUNCTION (BT (BLUETOOTH), LINE-IN, PHONO) KNOB AUTO AND MANUAL STOP SELECTION SWITCH TONE ARM POWER ON/OFF AND VOLUME CONTROL KNOB POWER/BLUETOOTH LIGHT INDICATOR STYLUS CARTRIDGE HEADPHONE JACK BUCKLE &...
- Page 6 TURNTABLE OPERATION POWER SUPPLY Insert the adaptor plug into the DC IN jack on the rear of the unit, then connect the AC/DC adaptor (5V, 1A / AC100-240V, 50-60Hz) to a AC/DC wall outlet. BASIC OPERATION 1. Lift the BUCKLE on the front of the turntable and open the lid. 2.
- Page 7 BLUETOOTH OPERATION An external device with Bluetooth Connectivity can be wirelessly connected to this apparatus using the Bluetooth function. 1. Power ON the unit by turning the VOLUME CONTROL KNOB clockwise. The red LED will light to show that the turntable is turned ON. 2.
- Page 8 FCC STATEMENT Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules.
