1. Introduction
PN65OEV1 combines in a single package a Near Field Communication (NFC)
controller . It is optimized for low power consumption with fully host controllable
power states.
2. Features
Host Interface: UART
UART Baud Rates: 9600、28800、115200、230400、460800
Transmission modes: ISO/IEC 14443 A、ISO/IEC 14443 B、MIFARE、Sony
FeliCa
Operating ambient Temperature: -25
Input Voltage: +1.8V
RF Clock: 13.56M Hz
Oscillator: 27.12M Hz
PCB:4 Layer
Weight: Approx. 3g

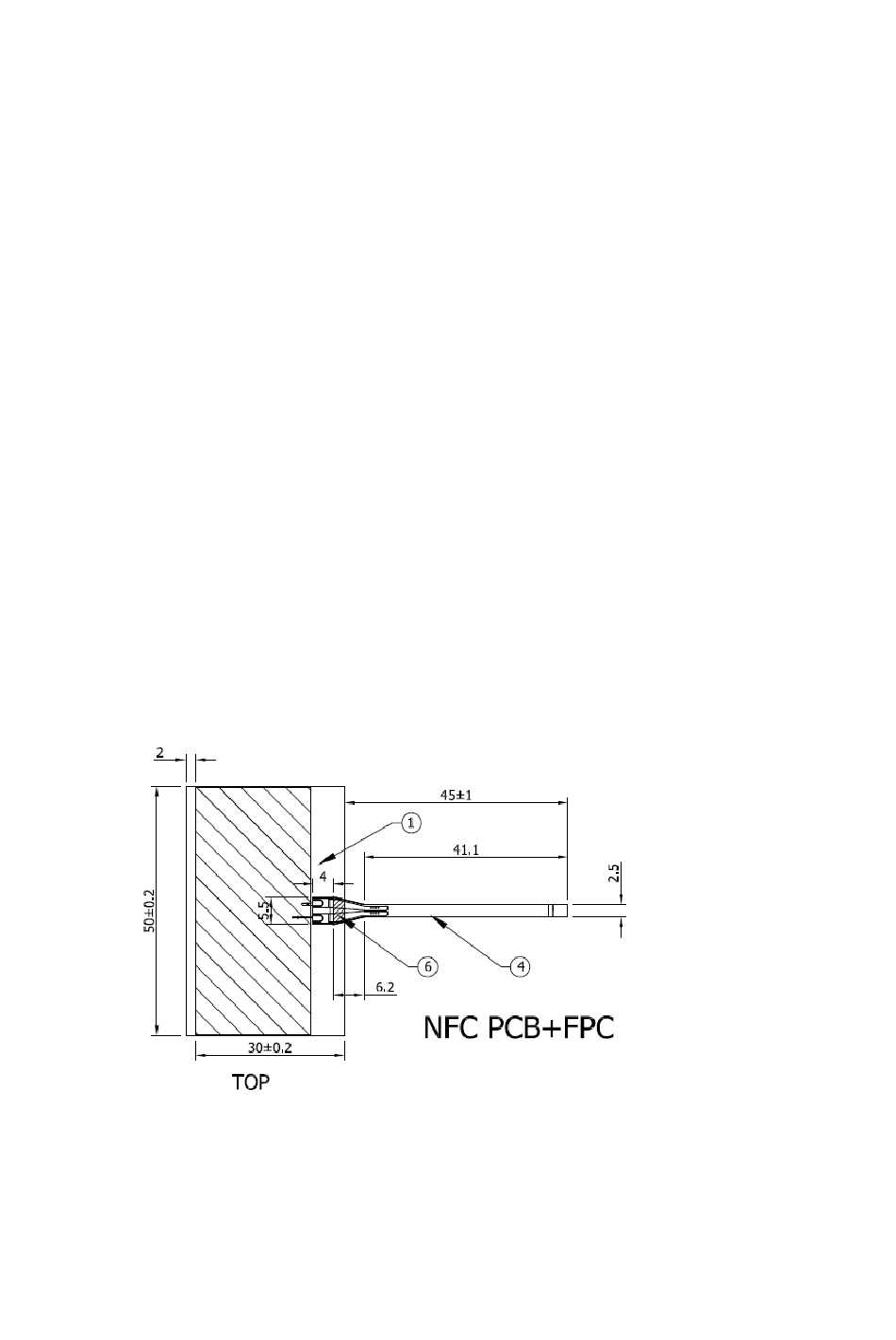

3. NFC antenna outline
4. Installing the device drivers
To install the device driver in your computer:
Step1. Run NXP_NFC_Drover_Pakcage
VP-NFC
。
。
C ~+85
C
Advertisement
Summary of Contents for Pegatron VP-NFC
- Page 1 VP-NFC 1. Introduction PN65OEV1 combines in a single package a Near Field Communication (NFC) controller . It is optimized for low power consumption with fully host controllable power states. 2. Features Host Interface: UART UART Baud Rates: 9600、28800、115200、230400、460800 Transmission modes: ISO/IEC 14443 A、ISO/IEC 14443 B、MIFARE、Sony FeliCa 。...
- Page 2 Step2. Choose “Next”...
- Page 3 Step3. Choose “Next” Step4. Choose “Install”...
- Page 4 Step5. Choose “Finsh” Install success...
- Page 5 5. NFC use cases Reader mode Peer-To-Peer 6. Antenna Detecting Range 7. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 6 - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
- Page 7 This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID:VUIVPNFC”.
-
Page 8: Important Note
This device is intended only for OEM integrators under the following conditions: (For module device use) 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. - Page 9 peut pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte au Canada.
- Page 10 End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains IC:7582A-VPNFC”.
